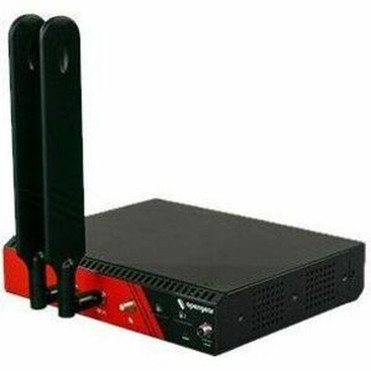

Opengear OM1208-8E-L Device Server - DRAM - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 8 x Network (RJ-45) - 4 x USB - (NP-OM1208-L)

Marketing Information:

Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.

The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.

Features

• 8 Serial and 8 Ethernet port combinations
• Global LTE interface (optional)
• x86 platform; embedded physical security
• Python runtime, Docker container support

Connectivity Technology: Wired

Processor Manufacturer: AMD

Processor Speed: 1.40 GHz

Memory Technology: DRAM

Maximum Memory Supported: 4 GB

Media Type Supported: Twisted Pair,Optical Fiber

Total Number of Expansion Slots: 2

Ethernet Technology: Gigabit Ethernet

Network Standard: 10/100/1000Base-T,1000Base-X

Network (RJ-45): Yes

USB: Yes

Serial Port: Yes

Management Port: Yes

Total Number of Network Ports: 8

Number of Network (RJ-45) Ports: 8

Number of USB Ports: 4

Number of Serial Ports: 8

Input Voltage: 120 V AC,230 V AC

Power Consumption: 25 W

Form Factor: Rack-mountable,Desktop

Height: 1.65" (42 mm)

Width: 8.66" (220 mm)

Depth: 6.69" (170 mm)

Weight (Approximate): 2.20 lb (1000 g)

Package Contents:

• OM1208-8E-L Device Server
• 1 x Rack Mount Kit
• 1 x DB9F-RJ45 Crossover
• 4 x Rubber Feet
• 1 x 12V Global Power Supply
• Quick Start Flyer
• 2 x Cellular Antennas
• 1 x Cellular Antenna Extender with Magnetic base

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 4 Year
