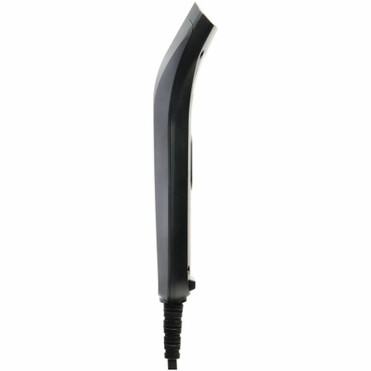

Opticon C-41S CCD Linear Imager - Cable Connectivity - 300 scan/s - 23.62" (599.95 mm) Scan Distance - 1D - LED - CCD - Linear - USB - (C41SBU1-00)
Write a Review
Opticon
Opticon C-41S CCD Linear Imager - Cable Connectivity - 300 scan/s - 23.62" (599.95 mm) Scan Distance - 1D - LED - CCD - Linear - USB - (C41SBU1-00)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- AN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 Databar (RSS) (excl. stacked)
- IATA
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBN-ISSM-ISSN
- Matrix 2 of 5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
- Chinese Post
- Korean Postal Authority Code
- : 1.5 m / 5 ft drop onto concrete surface
- C-41S CCD Linear Imager
- USB Cable
- Power Supply
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D:
Postal Code:
Light Source: LED
Image Sensor Type: CCD
Scan Rate: 300 scan/s
Scan Mode: Trigger
Scan Pattern: Linear
Scanning Distance: 23.62" (599.95 mm)
Number of Keys: 1
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 50°
Maximum Ambient Light: 10000 lux
Drop Specification:
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 39 mil (0.99 mm)
Features: Notification LED,Vibration,Ergonomic Design,Scan Button
Host Interface: USB
Power Supply Included: Yes
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Durability: Dust Resistant,Water Resistant
Height: 1.33" (33.80 mm)
Width: 2.20" (55.90 mm)
Depth: 6.06" (154 mm)
Weight (Approximate): 1.94 oz (55 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Healthcare,Retail,Self-checkout,Commercial Service,Logistics,Ticketing,Hospitality,Manufacturing,Warehouse,Transportation
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 300 scan/s
- LED aimer is a perfect choice for patient-facing applications
- Perfect for applications that require direct association with a workstation or a notebook
[custom-specifications]
| Specifications | |
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | C41SBU1-00 |
| Manufacturer Website Address | http://www.opticon.com |
| Brand Name | Opticon |
| Product Model | C-41S |
| Product Name | C-41S CCD Linear Imager |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
Postal Code:
|
| Light Source | LED |
| Image Sensor Type | CCD |
| Scan Rate | 300 scan/s |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanning Distance | 23.62" (599.95 mm) |
| Number of Keys | 1 |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 50° |
| Maximum Ambient Light | 10000 lux |
| Drop Specification |
|
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 39 mil (0.99 mm) |
| Features | Notification LED,Vibration,Ergonomic Design,Scan Button |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Power Supply Included | Yes |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Dust Resistant,Water Resistant |
| Height | 1.33" (33.80 mm) |
| Width | 2.20" (55.90 mm) |
| Depth | 6.06" (154 mm) |
| Weight (Approximate) | 1.94 oz (55 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Healthcare,Retail,Self-checkout,Commercial Service,Logistics,Ticketing,Hospitality,Manufacturing,Warehouse,Transportation |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
2 Year
