Overview

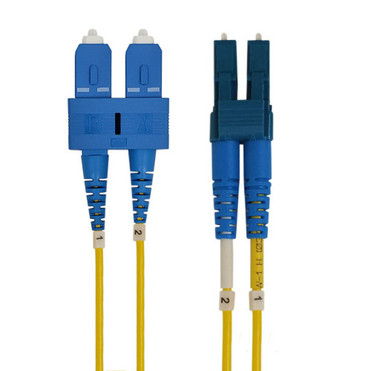

This 9 micron (OS2) fiber optic cable is made with Corning SMF28e Ultra glass fiber, which exceeds ITU-T G.657.A1 and remains compatible and fully compliant with ITU-T G.652.D. It has 1.6mm jacket and rated plenum (OFNP). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Ultra-Thin 1.6mm Diameter Jacket
Designed with an ultra-thin 1.6mm jacket for high density applications, it is 22% thinner than a regular cable.
|
Short Body Boots
20mm short body boots allow for a tighter bend radius. |
Premium Cables Made with Corning® Glass Fibers
All of our singlemode fiber cables are made with Corning® (SMF28e Ultra) glass for optimal performance and quality. |
Individually Serialized Cables
Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation. |
Plenum OFNP Rated Jacket
These cables are OFNP rated for use in plenum air spaces such as overhead and below floor cable runs in a data center.
|
100% Fully IL & RL Tested
Our singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report.
|
Ceramic Ferrule
All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss. |
3D Interferometer Tested
Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.
|
Certifications
Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards. |
Lifetime Warranty
Our cables come with a limited lifetime warranty against manufacturing defects. |
Application
Specifications
| Physical Characteristics |
| Color |
Yellow |
| Cable Diameter |
1.6mm |
| Fiber Size |
9/125 micron |
| Fiber Type |
Singlemode |
| Glass Manufacturer |
Corning Glass (SMF28e Ultra) |
| Connector Ferrules |
Ceramic |
| Fiber Classification |
OS2 |
| Jacket Rating |
Plenum (OFNP) |
| Operating Temperature |
-10°C ~ +70°C |
|
Connector(s)
|
| Connector A |
LC/UPC Duplex Male |
| Connector B |
SC/UPC Duplex Male |
| Performance |
| Insertion Loss |
<0.3db @ 1300nm |
| Return Loss |
?55db |
| Interferometer Tested |
100% Tested |
| Environmental |
| RoHS |
Yes |
| Conflict Minerals |
Yes |
| Packaging Information |
| Warranty |
Limited Lifetime |
| Package Quantity |
1 |
| 1.5ft - 0.5m |
3ft - 1m |
5ft - 1.5m |
6ft - 2m |
10ft - 3m |
13ft - 4m |
15ft - 5m |
20ft - 6m |
23ft - 7m |
26ft - 8m |
30ft - 10m |
40ft - 12m |
50ft - 15m |
65ft - 20m |
80ft - 25m |
100ft - 30m |
115ft - 35m |
131ft - 40m |
148ft - 45m |
164ft - 50m |
| 0.03 lbs |
0.04 lbs |
0.04 lbs |
0.05 lbs |
0.07 lbs |
0.08 lbs |
0.10 lbs |
0.12 lbs |
0.15 lbs |
0.15 lbs |
0.19 lbs |
0.22 lbs |
0.26 lbs |
0.39 lbs |
0.43 lbs |
0.52 lbs |
0.59 lbs |
0.70 lbs |
0.85 lbs |
1.03 lbs |
Spec Sheets
Download attachment :: FO-209A-xxP
