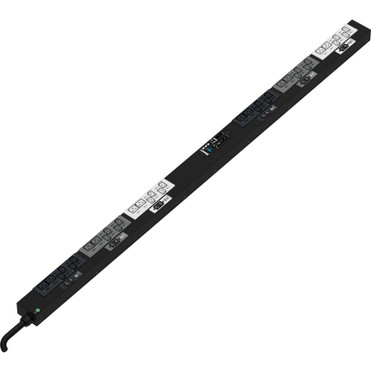

Panduit P36G06M Monitored & Switched Per Outlet PDU - Monitored - NEMA L22-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 415 V AC - 0U (P36G06M)
Write a Review
Panduit
Panduit P36G06M Monitored & Switched Per Outlet PDU - Monitored - NEMA L22-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 415 V AC - 0U (P36G06M)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- LDAP
- SNMP v3
- TLS
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Type: NEMA L22-30P
Receptacle Type: IEC 60320 C13,IEC 60320 C19
Receptacle Detail: 30 x IEC 60320 C13,6 x IEC 60320 C19
Protection Type: Overload Protection,Overcurrent Protection,Circuit Protection
Locking Receptacles: Cable Retention Bracket
Input Voltage: 415 V AC
Output Voltage: 240 V AC
Power Rating (VA): 17.30 kVA
Power Rating (Watt): 17.30 kW
Input Current: 30 A
Management:
Mounting Orientation: Vertical/Toolless
Mount Type: Rack-mountable
Rack Height: 0U
Width: 3.30" (83.82 mm)
Depth: 2.10" (53.34 mm)
Length: 68.90" (1750.06 mm)
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- PDU allows power to be more efficiently distributed and controlled
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily
[custom-specifications]
| Specifications | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36G06M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Model | G5 |
| Product Name | P36G06M Monitored & Switched Per Outlet PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L22-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Protection Type | Overload Protection,Overcurrent Protection,Circuit Protection |
| Locking Receptacles | Cable Retention Bracket |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 30 A |
| Management | |
| Management |
|
| Physical Characteristics | |
| Mounting Orientation | Vertical/Toolless |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 3.30" (83.82 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.06 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
