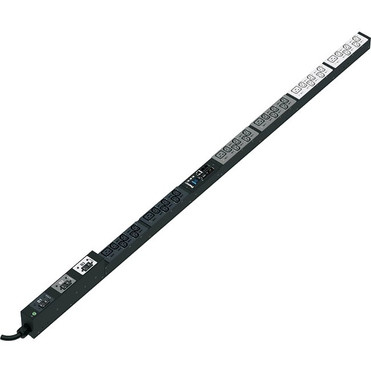

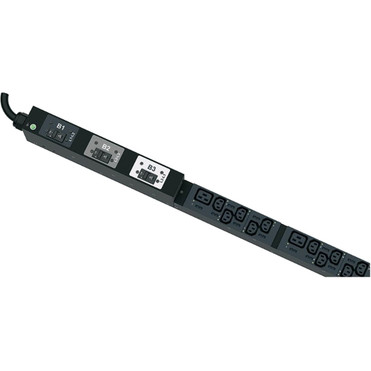

Panduit P36G22M Vertical Intelligent Power Distribution Unit - Monitored - NEMA L15-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 (P36G22M)
Write a Review
Panduit
Panduit P36G22M Vertical Intelligent Power Distribution Unit - Monitored - NEMA L15-30P - 30 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 (P36G22M)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA L15-30P
Receptacle Type: IEC 60320 C13,IEC 60320 C19
Receptacle Detail: 30 x IEC 60320 C13,6 x IEC 60320 C19
Protection Type: Overload Protection,Double Pole
Input Voltage: 230 V AC
Output Voltage: 208 V AC
Output Voltage Range: 120 V AC - 240 V AC
Power Rating (VA): 8.60 kVA
Input Current: 30 A
Remote Outlet Switching: Yes
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Height: 68.90" (1750.06 mm)
Width: 2.05" (52.07 mm)
Depth: 2.10" (53.34 mm)
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year
- PDU provides active metering enabling energy optimization and circuit protection
- Before critical input source become overloaded always be warned with monitored PDUs
[custom-specifications]
| Specifications | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36G22M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Model | P36G22M |
| Product Name | P36G22M Vertical Intelligent Power Distribution Unit |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L15-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Protection Type | Overload Protection,Double Pole |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Power Rating (VA) | 8.60 kVA |
| Input Current | 30 A |
| Management | |
| Remote Outlet Switching | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 68.90" (1750.06 mm) |
| Width | 2.05" (52.07 mm) |
| Depth | 2.10" (53.34 mm) |
| Miscellaneous | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
