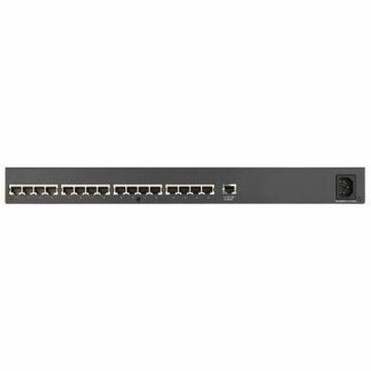

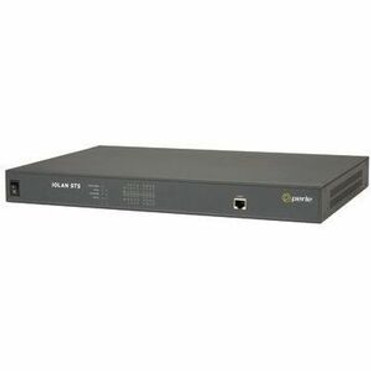

Perle IOLAN STS Rack Serial to Ethernet Terminal Server - 64 MB - Twisted Pair x Network (RJ-45) - 16 x Serial Port - - Gigabit - Port (04030442)

Marketing Information:

Engineers and Project Managers that require a cost effective serial RS232-to-Ethernet 1U rack solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STS Rack. Having the highest performance processor available along with Perle's unique TrueSerial™ technology, the IOLAN STS Rack will provide the most authentic serial connections across Ethernet.

• IOLAN STS Terminal Servers are ideal forEngineers and Project Managers requiring a high performance serial to Ethernet interface for 4 to 24 serial RS232 based devices. Connect to serial based applications over Ethernet
• IT Professionals requiring a cost-effective terminal server or serial console server for out of band management of IT equipment located in smaller data centers or remote sites

Why IOLAN STS Terminal Servers are the preferred choice:

• High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
• Next Generation IP support (IPv6) for investment protection and network compatibility
• TrueSerial™ packet technology - the most authentic serial connections across Ethernet ensures serial protocol integrity
• Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
• EasyPort Web- Access equipment serial console ports by using your java-enabled Internet browser
• TruePort- Perle's com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
• Clustering- Provides a single view of all out of band console ports. Ideal for large data centers
• Dynamic DNS- Easy console management access from anywhere on the Internet 4, 8, 16 or 24 serial RS232 on RJ45 Ports
• Intelligent Power cycling of equipment with Perle Remote Power Switches
• Java-free browser access to remote serial console ports via Telnet and SSH
• Lifetime warranty - best investment protection available

Processor Speed: 400 MHz

Standard Memory: 64 MB

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Standard: 10/100/1000Base-T

Network (RJ-45): Yes

Serial Port: Yes

Management Port: Yes

Number of Serial Ports: 16

Input Voltage: 120 V AC,230 V AC

Power Consumption: 12 W

Form Factor: Rack-mountable,DIN Rail Mountable

Height: 1.75" (44.45 mm)

Width: 17.10" (434.34 mm)

Depth: 10.38" (263.65 mm)

Weight (Approximate): 3.10 kg

Package Contents:

• IOLAN STS16 Terminal Server
• Front/Rear Mounting Hardware
• RS232 on RJ45 with DB9 Adapter

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: Lifetime

Additional Warranty Information: The Perle IOLAN STS16 is backed by the best service and support in the industry including Perle's unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.
