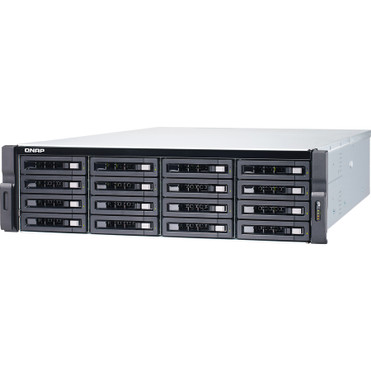

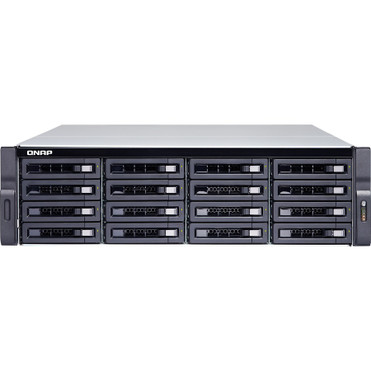

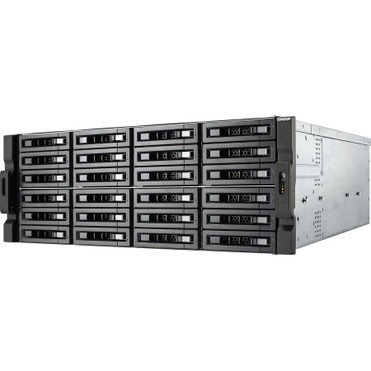

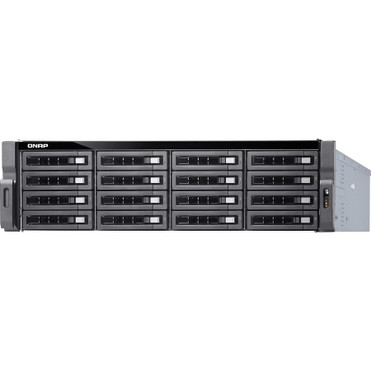

QNAP TS-2483XU-RP-E2136-16G SAN/NAS Storage System - Intel Xeon E-2136 Hexa-core (6 Core) 3.30 GHz - 24 x HDD Supported - 24 x SSD - - (TS-2483XU-RP-E2136-16G-US)

Marketing Information:

Server-grade Intel® Xeon® E processor and ECC memory for high performance and reliability

The Intel® Xeon® E based TS-2483XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox® ConnectX®-4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-2483XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.

• DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.

• Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing, intensive data transfer, and VMware virtualization applications.

• PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

• Supports VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2016 virtualization with reliability and cost-efficiency.

• Software-defined SSD extra over-provisioning combats write amplification and optimizes SSD random write speeds for IOPS-demanding applications.

• Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.

Intel® Xeon® E processor, extraordinary performance

The TS-2483XU-RP features an Intel® Xeon® E-2136 six-core 3.3 GHz processor (burst up to 4.5 GHz), 16 GB DDR4 ECC memory (upgradable to 64 GB), and redundant power supply, delivering server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution. Besides 4 Gigabit RJ45 LAN ports, the TS-2483XU-RP comes with two 10GbE SFP+ SmartNIC LAN ports to provide a significant performance boost.

ECC memory forestalls data corruption to assure reliability

The Intel® Xeon® E based TS-2483XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-2483XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-2483XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TS-2483XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.

Server-grade hardware: Sturdy and expandable

The TS-2483XU-RP features outstanding hardware and expandable architecture, enabling optimum performance and flexibility to fulfill business needs in performance and application diversification.

Number of Hard Drives Supported: 24

Number of Hard Drives Installed: No

Number of Solid State Drive Supported: 24

Number of Solid State Drive Installed: No

Flash Memory Capacity: 4 GB

Processor Manufacturer: Intel

Processor Type: Xeon

Processor Model: E-2136

Processor Core: Hexa-core (6 Core)

Processor Speed: 3.30 GHz

Standard Memory: 16 GB

Memory Technology: DDR4 SDRAM

Ethernet Technology: 10 Gigabit Ethernet

Number of Total Expansion Bays: 24

Number of 2.5"/3.5" Bays: 24

Total Number of Expansion Slots: 7

Expansion Slot Type: PCI Express 3.0 x4,PCI Express 3.0 x8,SFP+,PCI Express x4

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD

Total Number of USB Ports: 6

Network (RJ-45): Yes

Operating System: QTS 4.3.5

Protocols: DNS,Telnet,DLNA,IPv6,RTSP,FTPS,SSL,WEBDAV,IPMI,SSL/TLS,AFP,HTTPS,FTP,SSH,DHCP,FXP,SMTP,LDAP,iSCSI,IPv4,UPnP,TCP/IP,PPTP,HTTP,CIFS/SMB,DDNS,RSync,SNMP

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 800 W

Redundant Power Supply: Yes

Height: 6.94" (176.15 mm)

Width: 18.94" (481.04 mm)

Depth: 26.46" (672.02 mm)

Form Factor: Rack-mountable

Rack Height: 4U

Package Contents:

• TS-2483XU-RP-E2136-16G SAN/NAS Storage System
• 2 x Ethernet Cables
• 2 x Power Cord
• 96 x Flat Head Screws (for 3.5" HDD)
• 96 x Flat Head Screws (for 2.5" HDD)
• Quick Installation Guide (QIG)

Country of Origin: Taiwan
