Rack Studs Series II - 100-Pack (Rail Thickness 2.7mm to 3.2mm)
Rack Studs Series II - 100-Pack (Rail Thickness 2.7mm to 3.2mm)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Rack Studs Series II - 100-Pack (Rail Thickness 2.7mm to 3.2mm)

(No reviews) Write a Review
$76.23
$76.00
SKU: FN-RM-RSL3.2P100-S2
Availability: Stock Toronto
Weight: 0.78 LBS
Adding to cart… The item has been added

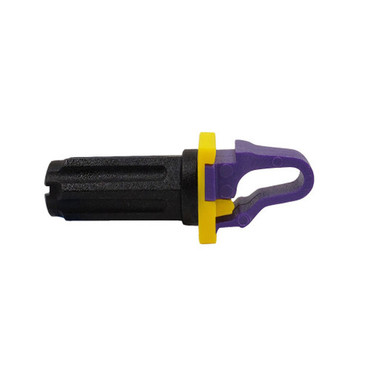

This Rackstud is designed to fit square hole server rails with a thickness of 2.7mm to 3.2mm. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.

Features:
  • Redesigned nut with screwdriver slot
  • Longer threads makes hanging gear easier
  • Improved leverage strength up >30%
  • Fits even thicker rails
  • Now even easier to insert
Physical Characteristics
Color Purple Stud, Yellow Lock Washer, Black Nut
Stud Material Grivory„¢
Washer Material PP
Nut Material Glass Filled Nylon
Vertical Rail Hole 9.2 to 9.89mm (0.362" to 0.389")
Vertical Rail Thickness 2.7mm to 3.2mm (0.106" to 0.126")
Maximum Equipment Weight 20kg (44lbs)
Push-In Force 46kgs/101lbs
Pull-Out Force 92kgs/202lbs
Shear Strength 156kg/343lbs
Approvals
SGS Labs Yes
RoHS
Yes
Reach
Yes
Packaging Information
Package Quantity100
Product Weight0.78 lbs [0.36 kg]
