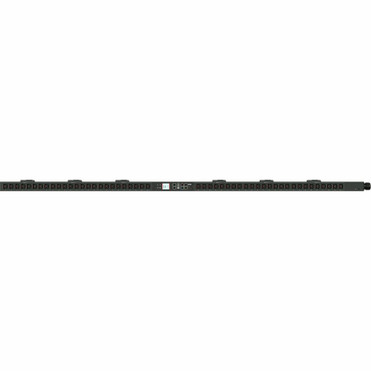

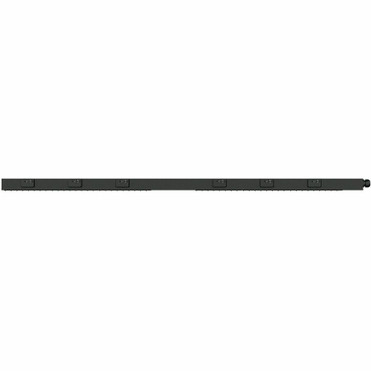

Raritan PX3-1135A1U-E2N1Q1V2 50-Outlets PDU - Metered - Clipsal 56P532 (4P5W) - 50 x IEC 60320 C13 - 415 V AC - Branch Circuit, - - ft (PX3-1135A1U-E2N1Q1V2)
Write a Review
Raritan
Raritan PX3-1135A1U-E2N1Q1V2 50-Outlets PDU - Metered - Clipsal 56P532 (4P5W) - 50 x IEC 60320 C13 - 415 V AC - Branch Circuit, - - ft (PX3-1135A1U-E2N1Q1V2)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
PDU Type: Metered
Phase: Three Phase
Plug/Connector Type: Clipsal 56P532 (4P5W)
Receptacle Type: IEC 60320 C13
Receptacle Detail: 50 x IEC 60320 C13
Protection Type: Branch Circuit,Overload Protection
Locking Receptacles: SecureLock
Features: LCD Display,Onboard Display
Load Capacity (VA): 23 kW
Input Voltage: 415 V AC
Output Voltage: 240 V AC
Power Rating (VA): 23 kVA
Input Current: 32 A
Input Frequency: 60 Hz
Management:
Remote Outlet Switching: No
Network (RJ-45): Yes
Product Color: Black Powder Coat
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Cord Length: 9.8 ft (3 m)
Height: 80.50" (2044.70 mm)
Width: 2.10" (53.34 mm)
Depth: 2.60" (66.04 mm)
Weight (Approximate): 20.94 lb (9500 g)
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 85%
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- You can always avoid potential overloads with PDU meter
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-1135A1U-E2N1Q1V2 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-1135A1U-E2N1Q1V2 |
| Product Name | PX3-1135A1U-E2N1Q1V2 50-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | Clipsal 56P532 (4P5W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 50 x IEC 60320 C13 |
| Protection Type | Branch Circuit,Overload Protection |
| Locking Receptacles | SecureLock |
| Features | LCD Display,Onboard Display |
| Load Capacity (VA) | 23 kW |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (VA) | 23 kVA |
| Input Current | 32 A |
| Input Frequency | 60 Hz |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Black Powder Coat |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 80.50" (2044.70 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 20.94 lb (9500 g) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
