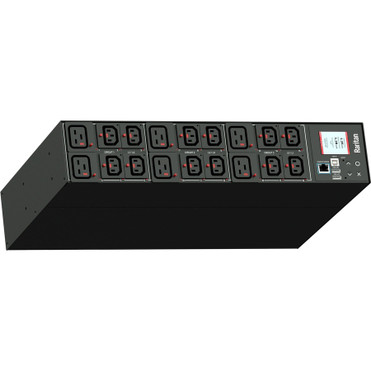

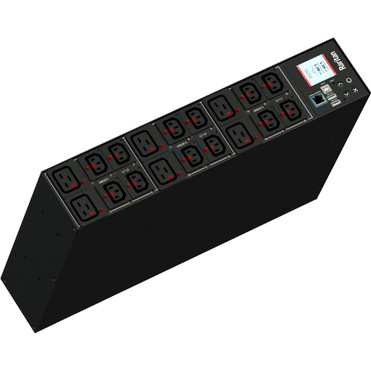

Raritan PX3-4599R-E2 18-Outlets PDU - Monitored - NEMA L15-30P (3P4W) - 12 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network - - (PX3-4599R-E2)
Write a Review
Raritan
Raritan PX3-4599R-E2 18-Outlets PDU - Monitored - NEMA L15-30P (3P4W) - 12 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network - - (PX3-4599R-E2)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Type: NEMA L15-30P (3P4W)
Receptacle Type: IEC 60320 C13,IEC 60320 C19
Receptacle Detail: 12 x IEC 60320 C13,6 x IEC 60320 C19
Protection Type: Overload Protection,Overcurrent Protection,Splash Proof,Double Pole
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage: 208 V AC
Output Voltage Range: 208 V AC - 240 V AC
Power Rating (VA): 8.60 kVA
Input Current: 30 A
Management:
Remote Outlet Switching: No
Network (RJ-45): Yes
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.30" (439.42 mm)
Depth: 11.50" (292.10 mm)
Weight (Approximate): 17.20 lb (7800 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- PDU provides active metering enabling energy optimization and circuit protection
- Before critical input source become overloaded always be warned with monitored PDUs
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-4599R-E2 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-4599R-E2 |
| Product Name | PX3-4599R-E2 18-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L15-30P (3P4W) |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,6 x IEC 60320 C19 |
| Protection Type | Overload Protection,Overcurrent Protection,Splash Proof,Double Pole |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 208 V AC - 240 V AC |
| Power Rating (VA) | 8.60 kVA |
| Input Current | 30 A |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 11.50" (292.10 mm) |
| Weight (Approximate) | 17.20 lb (7800 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Raritan Rack Mount for PDU |
| SKU | RACK-KIT-PX-2U |
| Sale Price | $82.17 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
