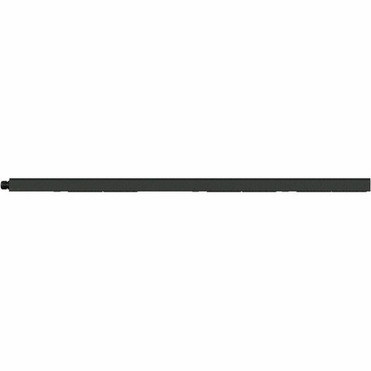

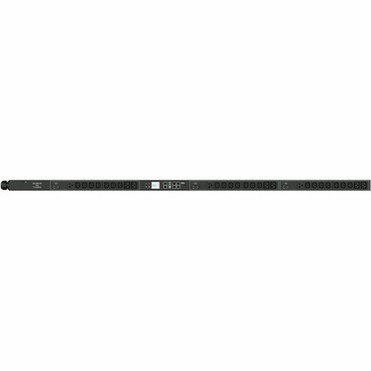

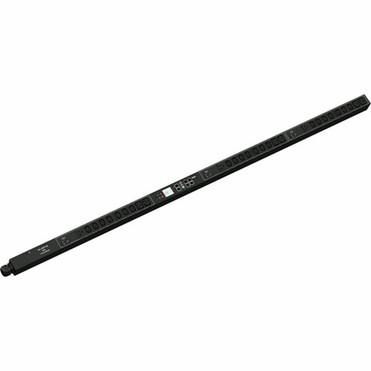

Raritan PX3-5660U 30-Outlets PDU - Switched with Metered-by-Outlet - NEMA L21-30P (4P5W) - 21 x IEC 60320 C13, 6 x IEC 60320 C19, 13 x (PX3-5660U)
Write a Review
Raritan
Raritan PX3-5660U 30-Outlets PDU - Switched with Metered-by-Outlet - NEMA L21-30P (4P5W) - 21 x IEC 60320 C13, 6 x IEC 60320 C19, 13 x (PX3-5660U)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
PDU Type: Switched with Metered-by-Outlet
Phase: Three Phase
Plug/Connector Type: NEMA L21-30P (4P5W)
Receptacle Type: IEC 60320 C13,IEC 60320 C19,NEMA 5-20R
Receptacle Detail: 21 x IEC 60320 C13,6 x IEC 60320 C19,13 x NEMA 5-15R
Protection Type: Branch Circuit,Circuit Breaker,Overload Protection
Locking Receptacles: SecureLock
Features: Onboard Display,LCD Display
Input Voltage: 208 V AC
Input Voltage Range: 190 V AC - 208 V AC
Output Voltage: 120 V AC
Output Voltage Range: 120 V AC - 208 V AC
Power Rating (VA): 8.60 kVA
Input Current: 30 A
Input Frequency: 60 Hz
Management:
Remote Outlet Switching: Yes
Product Color: Black Powder Coat
Mount Type: Rack-mountable
Cord Length: 9.8 ft
Height: 70.10" (1780.54 mm)
Width: 2.10" (53.34 mm)
Depth: 2.60" (66.04 mm)
Weight (Approximate): 8.60 kg
Maximum Operating Temperature: 140°F (60°C)
Maximum Operating Humidity: 85%
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX35660U |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5660U |
| Product Name | PX3-5660U 30-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched with Metered-by-Outlet |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P (4P5W) |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19,NEMA 5-20R |
| Receptacle Detail | 21 x IEC 60320 C13,6 x IEC 60320 C19,13 x NEMA 5-15R |
| Protection Type | Branch Circuit,Circuit Breaker,Overload Protection |
| Locking Receptacles | SecureLock |
| Features | Onboard Display,LCD Display |
| Power Description | |
| Input Voltage | 208 V AC |
| Input Voltage Range | 190 V AC - 208 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 208 V AC |
| Power Rating (VA) | 8.60 kVA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Physical Characteristics | |
| Product Color | Black Powder Coat |
| Mount Type | Rack-mountable |
| Cord Length | 9.8 ft |
| Height | 70.10" (1780.54 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 8.60 kg |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
2 Year
