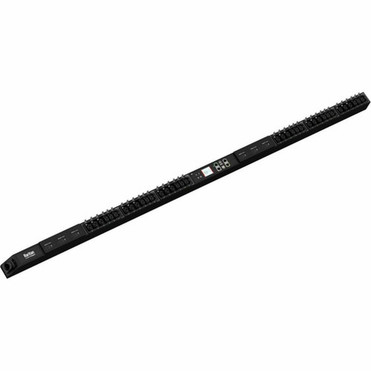

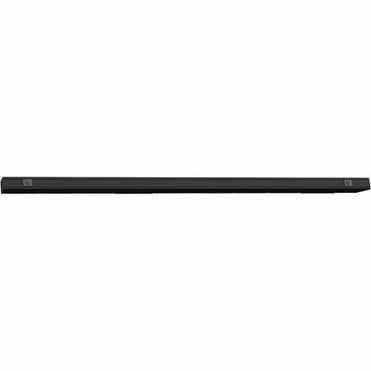

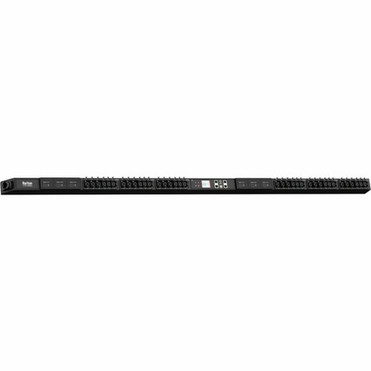

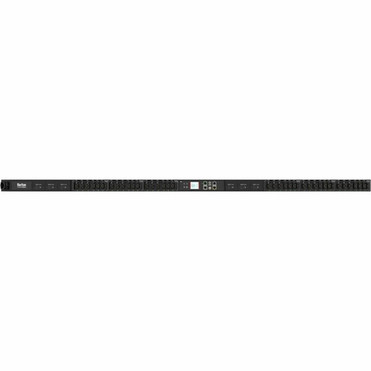

Raritan PX4-4072-E7V2 36-Outlets PDU - Metered, Metered-by-Outlet - CS8365C (3P4W) - 18 x IEC 60320 C13, 18 x CX - 230 V AC - Branch - (PX4-4072-E7V2)
Write a Review
Raritan
Raritan PX4-4072-E7V2 36-Outlets PDU - Metered, Metered-by-Outlet - CS8365C (3P4W) - 18 x IEC 60320 C13, 18 x CX - 230 V AC - Branch - (PX4-4072-E7V2)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- HTTP(s)
- SSH (CLI)
- Telnet
- RS-232 (Serial)
- SNMP version v2/v3
- SMTP
- JSON-RPC API
- MODBUS-TCP
- Redfish API
PDU Type: Metered,Metered-by-Outlet
Phase: Three Phase
Plug/Connector Type: CS8365C (3P4W)
Receptacle Type: IEC 60320 C13,CX
Receptacle Detail: 18 x IEC 60320 C13,18 x CX
Protection Type: Branch Circuit,Circuit Breaker,Overload Protection
Locking Receptacles: P-Lock,SecureLock
Features: Multi-color LCD,Onboard Display
Load Capacity (VA): 14.40 kW
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage: 120 V AC
Output Voltage Range: 120 V AC - 208 V AC
Power Rating (VA): 16.60 kVA
Input Current: 50 A
Input Frequency: 60 Hz
Management:
Remote Outlet Switching: No
Network (RJ-45): Yes
Product Color: Black Powder Coat
Mount Type: Button Mount
Cord Length: 9.8 ft
Height: 70.10" (1780.54 mm)
Width: 2.20" (55.88 mm)
Depth: 2.60" (66.04 mm)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: -22°F (-30°C)
Maximum Storage Temperature: 176°F (80°C)
Minimum Operating Humidity: 5%
Maximum Operating Humidity: 95%
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- PDU is reliable for power protection and management solutions
- You can always avoid potential overloads with PDU meter
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX4-4072-E7V2 |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Raritan |
| Product Series | PX4 |
| Product Model | PX4-4072-E7V2 |
| Product Name | PX4-4072-E7V2 36-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered,Metered-by-Outlet |
| Phase | Three Phase |
| Plug/Connector Type | CS8365C (3P4W) |
| Receptacle Type | IEC 60320 C13,CX |
| Receptacle Detail | 18 x IEC 60320 C13,18 x CX |
| Protection Type | Branch Circuit,Circuit Breaker,Overload Protection |
| Locking Receptacles | P-Lock,SecureLock |
| Features | Multi-color LCD,Onboard Display |
| Load Capacity (VA) | 14.40 kW |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 120 V AC - 208 V AC |
| Power Rating (VA) | 16.60 kVA |
| Input Current | 50 A |
| Input Frequency | 60 Hz |
| Management | |
| Management |
|
| Remote Outlet Switching | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | Black Powder Coat |
| Mount Type | Button Mount |
| Cord Length | 9.8 ft |
| Height | 70.10" (1780.54 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.60" (66.04 mm) |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
2 Year
