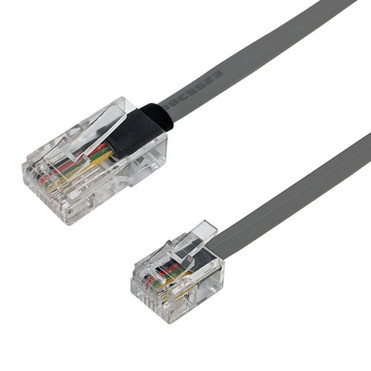

This modular flat phone cable consists of a RJ45 (8P8C) male plug on one end and RJ11 (6P4C) male plug on the other and has straight through wiring. It is typically used in data line applications.
Physical Characteristics |
---|
Color | Silver Satin |
Contact Plating | Gold |
Cable Diameter | 8.8mm x 2.5mm |
Wire Gauge | 26AWG |
Jacket Material | PVC - Polyvinyl Chloride |
Jacket Rating | VW-1 |
Temperature Rating | 60 deg C |
Cable Voltage Rating | 150V |
Cross Wiring | RJ11 | RJ45 | 1 to 2 to 3 to 4 to
| 3 4 5 6
|
|
Connector(s) |
---|
Connector A | RJ45 (8P8C) Male |
Connector B | RJ11 (6P4C) Male |
Approvals |
---|
UL | Yes - Cable |
cUL | Yes - Cable |
Environmental |
---|
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information |
---|
Package Quantity | 1 |
Warranty Information |
---|
Warranty | Limited Lifetime |
