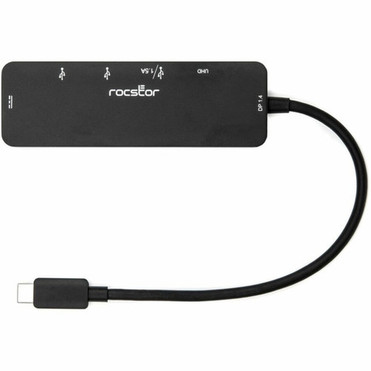

Rocstor Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode - 1 x USB 3.1 Type C - Male - 1 x HDMI Digital Audio/Video - 3 x (Y10A308-B1)
Write a Review
Rocstor
Rocstor Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode - 1 x USB 3.1 Type C - Male - 1 x HDMI Digital Audio/Video - 3 x (Y10A308-B1)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode
- 1 x User Manual
Adapter Type: HDMI/USB/USB-C
Connector Type on First End: USB 3.1 Type C - Male
Connector on First End Details: 1 x USB 3.1 Type C - Male
Connector Type on Second End: HDMI Digital Audio/Video - Female,USB 3.1 Type A - Female,USB 3.1 Type C - Female
Connector on Second End Details: 1 x HDMI Digital Audio/Video - Female,3 x USB 3.1 Type A - Female,1 x USB 3.1 Type C - Female
Maximum Resolution Supported: 3840 x 2160
Features: Charging,HDCP 2.2,HDCP 1.4,HDR Support,USB- Power Delivery (USB PD),Display Stream Compression (DSC),High Bit Rate 3 (HBR3),Power Delivery 3.0
Color Family: Black
Product Color: Black
Height: 0.37" (9.40 mm)
Width: 1.30" (33.02 mm)
Length: 4.50" (114.30 mm)
Weight (Approximate): 1.80 oz (51.03 g)
Package Contents:
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- Multiport Expansion: Connects a single Type-C port to HDMI, USB-A, and Type-C PD/data ports.
- High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode and 18Gbps bandwidth.
- USB-A Port: Provides up to 5Gbps data transfer and supports max 7.5W (5V/1.5A) downstream charging.
- Type-C PD Charging and Data Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap and max 5Gbps data transfer.
- HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
- Multiple Color Depth Outputs: Supports 6/8/10/12 bit color depth and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2).
- Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
- Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
- Warranty: Rocstor 2-Year Limited Warranty
[custom-specifications]
| Specifications | |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10A308-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Name | Type-C to HDMI/USB-Ax3/Type-C PD Charging with DP1.4 Alt Mode |
| Packaged Quantity | 1 |
| Product Type | A/V Adapter |
| Technical Information | |
| Adapter Type | HDMI/USB/USB-C |
| Connector Type on First End | USB 3.1 Type C - Male |
| Connector on First End Details | 1 x USB 3.1 Type C - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Female,USB 3.1 Type A - Female,USB 3.1 Type C - Female |
| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Female,3 x USB 3.1 Type A - Female,1 x USB 3.1 Type C - Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | Charging,HDCP 2.2,HDCP 1.4,HDR Support,USB- Power Delivery (USB PD),Display Stream Compression (DSC),High Bit Rate 3 (HBR3),Power Delivery 3.0 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.37" (9.40 mm) |
| Width | 1.30" (33.02 mm) |
| Length | 4.50" (114.30 mm) |
| Weight (Approximate) | 1.80 oz (51.03 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
2 Year
