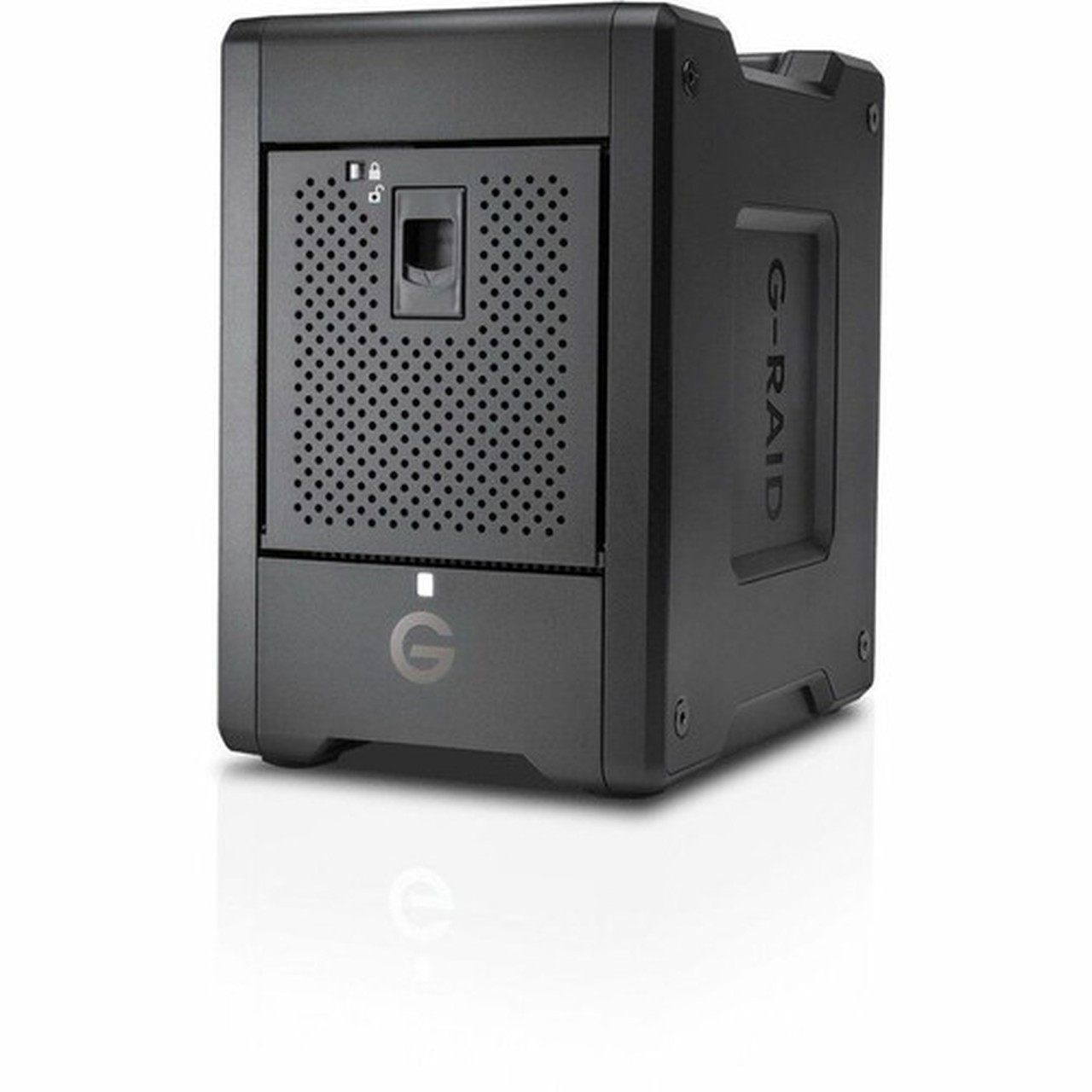

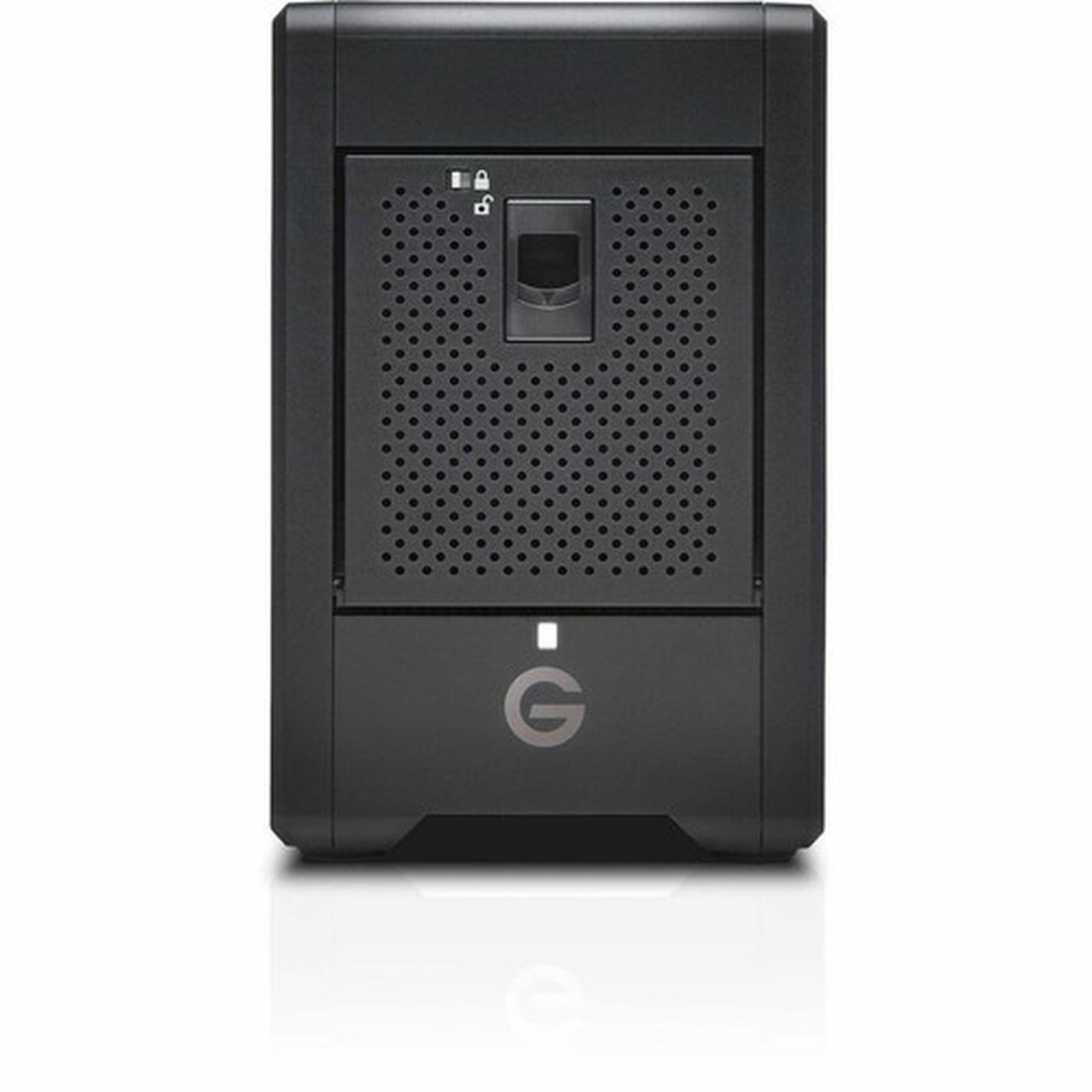

SanDisk Professional G-RAID Shuttle 4 DAS Storage System - 4 x HDD Supported - 80 TB Supported HDD Capacity - 4 x HDD Installed - 80 - (SDPH34H-080T-NBAAB)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- G-RAID Shuttle 4 DAS Storage System
- 4 x Removable Disk Modules
- 1 x Thunderbolt™ 3 Cable (40Gbps)
- Power Cord
- Quick Start Guide
Marketing Information:
A transportable 4-bay hardware RAID solution with Thunderbolt™ 3 (40Gbps) and USB-C™ (10Gbps) interfaces offering content professionals up to 80TB of massive capacity and high-powered performance for consolidated backup, super-fast access, and real-time video editing. Supports multi-stream 4K, 8K, and VR workflows, RAID 0, 1, 5, and 10 configurations, and provides transfer rates up to 640MB/s read and 800MB/s write in default RAID 5. Along with Ultrastar enterprise-class hard drives inside for enhanced reliability and a trusted 5-year limited warranty, the G-RAID SHUTTLE 4 is the ultimate storage solution for demanding video workflows on location and in the studio.
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: 4
Total Hard Drive Capacity Supported: 80 TB
Total Hard Drive Capacity Installed: 80 TB
Number of Total Expansion Bays: 4
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10, JBOD
Host Interface: Thunderbolt 3,USB 3.2 (Gen 1) Type C
Total Number of USB Ports: 1
Number of USB 3.2 Gen 1 Ports: 1
Number of Thunderbolt 3 Ports: 2
Height: 10.51" (267 mm)
Width: 6.85" (174 mm)
Depth: 9.76" (248 mm)
Form Factor: Desktop
Weight (Approximate): 16.49 lb (7480 g)
Package Contents:
Limited Warranty: 5 Year
[custom-specifications]
Specifications | |
Manufacturer | Western Digital Corporation |
Manufacturer Part Number | SDPH34H-080T-NBAAB |
Manufacturer Website Address | http://www.westerndigital.com |
Brand Name | SanDisk Professional |
Product Line | G-RAID Shuttle 4 |
Product Name | G-RAID Shuttle 4 DAS Storage System |
Product Type | DAS Storage System |
Storage | |
Number of Hard Drives Supported | 4 |
Number of Hard Drives Installed | 4 |
Total Hard Drive Capacity Supported | 80 TB |
Total Hard Drive Capacity Installed | 80 TB |
I/O Expansions | |
Number of Total Expansion Bays | 4 |
Controllers | |
RAID Supported | Yes |
RAID Levels | 0, 1, 5, 10, JBOD |
Interfaces/Ports | |
Host Interface | Thunderbolt 3,USB 3.2 (Gen 1) Type C |
Total Number of USB Ports | 1 |
Number of USB 3.2 Gen 1 Ports | 1 |
Number of Thunderbolt 3 Ports | 2 |
Physical Characteristics | |
Height | 10.51" (267 mm) |
Width | 6.85" (174 mm) |
Depth | 9.76" (248 mm) |
Form Factor | Desktop |
Weight (Approximate) | 16.49 lb (7480 g) |
Miscellaneous | |
Package Contents |
|
Warranty | |
Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
5 Year
