SATA PCIe Card, 6 Port PCIe SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter - SATA III (6P6G-PCIE-SATA-CARD)
Write a Review
StarTech.com
SATA PCIe Card, 6 Port PCIe SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter - SATA III (6P6G-PCIE-SATA-CARD)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance

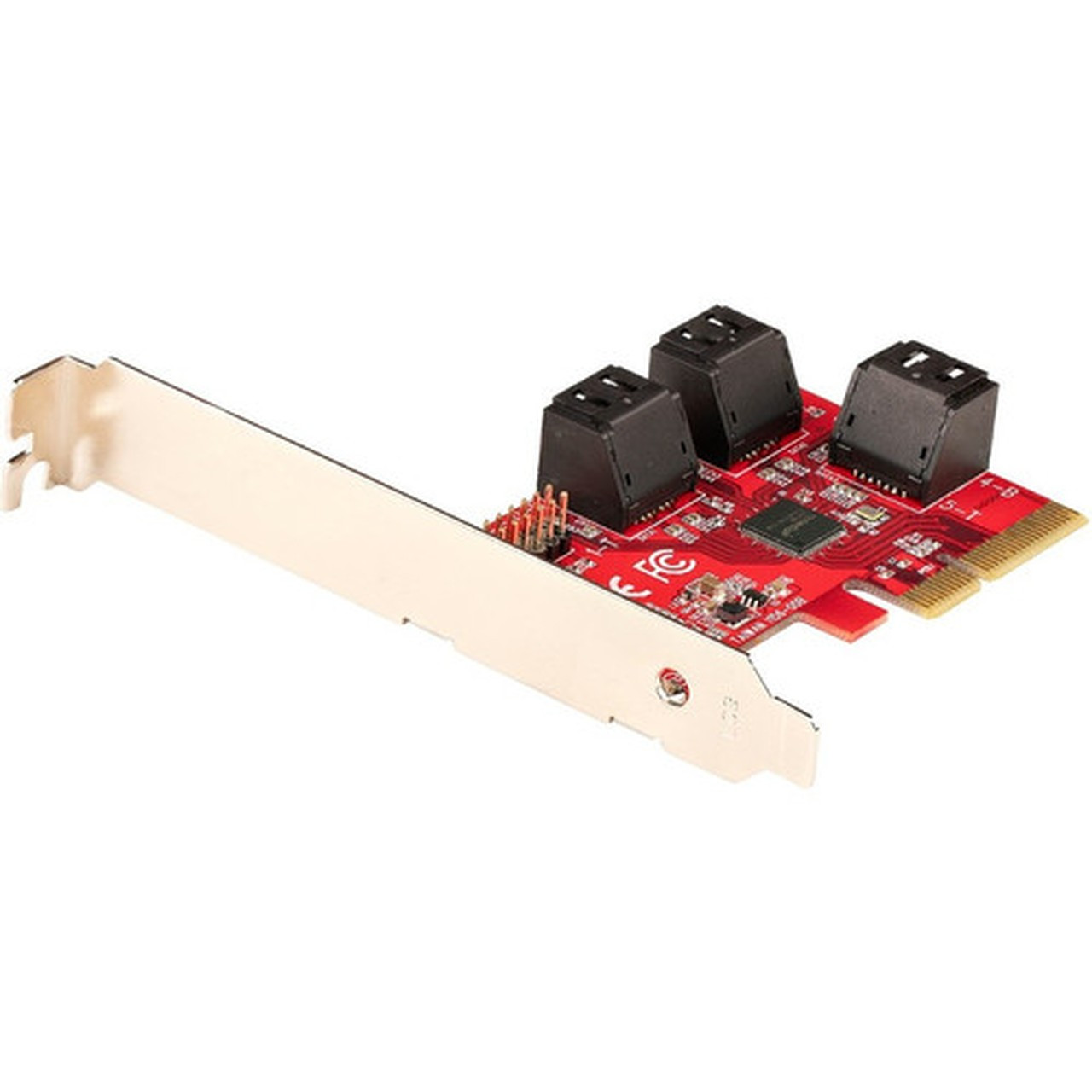

- PCIe SATA Card
- Full-Profile Bracket (Installed)

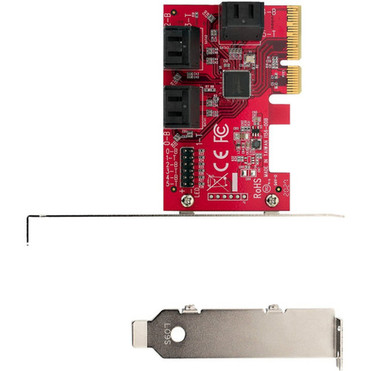

- Low-Profile Bracket
- Quick-Start Guide
Host Interface: PCI Express x4
Controller Type: Serial ATA/600
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32
Total Number of SATA Ports: 6
Number of SATA Ports (Internal): 6
Form Factor: Plug-in Card
Height: 0.63" (16 mm)
Width: 2.13" (54 mm)
Length: 3.23" (82 mm)
Weight (Approximate): 2.65 oz (75 g)
Package Contents:
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: 2 Year
- HIGH-PERFORMANCE: Add six SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 slot to connect SATA drives (HDD/SSD); 6-Port SATA PCIe card features 6x SATA connections for connecting drives using SATA cables (sold separately)
- ASM1166 CONTROLLER: This PCI Express SATA 3 6Gbps card features single-chip architecture adding six SATA (serial ATA) 6Gbps ports via a single x4 PCIe slot, for combined total bandwidth up to 16Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
- COMPATIBILITY: Supports PCIe 3.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.10+), Linux (2.6.32+); Improved motherboard compatibility with no built-in RAID; Supports ATA & ATAPI (HDD, SSD, Optical Disc)
- EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 6P6G-PCIE-SATA-CARD |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | PCIe SATA Card |
| Packaged Quantity | 1 |
| Product Type | SATA Controller |
| Technical Information | |
| Host Interface | PCI Express x4 |
| Controller Type | Serial ATA/600 |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32 |
| Interfaces/Ports | |
| Total Number of SATA Ports | 6 |
| Number of SATA Ports (Internal) | 6 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 0.63" (16 mm) |
| Width | 2.13" (54 mm) |
| Length | 3.23" (82 mm) |
| Weight (Approximate) | 2.65 oz (75 g) |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
