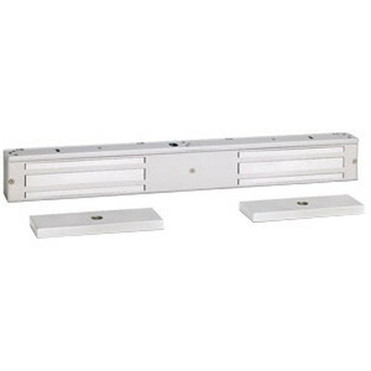

SDC EMLock 1572 Magnetic Lock - 12 V DC, 24 V DC - 544.31 kg Holding Force (1572VD)
Marketing Information:
Energy Saver, ANSI Grade 1, Modular Magnetic Lock, 1200 lbs Holding Force with only 3 Watts power consumption. Field upgradeable monitoring outputs and servicing without removing from the door frame.
Door Supported: Double Door
Holding Force: 544.31 kg
Features: Door Status Sensor (DSS),Magnetic Bond Sensor (MBS),Door Position Switch (DPS)
Input Voltage: 12 V DC,24 V DC
Input Current: 500 mA
Power Consumption: 6 W
Finishing: Aluminum
Form Factor: Surface Mount
Lock Height: 2.75" (69.85 mm)
Lock Depth: 1.56" (39.67 mm)
Lock Length: 11" (279.40 mm)
Application/Usage: Inswing Door
Limited Warranty: Lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | Security Door Controls |
| Manufacturer Part Number | 1572VD |
| Manufacturer Website Address | http://www.sdcsecurity.com |
| Brand Name | SDC |
| Product Line | EMLock |
| Product Series | 1570 |
| Product Model | 1572 |
| Product Name | EMLock 1572 Magnetic Lock |
| Product Type | Magnetic Lock |
| Technical Information | |
| Door Supported | Double Door |
| Holding Force | 544.31 kg |
| Features | Door Status Sensor (DSS),Magnetic Bond Sensor (MBS),Door Position Switch (DPS) |
| Power Description | |
| Input Voltage | 12 V DC,24 V DC |
| Input Current | 500 mA |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Finishing | Aluminum |
| Form Factor | Surface Mount |
| Lock Height | 2.75" (69.85 mm) |
| Lock Depth | 1.56" (39.67 mm) |
| Lock Length | 11" (279.40 mm) |
| Miscellaneous | |
| Application/Usage | Inswing Door |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
Warranty Infomartion
Lifetime
