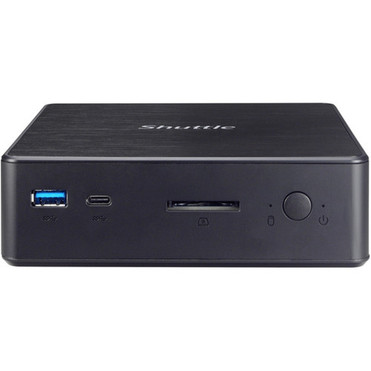

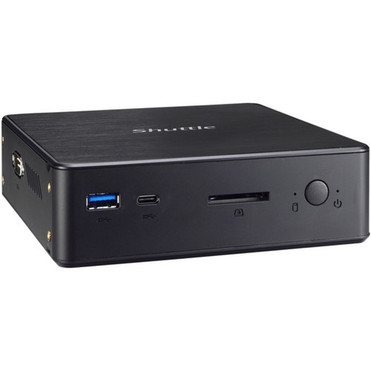

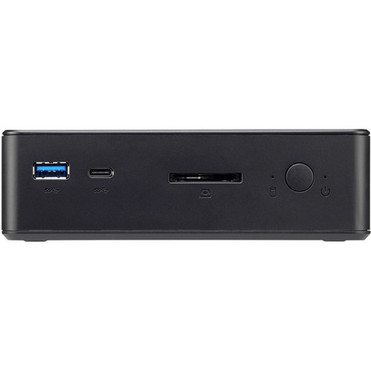

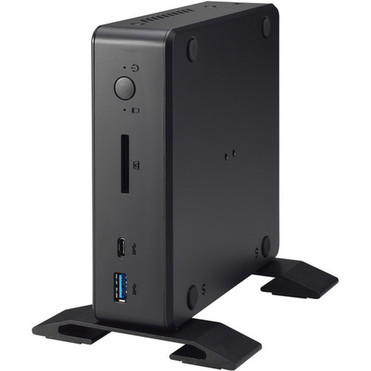

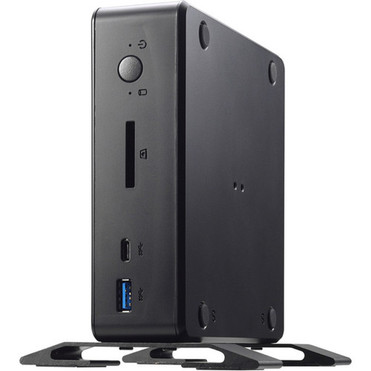

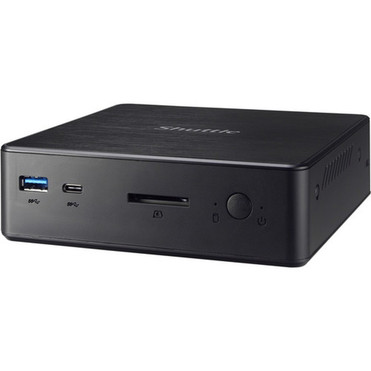

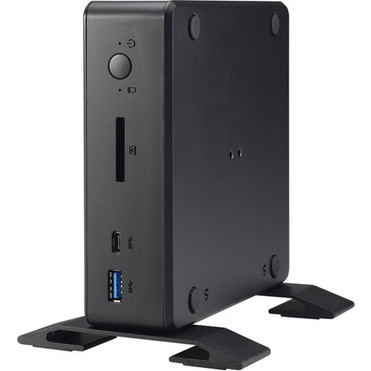

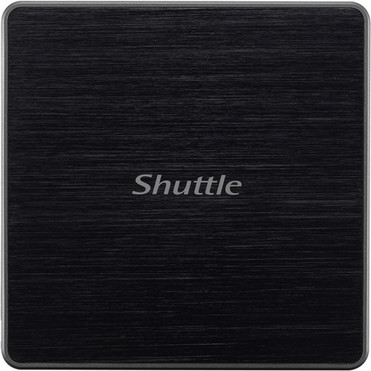

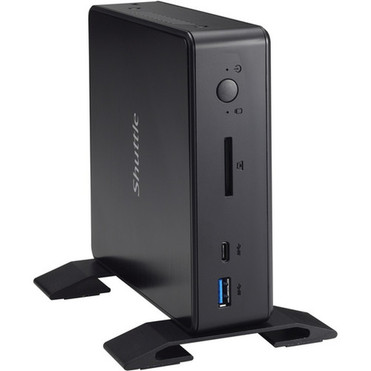

Shuttle XPC nano NC03U Barebone System - Mini PC - Celeron 3865U 1.80 GHz - DDR4 SDRAM Maximum RAM Support - HD Graphics 610 - HDMI - (NC03U)
Write a Review
Shuttle
Shuttle XPC nano NC03U Barebone System - Mini PC - Celeron 3865U 1.80 GHz - DDR4 SDRAM Maximum RAM Support - HD Graphics 610 - HDMI - (NC03U)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Marketing Information: Shuttle's XPC nano Series gets a performance boost
The NC03U series is powered by Intel's power-saving ULV (ultra-lowvoltage) processors of the Kaby Lake generation. Compared with the NC02U series, it brings higher clock frequencies, improved graphics performance and support of faster DDR4 memory up to 2x 16 GB. Furthermore, one 2.5" drive up to 15 mm in height as well as one M.2-2280 NVMe SSD card can be installed. The DisplayPort connector delivers video resolutions of up to 4K at 60 frames per second while a second display can be connected via HDMI. USB peripherals use either the type A or type C ports. Professional users will appreciate Intel Gigabit-LAN and one serial port which indicates what purposes the NC03U series is mainly intended for: Digital Signage, POS, control, office or even multimedia.
Processor Type: Celeron
Processor Model: 3865U
Processor Speed: 1.80 GHz
Memory Technology: DDR4 SDRAM
Graphics Controller Model: HD Graphics 610
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Wireless LAN: Yes
HDMI: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 1
USB Type-C: Yes
USB Type-C Detail: USB 3.0 Type C
DisplayPort: Yes
Product Color: Black
Form Factor: Mini PC
Height: 1.65" (42 mm)
Width: 5.59" (142 mm)
Depth: 5.59" (142 mm)
Weight (Approximate): 14.11 oz (400 g)
Energy Star: Yes
Country of Origin: China
Limited Warranty: 3 Year
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Can connect up to 4 USB peripherals
[custom-specifications]
| Specifications | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC03U |
| Manufacturer Website Address | http://www.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Model | NC03U |
| Product Name | XPC nano NC03U Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Celeron |
| Processor Model | 3865U |
| Processor Speed | 1.80 GHz |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics 610 |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Wireless LAN | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | USB 3.0 Type C |
| DisplayPort | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
3 Year
