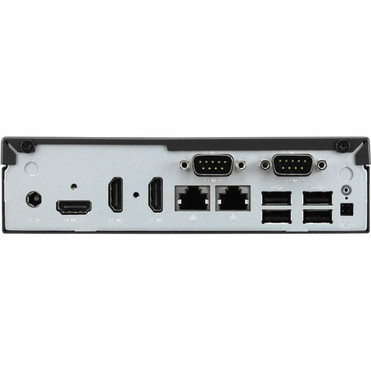

Shuttle XPC slim DH270 Barebone System - Slim PC - Socket H4 LGA-1151 - 1 x Processor Support - Intel H270 Chip - 32 GB DDR4 SDRAM RAM (DH270)
Write a Review
Shuttle
Shuttle XPC slim DH270 Barebone System - Slim PC - Socket H4 LGA-1151 - 1 x Processor Support - Intel H270 Chip - 32 GB DDR4 SDRAM RAM (DH270)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- XPC slim DH270 Barebone System
- Quick Guide
- Driver DVD
- 90W Power Adapter
- HDD Screw Pack
- Power Cord
- Thermal Grease
- VESA Mount
- VESA Screw Pack
Marketing Information:
Rugged and powerful enough to drive even up to three 4K displays
Geared towards large and high-resolution signage application, the Shuttle XPC DH270 XPC slim, is based on the Intel®H270 chipset, supports LGA 1151 Intel®6th/7th generation Core™ i 65W processors. With integrated Intel® HD graphics, the DH270 can support 4K/UHD video playback on up to three screens via three HDMI outputs. In addition it supports DDR4-2133/2400 memory, as well as Intel® Optane™ technology improve on processing and data transfer speed and agility. The DH270 provides multiple I/O and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, RS232/422/485, M.2 type M and A/E, and Mini PCIe. Thanks to Shuttle's exclusive heat-pipe cooling with smart fan, the DH270 is capable of long-term operation at high stability and reliability levels Its slim 43mm design and VESA support to makes it easy to integrate in diverse commercial environments.
Supports Intel® 6th /7th Generation Core™ Processor
Based on socket LGA 1151, the all-new DH270 supports both Intel® 6th/ 7th Generation (Skylake/Kaby Lake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. The built-in DirectX 12 compatibility with Intel® HD Graphics significantly increases CPU and GPU performance.
Intel® Optane™ Technology
With a 7th Gen Intel® Core™ processor, the DH270 supports the latest Intel® Optane™ technology which makes your overall system performance up to 28% faster.
Triple Display Support
Spread your content across three screens via HDMI outputs. You can smoothly convey dynamic high-resolution information and target promotions at your audience.
High-speed data transmission interface
The DH270 features native SATA 6Gbps, two USB 3.0 and one USB 3.0 Type-C interface. No more figuring out the right way of plugging in a USB device, USB 3.0 Type-C could be easier to use and is able to increase data transfer speed too.
Heat-pipe cooling technology
The DH270 features Shuttle's exclusive heat-pipe cooling module with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.
Supports Intel® Dual Gigabit LAN
The DH270 has built-in Intel® Dual Gigabit LAN, supports Wake on LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.
24/7 Nonstop Operation
The DH270 is officially approved for 24/7 permanent operation while maintaining. Shuttle's low-power consumption design. Highly reliable and long-term operation is essential for digital signage and other vertical applications.
Operating System support-Windows 10 64bit
-Windows 7 32/64bit (Skylake only)
-Linux
Intel®H200 Series Chipset
With the integrated Intel® H270 chipset, the DH270 supports dual channel DDR4 2400 SO-DIMM memory up to 32GB (2x16GB). It also comes with Intel® Gigabit LAN, SATA 6Gbps and USB3.0 interfaces for superb data transfer speed.
Supports 4K Ultra HD
The DH270 supports playback of 4K high resolution (3840x2160) content via HDMI 2.0. At four times higher resolution as the Full HD standard, viewers will enjoy detail-rich and crystal clear images.
Supports two M.2 expansion slots
The DH270 has one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A/E slot for an M.2 SSD and a WiFi card or other compatible devices.
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i7,Core i3,Core i5,Celeron,Pentium
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: H270
Maximum Memory Supported: 32 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2400/PC4-19200
Total Number of Memory Slots: 2
Controller Type: Serial ATA/600
Graphics Controller Model: HD Graphics
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 1
Total Number of USB Ports: 7
Number of USB 3.0 Ports: 3
Number of SATA Interfaces: 1
Operating System Supported: Linux,Windows 7,Windows 10,Windows 7 x64
Input Voltage: 120 V AC,230 V AC
Maximum Power Supply Wattage: 90 W
Form Factor: Slim PC
Height: 1.70" (43.18 mm)
Width: 6.50" (165.10 mm)
Depth: 7.50" (190.50 mm)
Package Contents:
Country of Origin: China
Limited Warranty: 1 Year
- Intel Core i3 processor works smartly and well responsive to let you swiftly use multiple applications
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
- Featuring 7 USB ports to connect USB-compatible devices
- Serial ATA/600 interface provides quick data transfer and greater throughput
[custom-specifications]
| Specifications | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH270 |
| Manufacturer Website Address | http://www.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Model | DH270 |
| Product Name | XPC slim DH270 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i7,Core i3,Core i5,Celeron,Pentium |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H270 |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.0 Ports | 3 |
| Number of SATA Interfaces | 1 |
| Operating System | |
| Operating System Supported | Linux,Windows 7,Windows 10,Windows 7 x64 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Slim PC |
| Height | 1.70" (43.18 mm) |
| Width | 6.50" (165.10 mm) |
| Depth | 7.50" (190.50 mm) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
Warranty Information
1 Year
