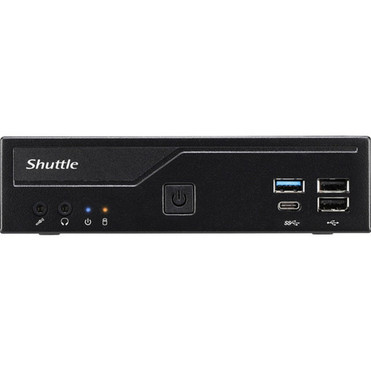

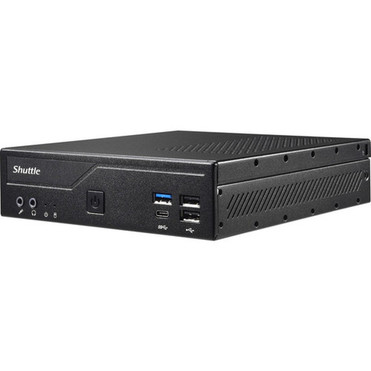

Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support - Intel H610 Chip - 64 GB DDR4 SDRAM RAM - (DH610)
Write a Review
Shuttle
Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support - Intel H610 Chip - 64 GB DDR4 SDRAM RAM - (DH610)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- XPC slim DH610 Barebone System
- Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC)
- VESA Mount For 75/100 mm Standard (two metal brackets)
- 4 x Screws M3 x 5 mm (screws together VESA mount and PC)
- 4 x Screws M4 x 10 mm (to affix VESA mount on the PC)
- 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay)
- 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards)
- Driver DVD (Windows 64-bit)
- Serial ATA Cable For 2.5" Drive Including Power Cable
- External 120 W Power Adapter With Power Cord
- Protection Cap For CPU Socket (do not use if heatpipe or fan is mounted)
- Heatsink Compound
Number of Processors Supported: 1
Processor Socket: Socket LGA-1700
Processor Supported: Core i9,Core i7,Core i5,Core i3,Pentium Gold,Celeron
Chipset Manufacturer: Intel
Chipset Model: H610
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 2
Controller Type: Serial ATA/600
Graphics Controller Model: HD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Ethernet Technology: 2.5 Gigabit Ethernet,Gigabit Ethernet
Number of Total Expansion Bays: 1
HDMI (Rear): Yes
Total Number of USB Ports: 8
Number of USB 3.2 Gen 1 Ports: 3
USB Type-C (Front): Yes
USB Type-C Detail: 1 x USB 3.2 Gen 1 Type-C
Operating System Supported: Windows 10 x64,Windows 11 x64,Linux
Input Voltage: 120 V AC,230 V AC
Maximum Power Supply Wattage: 120 W
Color Family: Black
Product Color: Black
Form Factor: Slim PC
Height: 1.69" (43 mm)
Width: 6.50" (165 mm)
Depth: 7.48" (190 mm)
Weight (Approximate): 2.87 lb (1300 g)
Package Contents:
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Perform computational tasks efficiently with Core i9 processor for smooth and reliable performance
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Windows 10 x64 OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
- Slim PC form factor simplifies usage and boosts efficiency, making setup and operation more convenient
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- 2.5 Gigabit Ethernet Ethernet technology offers reliable wired connectivity for seamless communication and network stability
- Connect USB-enabled devices via 8 USB ports for seamless data sharing and reliable performance
[custom-specifications]
| Specifications | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH610 |
| Manufacturer Website Address | http://www.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Model | DH610 |
| Product Name | XPC slim DH610 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i9,Core i7,Core i5,Core i3,Pentium Gold,Celeron |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 1 Type-C |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.69" (43 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.48" (190 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-options]
| Product | Shuttle Universal WLAN-ac / Bluetooth Combo Kit with M.2 Card |
| SKU | WLN-M |
| Sale Price | $57.34 |
| Product | Shuttle PRM01 Mounting Plate for Barebone PC, PC, Server, Rack - Black Powder Coat - Steel - 1 |
| SKU | PRM01 |
| Sale Price | $172.20 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
