Shuttle XPC X50V8 Barebone System - Desktop - Socket BGA-1528 - 1 x Processor Support - Celeron 10th Gen 5205U 1.90 GHz Dual-core (2 - (X50V8 B)
Write a Review
Shuttle

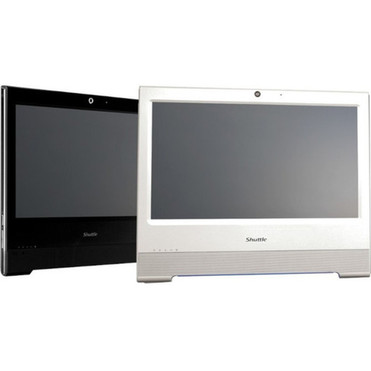

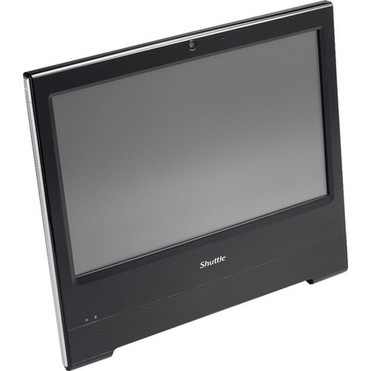

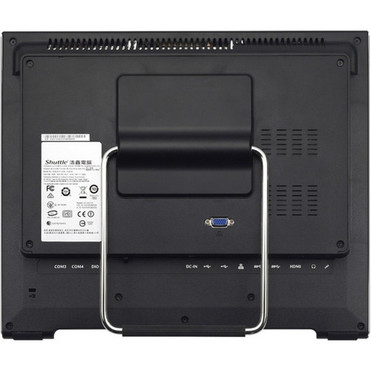

Shuttle XPC X50V8 Barebone System - Desktop - Socket BGA-1528 - 1 x Processor Support - Celeron 10th Gen 5205U 1.90 GHz Dual-core (2 - (X50V8 B)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Marketing Information: 15.6" ALL-IN-ONE PC FOR POS, POI AND KIOSK APPLICATIONS
The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
Number of Processors Supported: 1
Processor Socket: Socket BGA-1528
Processor Type: Celeron
Processor Generation: 10th Gen
Processor Model: 5205U
Processor Core: Dual-core (2 Core)
Processor Speed: 1.90 GHz
64-bit Processing: Yes
Chipset Manufacturer: Intel
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2400/PC4-19200
Total Number of Memory Slots: 2
Controller Type: Serial ATA/600
Screen Size: 15.6" (396.24 mm)
Display Screen Type: Active Matrix TFT LCD
Screen Resolution: 1366 x 768
Touchscreen: Yes
Graphics Controller Model: UHD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes
Webcam: Yes
HDMI (Rear): Yes
Total Number of USB Ports: 7
Number of USB 3.2 Gen 1 Ports: 4
Number of Onboard USB 2.0 Ports: 1
Number of VGA Ports: 1
Operating System Supported: Windows 10 x64,Windows 11 x64,Linux
Input Voltage: 120 V AC,230 V AC
Maximum Power Supply Wattage: 65 W
Color Family: Black
Product Color: Black
Form Factor: Desktop
Height: 12.87" (327 mm)
Width: 15.39" (391 mm)
Depth: 1.65" (42 mm)
Weight (Approximate): 7.72 lb (3500 g)
Energy Star: Yes
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Featuring 7 USB ports to connect USB-compatible devices
- Serial ATA/600 interface provides quick data transfer and greater throughput
[custom-specifications]
| Specifications | |
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | X50V8-B |
| Manufacturer Website Address | http://www.shuttle.com |
| Brand Name | Shuttle |
| Product Line | XPC |
| Product Series | X50V8 |
| Product Model | X50V8 |
| Product Name | XPC X50V8 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket BGA-1528 |
| Processor Type | Celeron |
| Processor Generation | 10th Gen |
| Processor Model | 5205U |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.90 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Screen Size | 15.6" (396.24 mm) |
| Display Screen Type | Active Matrix TFT LCD |
| Screen Resolution | 1366 x 768 |
| Touchscreen | Yes |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Built-in Devices | |
| Webcam | Yes |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Height | 12.87" (327 mm) |
| Width | 15.39" (391 mm) |
| Depth | 1.65" (42 mm) |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Miscellaneous | |
| Energy Star | Yes |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
