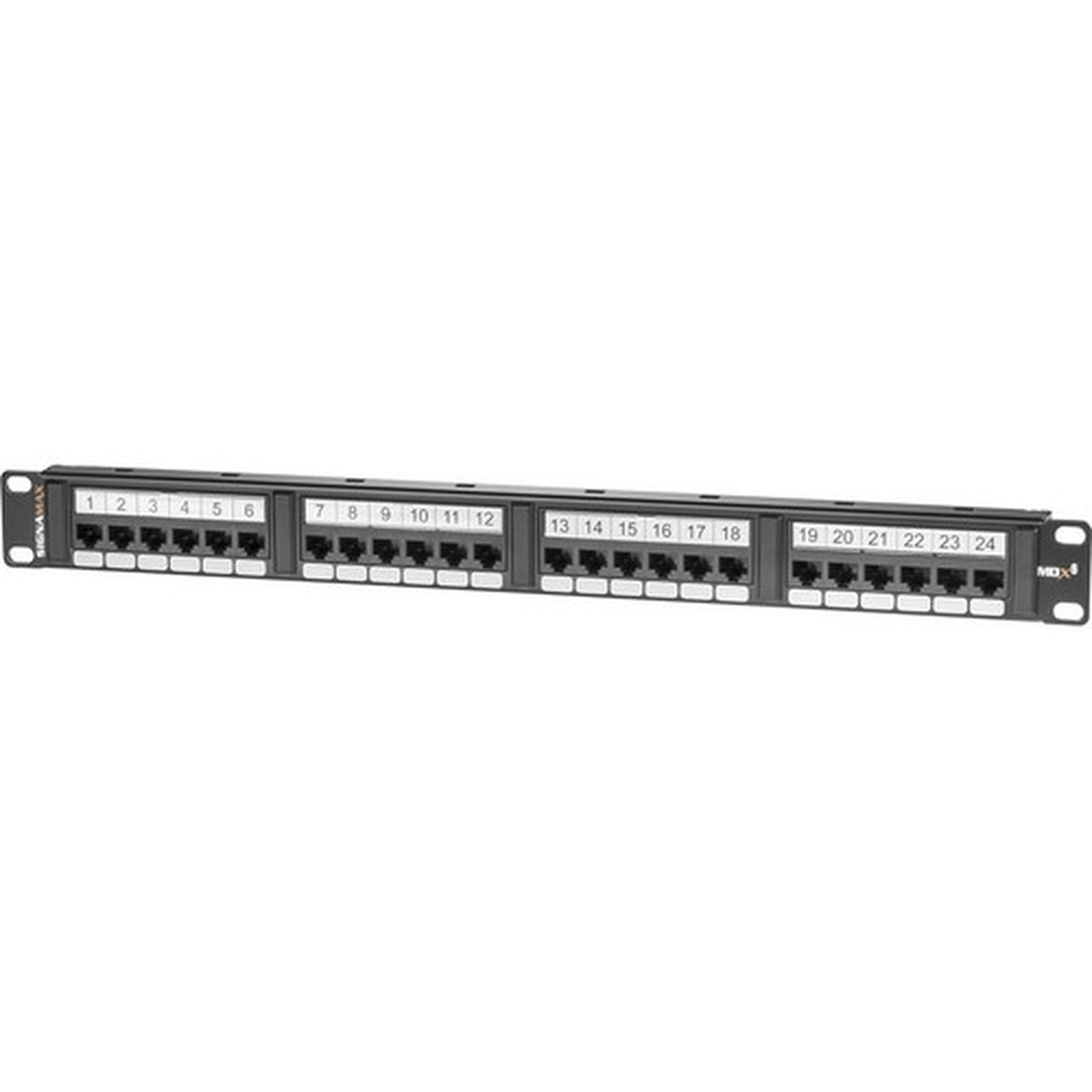

Signamax 24-Port Category 6 MDX-Series Patch Panel, 1U - 24 Port(s) - 24 x RJ-45 - 1U High - Black - 19" Wide - Rack-mountable - TAA (24458MDX-C6)

(No reviews) Write a Review
$243.34
$235.25
$153.02
(You save $90.32 )
SKU: 24458MDX-C6
Weight: 1.45 LBS
Adding to cart… The item has been added
  • Exceeds ANSI/TIA-568-C.2 Category 6 component performance
  • UL listed and TAA compliant
  • Designed with multiple cable management options in the front and rear of the panel to accommodate any install configuration
  • Modular blocks with built-in PCB-based jacks ensure Category 6 parameters
  • Easy-to-read T568A/B wiring scheme color-coded label
  • Standard termination with single-position or multi-pair 110 termination tools
  • Hinged clear windows over each set of ports for quick identification.
    Marketing Information:

    The next step in integration in the complete copper communication solution - SIGNAMAX MDX-Series Patch Panel.

    The MDX was designed based on the best features of our MD and EC-Series panels with a new innovative twist that offers cable management within the same rack space as the panel. Slots were designed in between each block of ports for cable management rings offering custom patch cord management configurations, along with, two different options for port identification. The clear hinged window feature allows for custom marked ports, whereas, the small pads along the bottom of each port offers quick notation. Each panel is equipped with plastic fillers to cover the mounting slots when they are unnecessary. The new and improved SIGNAMAX MDX Patch Panel ensures flexibility at the time of initial installation and during service operations.


    Total Number of Ports: 24
    Number of Network (RJ-45) Ports: 24
    Product Color: Black
    Product Material:
    • Steel
    • Phosphor Bronze
    • Gold

    Form Factor: Rack-mountable
    Compatible Rack Unit: 1U
    Compatible Rack Width: 19"
    Height: 1.75" (44.45 mm)
    Depth: 1.40" (35.56 mm)
    Package Contents:
    • Cat 6 MDX-Series Patch Panels

    TAA Compliant: Yes
    Limited Warranty: 5 Year

[custom-specifications]

Specifications
Manufacturer: Signamax, Inc.
Manufacturer Part Number: 24458MDX-C6
Manufacturer Website Address: http://www.signamax.com
Brand Name: Signamax
Product Series: MDX
Product Name: 24-Port Category 6 MDX-Series Patch Panel, 1U
Product Type: Network Patch Panel
Interfaces/Ports
Total Number of Ports: 24
Number of Network (RJ-45) Ports: 24
Physical Characteristics
Product Color: Black
Product Material:
  • Steel
  • Phosphor Bronze
  • Gold

Form Factor: Rack-mountable
Compatible Rack Unit: 1U
Compatible Rack Width: 19"
Height: 1.75" (44.45 mm)
Depth: 1.40" (35.56 mm)
Miscellaneous
Package Contents:
  • Cat 6 MDX-Series Patch Panels

TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year

[/custom-specifications]

5 Year
