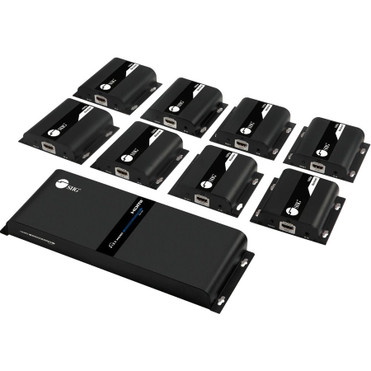

SIIG 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m - 1 Input Device - 8 Output Device - 393.70 ft (120000 mm) Range - 16 x - 1 (CE-H26W11-S1)

Marketing Information:

Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension

• With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1, are sold separately
• Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
• Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
• IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
• High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
• Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty

Connectivity Technology: Wired

Number of Input Devices Supported: 1

Number of Output Devices Supported: 8

Maximum Operating Distance: 393.70 ft (120000 mm)

Graphics Modes: Full HD

Maximum Video Resolution: 1920 x 1080

Network (RJ-45): Yes

HDMI In: Yes

HDMI Out: Yes

Number of Network (RJ-45) Ports: 16

Number of HDMI Inputs: 1

Number of HDMI Outputs: 8

Media Type Supported: Twisted Pair

Twisted Pair Cable Standard: Category 7

Transmitter Height: 1.18" (29.97 mm)

Transmitter Width: 4.37" (111 mm)

Transmitter Depth: 11.81" (299.97 mm)

Receiver Height: 0.93" (23.62 mm)

Receiver Width: 3.70" (93.98 mm)

Receiver Depth: 3.81" (96.77 mm)

Form Factor: Wall Mountable,Surface-mountable

Transmitter Weight (Approximate): 1.81 lb (821 g)

Receiver Weight (Approximate): 5.28 oz (149.69 g)

Package Contents:

• 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
• 9 x Power Adapters
• 1 x IR Blaster Cable
• 8 x IR Receiver Cable
• Quick Start Guide

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
