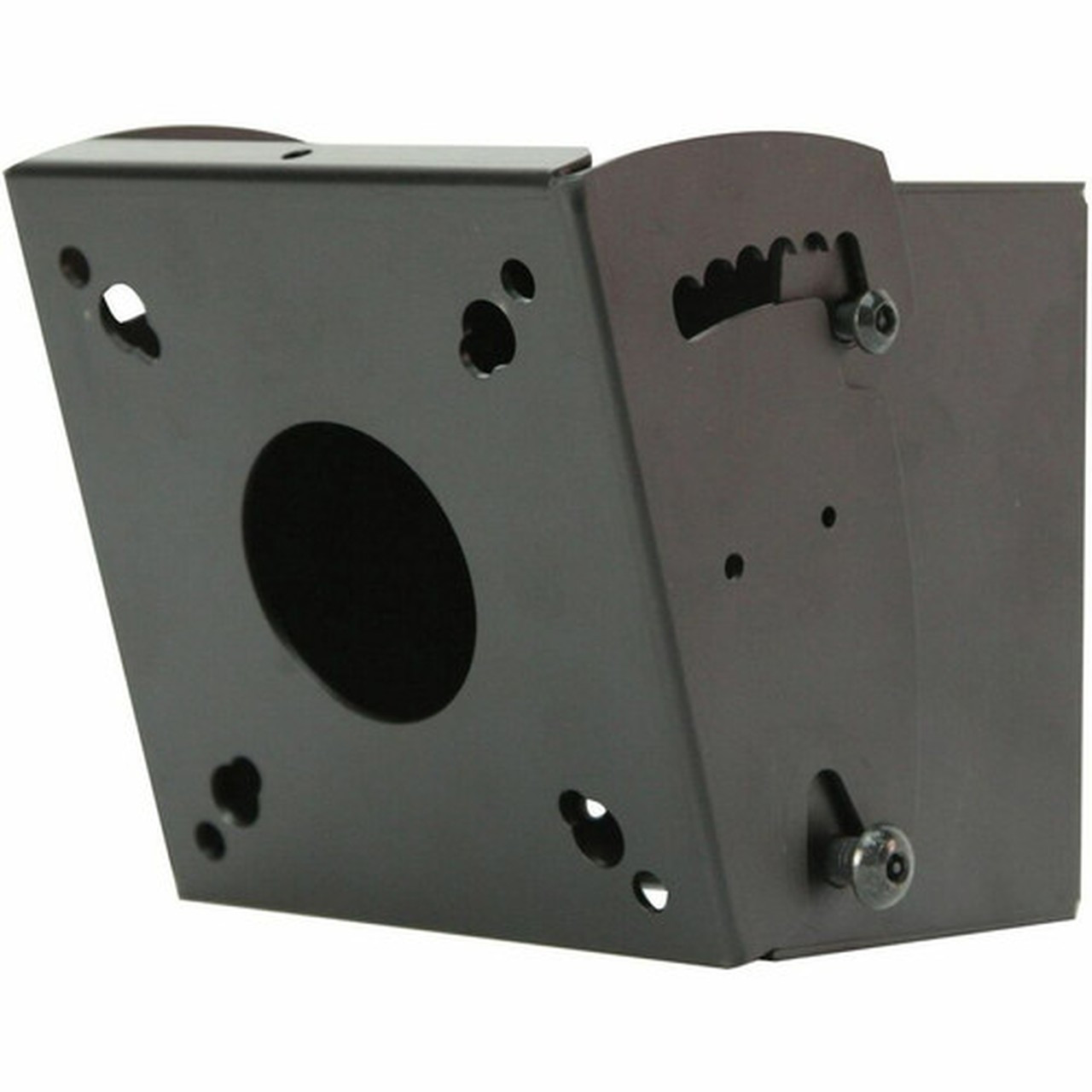

SmartMount® Ceiling Mount Tilt Boxes for up to 90" Displays - Steel - 102 kg (PLCM-2)
- SmartMount Ceiling Mount Tilt Boxes for up to 90" Displays
- Mounting Collar
- Installation Instructions
Marketing Information:
The SmartMount® PLCM-2 Ceiling Mount Tilt Boxes work with all 1.5" NPT extension pipes for versatility, support, and connection. The 1.5" NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.
Device Supported: Flat Panel Display
Maximum Load Capacity: 150 lb (68038.86 g)
Minimum Screen Size Supported: 10"
Maximum Screen Size Supported: 90"
Features: Tilt,360° Swivel,Multiple Viewing Angle,Adjustable Tilt,360° Yaw
Minimum Tilt Angle: -5°
Maximum Tilt Angle: 20°
Mount Function: Swivel,Tilt
Mount Surface: Ceiling
Color Family: Black
Product Color: Black
Product Material: Steel
VESA Mount Compatible: Yes
Mounting Pattern: 75 x 75,100 x 100
Form Factor: Ceiling Mountable
Height: 5.50" (139.70 mm)
Width: 5.60" (142.24 mm)
Depth: 3.50" (88.90 mm)
Weight (Approximate): 2.70 lb (1224.70 g)
Package Contents:
Application/Usage: Ceiling
Indoor/Outdoor: Indoor
Compatibility:
Plasma Screen: 32" to 61"
Country of Origin: United States
UL Listed: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Ceiling plate and extension columns required (sold separately)
- VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
- Additional display mounting adaptor plates available (sold separately)
- PLCM-2 compatible with standard 1.5" NPT pipe (sold separately)
- -5° to 20° adjustable tilt and 360° swivel
[custom-specifications]
| Specifications | |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PLCM-2 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Peerless-AV® |
| Product Line | SmartMount® |
| Product Series | PLCM-2 |
| Product Model | PLCM-2 |
| Product Name | SmartMount Ceiling Mount Tilt Boxes for up to 90" Displays |
| Packaged Quantity | 1 |
| Product Type | Ceiling Mount |
| Product Information | |
| Device Supported | Flat Panel Display |
| Maximum Load Capacity | 150 lb (68038.86 g) |
| Minimum Screen Size Supported | 10" |
| Maximum Screen Size Supported | 90" |
| Features | Tilt,360° Swivel,Multiple Viewing Angle,Adjustable Tilt,360° Yaw |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Mount Function | Swivel,Tilt |
| Mount Surface | Ceiling |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75,100 x 100 |
| Form Factor | Ceiling Mountable |
| Height | 5.50" (139.70 mm) |
| Width | 5.60" (142.24 mm) |
| Depth | 3.50" (88.90 mm) |
| Weight (Approximate) | 2.70 lb (1224.70 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Ceiling |
| Indoor/Outdoor | Indoor |
| Compatibility | Plasma Screen: 32" to 61" |
| Country of Origin | United States |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-options]
| Product | UNISTRUT AND STRUCTURAL CEILING PLATE 4" x 4" Ceiling Plate - Steel - 113 kg |
| SKU | CMJ300 |
| Sale Price | $40.94 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Assembly-Instructions
[/custom-user-manual]
Warranty Infomartion
5 Year
