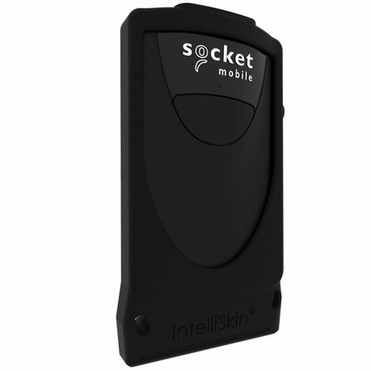

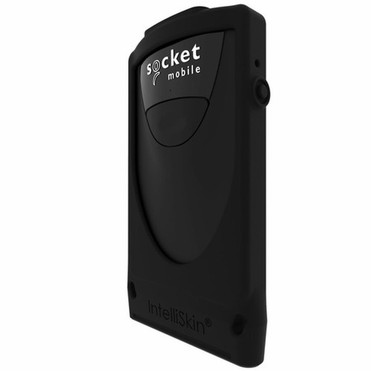

Socket Mobile DuraScan D820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 15" (381 mm) Scan Distance - 1D, 2D (CX4046-3109)
Write a Review
Socket Mobile
Socket Mobile DuraScan D820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 15" (381 mm) Scan Distance - 1D, 2D (CX4046-3109)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
- D820 barcode scanner
- Klip
- Wrist Strap
- 1 year limited Warranty on DuraSled barcode scanner
Marketing Information: Linear Barcode Plus QR Code Scanner
The DuraScan D820 is a linear barcode & QR Code 1D/2D barcode reader with Bluetooth wireless technology. It reads the most popular 2D/1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications. Users can scan barcodes printed on labels or displayed on screens. Designed for mobility, durability and lasting up to two shifts. The external rubberized material increases drop protection. Easy to use and attachable to a mobile device, enabling one-handed operation, it slips neatly into your pocket and fits comfortably in the palm of your hand.
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Light Source: LED
Image Sensor Type: Linear
Scan Pattern: Omni-directional,Linear
Scanning Distance: 15" (381 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 100000 lux
Drop Specification: Multiple 6.5 ft. (2 m) drops to concrete
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 960
Bluetooth: Yes
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 700 mAh
Maximum Battery Recharge Time: 8 Hour
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Weight (Approximate): 71.4 g
Package Contents:
Ingress Protection (IP) Rating: IP40
Application/Usage: Retail,Hospitality,Logistics,Healthcare,Inventory,Transportation,Warehouse,Field Sales/Service,Commercial Service
Platform Supported: Mac,PC,Android
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4046-3109 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | D820 |
| Product Name | DuraScan D820 - 1D/2D Linear Barcode Plus QR Code Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Light Source | LED |
| Image Sensor Type | Linear |
| Scan Pattern | Omni-directional,Linear |
| Scanning Distance | 15" (381 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Multiple 6.5 ft. (2 m) drops to concrete |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 700 mAh |
| Maximum Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -22°F (-30°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Weight (Approximate) | 71.4 g |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP40 |
| Application/Usage | Retail,Hospitality,Logistics,Healthcare,Inventory,Transportation,Warehouse,Field Sales/Service,Commercial Service |
| Platform Supported | Mac,PC,Android |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
1 Year
