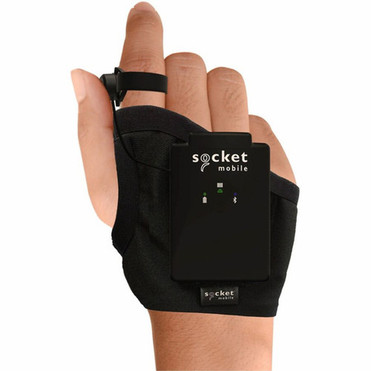

Socket Mobile DuraScan DW930 Barcode Scanner Kit - Cable Connectivity - 15 ft (4572 mm) Scan Distance - 1D - Laser - Bluetooth - IP54 (CX4148-3215)
Write a Review
Socket Mobile
Socket Mobile DuraScan DW930 Barcode Scanner Kit - Cable Connectivity - 15 ft (4572 mm) Scan Distance - 1D - Laser - Bluetooth - IP54 (CX4148-3215)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Default Barcode Symbologies: Bookland EAN, Code 39, Code 39 Full ASCII, Code 93, Code 128, EAN-8/JAN, Ean-13/JAN, GS1 DataBar, GS1 Databar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, UPC A, UPC E
- Supported Barcode Symbologies: 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Discrete 2 of 5, EAN-8, EAN 13, GS1-128, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, Interleaved 2 of 5, Inverse 1D, ISBT 128, Korean 3 of 5, Matrix 2 Of 5, MSI, UPC-A, UPC-E/E1
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Light Source: Laser
Scan Mode: Trigger
Scanning Distance: 15 ft (4572 mm)
Maximum Ambient Light: 86000 lux
Drop Specification:
6 drops to concrete - 1 on each side at 6.6 ft. (2 m)
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 100 mil (2.54 mm)
Features: Notification LED,Curved,Scan Button,Ergonomic Design
Bluetooth: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 700 mAh
Maximum Battery Run Time: 8 Hour
Maximum Battery Recharge Time: 8 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Wearable
Rugged: Yes
Durability: Dust Resistant,Water Resistant
Weight (Approximate): 3.20 oz (90.7 g)
Ingress Protection (IP) Rating: IP65,IP54
Application/Usage: Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse
Platform Supported: Linux,iOS,Android,Mac,Smartphone,PC
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- Laser scan engine guarantees rapid error free data entry
- Perfect for applications that require direct association with a workstation or a notebook
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX41483215 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | DW930 |
| Product Name | DuraScan DW930 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported |
|
| Light Source | Laser |
| Scan Mode | Trigger |
| Scanning Distance | 15 ft (4572 mm) |
| Maximum Ambient Light | 86000 lux |
| Drop Specification | 6 drops to concrete - 1 on each side at 6.6 ft. (2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Features | Notification LED,Curved,Scan Button,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 700 mAh |
| Maximum Battery Run Time | 8 Hour |
| Maximum Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Rugged | Yes |
| Durability | Dust Resistant,Water Resistant |
| Weight (Approximate) | 3.20 oz (90.7 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP54 |
| Application/Usage | Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse |
| Platform Supported | Linux,iOS,Android,Mac,Smartphone,PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
