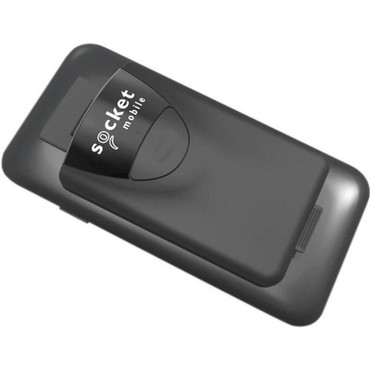

Socket Mobile SocketScan S820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 14.96" (380 mm) Scan Distance - 2D (CX4040-3103)
Write a Review
Socket Mobile
Socket Mobile SocketScan S820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 14.96" (380 mm) Scan Distance - 2D (CX4040-3103)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
- S820 barcode scanner
- Micro USB Charging Cable
- Rechargeable battery (pre-installed)
- Universal Klip
- Get Started Insert
- Klip & FlexGuard for 800 Series
- Wrist Strap
Marketing Information: Linear Barcode Plus QR Code Scanner

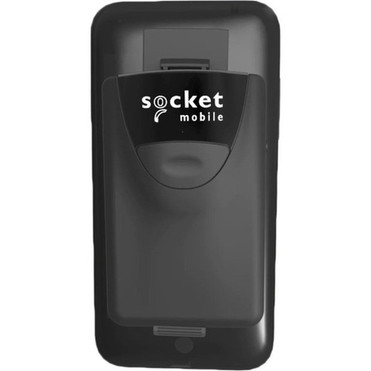

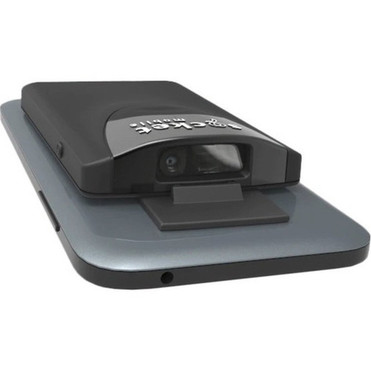

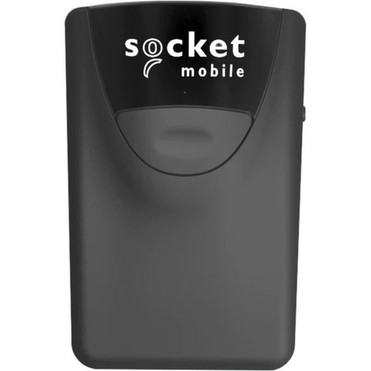

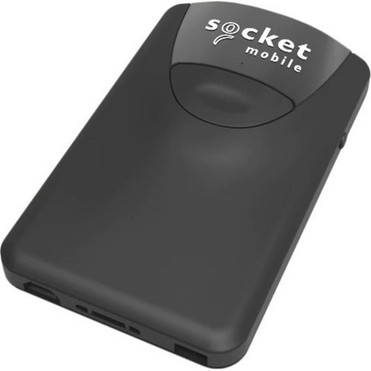

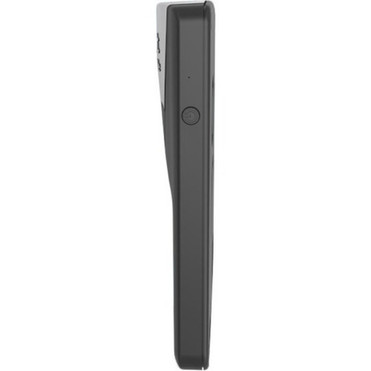

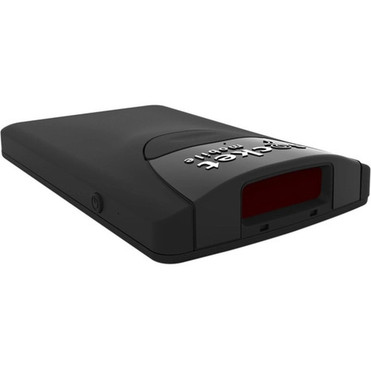

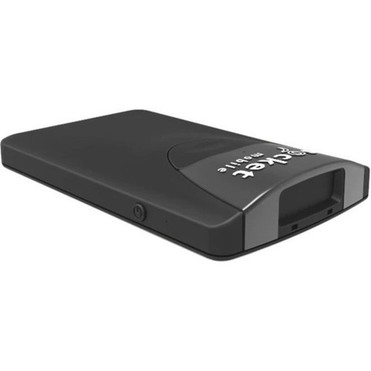

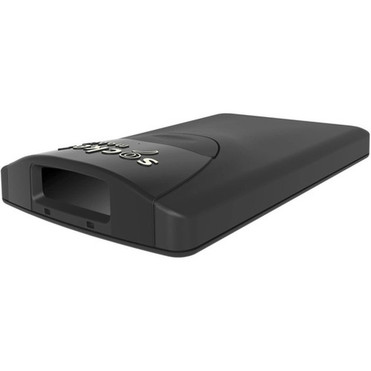

The Socket Mobile S820 is a 1D/2D linear barcode & QR Code barcode reader with Bluetooth wireless technology. Small, thin and easy to use, the reader is optimized for attaching to mobile devices, enabling one-handed operation. The S820 can scan barcodes printed on labels or displayed on device screens. It reads the most popular 2D/1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications.
Approximately the same size as a credit card, measuring less than � inch (1.27cm) thick and weighing less than two ounces, the S820 is one of the smallest and lightest high quality barcode reader available in the market today. The S820 slips neatly into your pocket and fits comfortably in the palm of your hand when attached to a smartphone. It is compatible with all applications used with other Socket Mobile readers with "NO" software update required.
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Light Source: LED
Image Sensor Type: Linear
Scan Pattern: Omni-directional
Scanning Distance: 14.96" (380 mm)
Cable Type Included: USB
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 100000 lux
Drop Specification: Multiple drops to vinyl covered concrete at about 3 ft or 1 m
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Bluetooth: Yes
Form Factor: Handheld
Product Color: Black
Weight (Approximate): 48 g
Package Contents:
Ingress Protection (IP) Rating: IP40
Application/Usage: Retail,Hospitality,Logistics,Healthcare,Inventory,Transportation,Warehouse,Field Sales/Service
Platform Supported: iOS,Android,PC,Mac
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- LED aimer is a perfect choice for patient-facing applications
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4040-3103 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | SocketScan |
| Product Model | S820 |
| Product Name | SocketScan S820 - 1D/2D Linear Barcode Plus QR Code Scanner |
| Packaged Quantity | 50 |
| Package Type | Bulk |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Light Source | LED |
| Image Sensor Type | Linear |
| Scan Pattern | Omni-directional |
| Scanning Distance | 14.96" (380 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Multiple drops to vinyl covered concrete at about 3 ft or 1 m |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Weight (Approximate) | 48 g |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP40 |
| Application/Usage | Retail,Hospitality,Logistics,Healthcare,Inventory,Transportation,Warehouse,Field Sales/Service |
| Platform Supported | iOS,Android,PC,Mac |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
Warranty Information
1 Year
