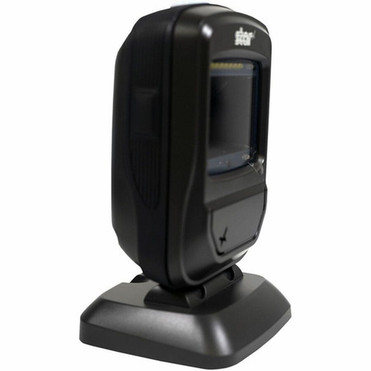

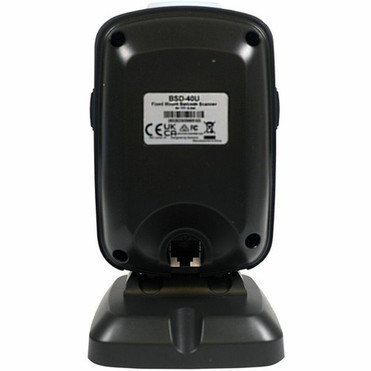

Star Micronics BSD-40U Desktop 1D/2D Barcode Scanner - Cable Connectivity - 8.66" (220 mm) Scan Distance - 1D, 2D - LED - CMOS - USB, (37950900)
Write a Review
Star Micronics
Star Micronics BSD-40U Desktop 1D/2D Barcode Scanner - Cable Connectivity - 8.66" (220 mm) Scan Distance - 1D, 2D - LED - CMOS - USB, (37950900)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec
1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)
Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Scanning Distance: 8.66" (220 mm)
Field of View (Horizontal): 51°
Field of View (Vertical): 32°
Reading Angle (Skew): 45°
Reading Angle (Pitch): 50°
Reading Angle (Roll): 360°
Motion Tolerance: 98.43 in/s (2500 mm/s)
Drop Specification:
1.2m drop Resistance
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 14kV
Contact Electrostatic Discharge (+/-): 8kV
Host Interface: USB,Serial
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Desktop
Color Family: Black
Product Color: Black
Durability: Dust Resistant
Height: 5.79" (147 mm)
Width: 3.15" (80 mm)
Length: 3.23" (82 mm)
Weight (Approximate): 10.48 oz (297 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail,Hospitality,Healthcare
Platform Supported: iOS,Android
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- LED aimer is a perfect choice for patient-facing applications
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Star Micronics, Inc |
| Manufacturer Part Number | 37950900 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Brand Name | Star Micronics |
| Product Model | BSD-40U |
| Product Name | BSD-40U Desktop 1D/2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Light Source | LED |
| Image Sensor Type | CMOS |
| Scan Mode | Trigger |
| Scanning Distance | 8.66" (220 mm) |
| Field of View (Horizontal) | 51° |
| Field of View (Vertical) | 32° |
| Reading Angle (Skew) | 45° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 98.43 in/s (2500 mm/s) |
| Drop Specification | 1.2m drop Resistance |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 14kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Desktop |
| Color Family | Black |
| Product Color | Black |
| Durability | Dust Resistant |
| Height | 5.79" (147 mm) |
| Width | 3.15" (80 mm) |
| Length | 3.23" (82 mm) |
| Weight (Approximate) | 10.48 oz (297 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Hospitality,Healthcare |
| Platform Supported | iOS,Android |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
