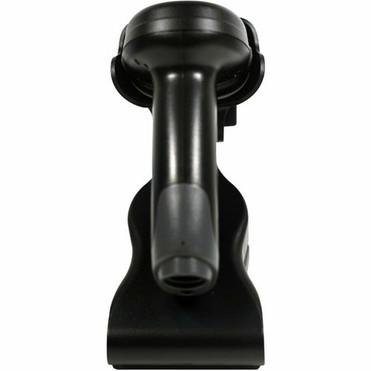

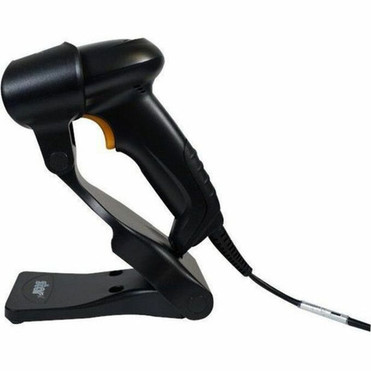

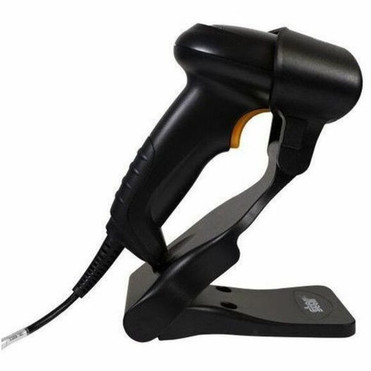

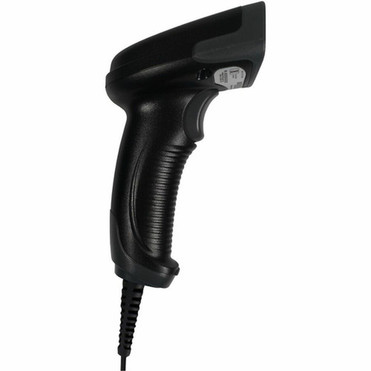

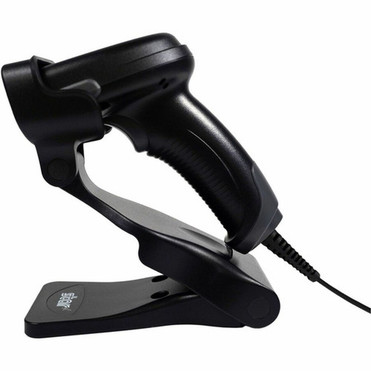

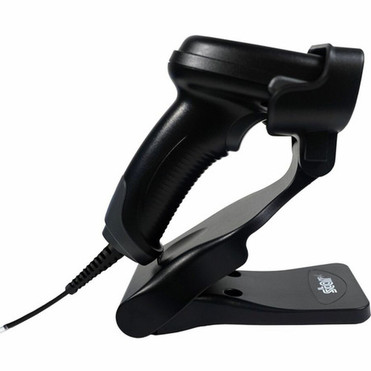

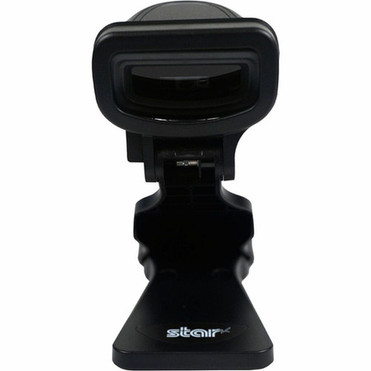

Star Micronics BSH-20U Handheld Wired USB 1D/2D Barcode Scanner - Cable Connectivity - 10.24" (260 mm) Scan Distance - 1D, 2D - LED - (37950920)
Write a Review
Star Micronics
Star Micronics BSH-20U Handheld Wired USB 1D/2D Barcode Scanner - Cable Connectivity - 10.24" (260 mm) Scan Distance - 1D, 2D - LED - (37950920)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both

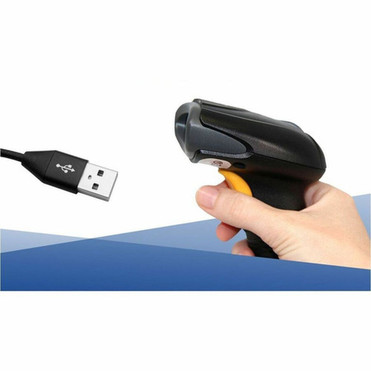

- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- BSH-20U Handheld Wired USB 1D/2D Barcode Scanner
- stand
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec
1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)
Light Source: LED
Image Sensor Type: CMOS
Scan Mode: Trigger
Scanning Distance: 10.24" (260 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 55°
Reading Angle (Pitch): 55°
Reading Angle (Roll): 360°
Drop Specification:
1.2m drop Resistance
Minimum Print Contrast: 20%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 640 x 480
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 15kV
Contact Electrostatic Discharge (+/-): 8kV
Features: Beep,Notification LED
Host Interface: USB,Serial
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 2.72" (69 mm)
Width: 4.06" (103 mm)
Length: 5.75" (146 mm)
Weight (Approximate): 4.41 oz (125 g)
Package Contents:
Ingress Protection (IP) Rating: IP42
Application/Usage: Retail,Hospitality,Healthcare
Platform Supported: iOS,Android
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Star Micronics, Inc |
| Manufacturer Part Number | 37950920 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Brand Name | Star Micronics |
| Product Model | BSH-20U |
| Product Name | BSH-20U Handheld Wired USB 1D/2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Light Source | LED |
| Image Sensor Type | CMOS |
| Scan Mode | Trigger |
| Scanning Distance | 10.24" (260 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Reading Angle (Skew) | 55° |
| Reading Angle (Pitch) | 55° |
| Reading Angle (Roll) | 360° |
| Drop Specification | 1.2m drop Resistance |
| Minimum Print Contrast | 20% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 640 x 480 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 15kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Features | Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 2.72" (69 mm) |
| Width | 4.06" (103 mm) |
| Length | 5.75" (146 mm) |
| Weight (Approximate) | 4.41 oz (125 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Hospitality,Healthcare |
| Platform Supported | iOS,Android |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Star Micronics Barcode Scanner Serial Adapter Kit - Black |
| SKU | 37955360 |
| Sale Price | $85.60 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
