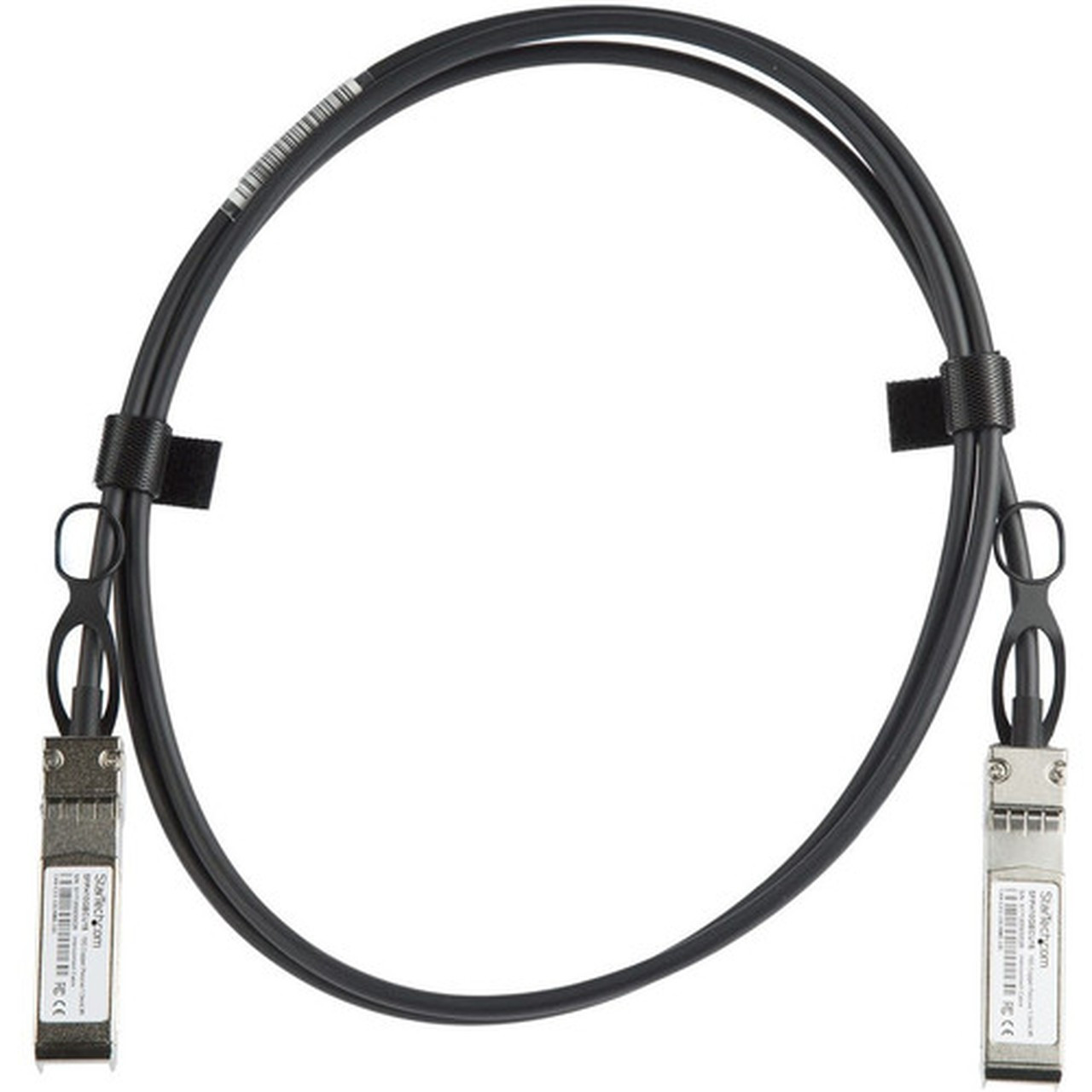

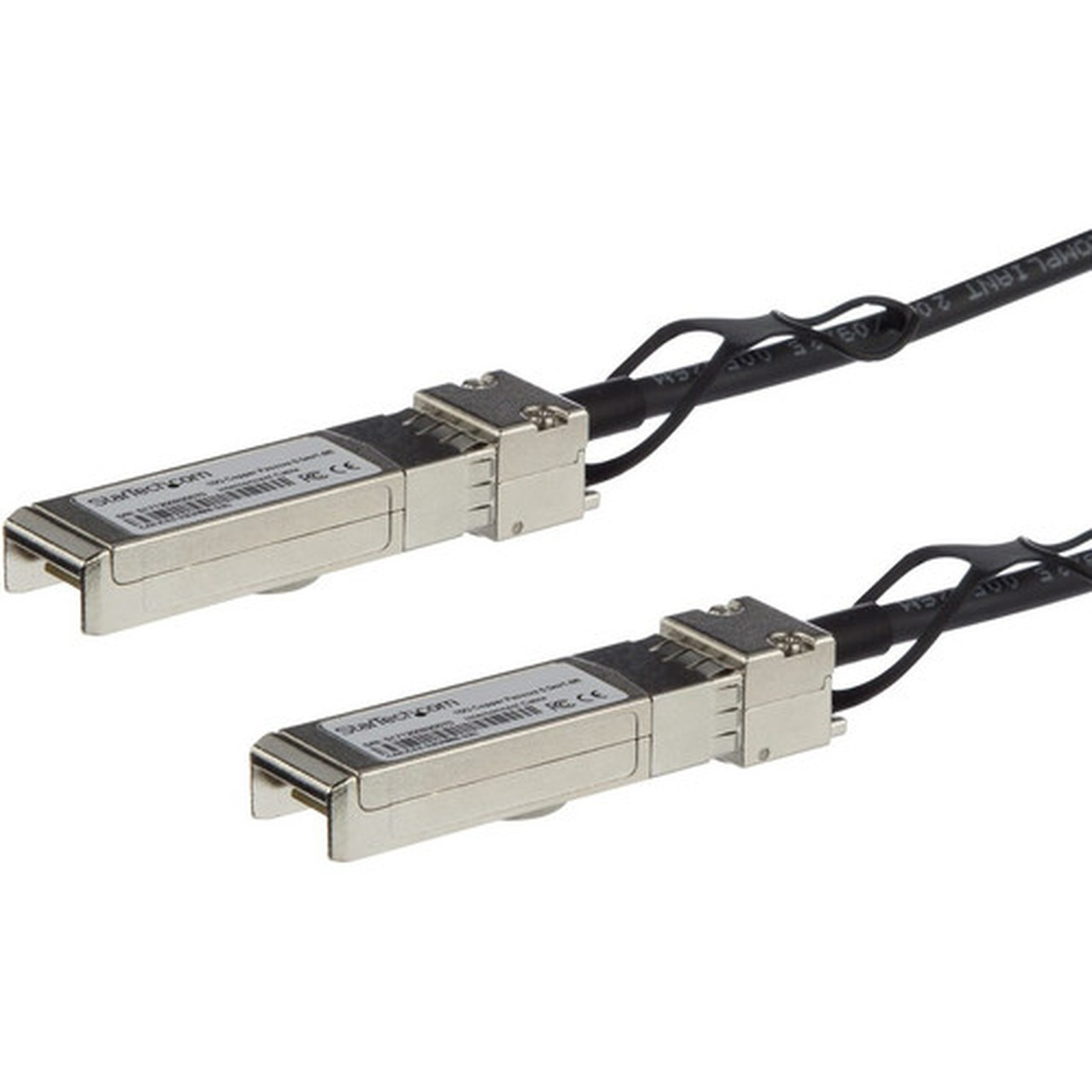

StarTech.com 1.5m 10G SFP+ to SFP+ Direct Attach Cable for Cisco SFP-H10GB-CU1-5M 10GbE SFP+ Copper DAC 10Gbps Passive Twinax - 100% | (SFPH10GBCU15)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- FirePOWER Firewall
- ASR9000 Router
- ASR1000 Router
- C9300 Switch
- C3850 Switch
Marketing Information:
The SFPH10GBCU15 is a Cisco SFP-H10GB-CU1-5M compatible direct-attach copper SFP+ cable that's designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Cable Type: Twinaxial
Cable Length: 4.9 ft
Connector Type on First End: SFP+ Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x SFP+ Network - Male
Connector Type on Second End: SFP+ Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x SFP+ Network - Male
Device Supported: Network Device,Switch,Server,Router,Transceiver,Network Firewall,Rack Server
American Wire Gauge: 30 AWG
Data Transfer Rate: 10 Gbit/s
Features: Passive,Hot-swappable
Product Color: Black
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 89 g
Compatibility: Cisco:
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: Lifetime
- 100% CISCO SFP-H10GB-CU1-5M COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, ASR1000, C9300, C3850 and others
- TECHNICAL SPECS: 1.5m (4.9ft)
10 Gbps
Passive Twinax (Copper)
2x SFP+ Pluggable Connector
100 Ohm Impedance
30 AWG Wire Gauge
PVC Cable Jacket
Hot swappable
MSA Compliant - TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- Hot-swappable
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
[custom-specifications]
Specifications | |
Manufacturer | StarTech.com |
Manufacturer Part Number | SFPH10GBCU15 |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | SFP+ Direct Attach Cable - 1.5 m (4.9 ft.) |
Packaged Quantity | 1 |
Product Type | Network Cable |
Technical Information | |
Cable Type | Twinaxial |
Cable Length | 4.9 ft |
Connector Type on First End | SFP+ Network - Male |
Connector Gender on First End | Male |
Connector on First End Details | 1 x SFP+ Network - Male |
Connector Type on Second End | SFP+ Network - Male |
Connector Gender on Second End | Male |
Connector on Second End Details | 1 x SFP+ Network - Male |
Device Supported | Network Device,Switch,Server,Router,Transceiver,Network Firewall,Rack Server |
American Wire Gauge | 30 AWG |
Data Transfer Rate | 10 Gbit/s |
Features | Passive,Hot-swappable |
Physical Characteristics | |
Product Color | Black |
Product Material | Copper |
Jacket Material | Polyvinyl Chloride (PVC) |
Weight (Approximate) | 89 g |
Miscellaneous | |
Compatibility | Cisco:
|
Environmentally Friendly | Yes |
Country of Origin | China |
Warranty | |
Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
