StarTech.com USB serial adapter - RS422 - RS485 - Industrial - serial - 1 port - Serial adapter - USB - RS-422 - RS-485 - black (ICUSB422IS)

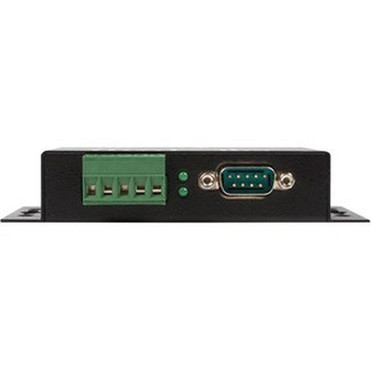

- 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
- 1 x 6ft USB A to B Cable
- 1 x Driver CD
- 1 x User Manual
Marketing Information:
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Host Interface: USB 2.0 Type B
Platform Supported: PC,Linux,Mac
Number of Serial Ports (External): 1
Height: 0.90" (22.86 mm)
Width: 2.50" (63.50 mm)
Depth: 4.60" (116.84 mm)
Weight (Approximate): 181.4 g
Package Contents:
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 2 Year
- Provides one RS422/485 port while powering the device through USB
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Compatible with both USB 2.0 and USB 1.1
- RS422/485 Baud rate up to 921.6 Kbps
- Supports DB9 and terminal block connector
- Optical Isolation and Surge Protection (2500 Vrms)
- Supports 4-wire RS422 and 2-wire RS485 applications
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ICUSB422IS |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | ICUSB422IS |
| Product Name | 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter | Technical Information |
| Host Interface | USB 2.0 Type B |
| Platform Supported | PC,Linux,Mac | Interfaces/Ports |
| Number of Serial Ports (External) | 1 | Physical Characteristics |
| Height | 0.90" (22.86 mm) |
| Width | 2.50" (63.50 mm) |
| Depth | 4.60" (116.84 mm) |
| Weight (Approximate) | 181.4 g | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes | Warranty |
| Limited Warranty | 2 Year |
