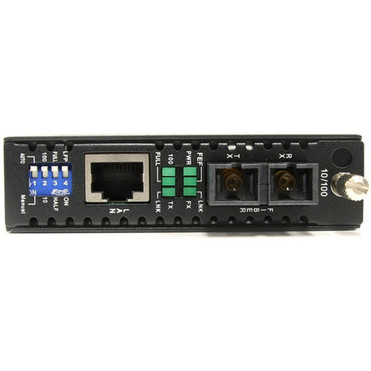

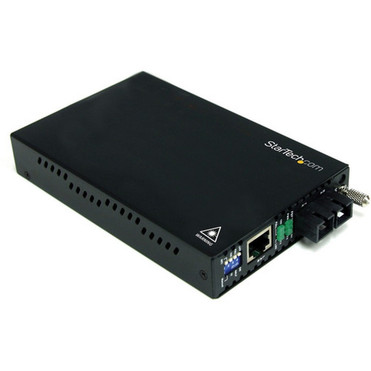

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km - Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 (ET90110SM302)
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
- Maximum Fiber Cable length of 30 km
- Supports full or half-duplex operation
- Easy to use and install
- Marketing Information:
- Optical Fiber
- Twisted Pair
- 10/100Base-TX
- 100Base-FX
- Desktop
- Rack-mountable
- 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- 1 x Universal Power Adapter
- 1 x Grounding Screw
- 1 x Instruction Manual
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

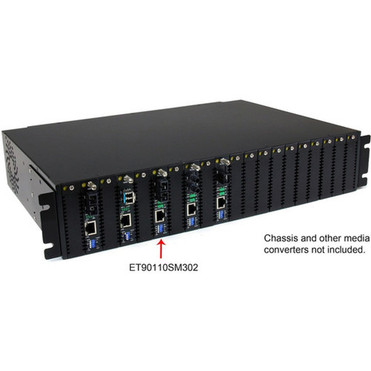

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Total Number of Ports: 2Network (RJ-45): YesDVI: NoUSB: NoNumber of Network (RJ-45) Ports: 1Number of SC Ports: 1SC Port Type: DuplexMedia Type Supported:[custom-specifications]
Manufacturer: StarTech.com
Manufacturer Part Number: ET90110SM302
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 18.6 Mile
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX

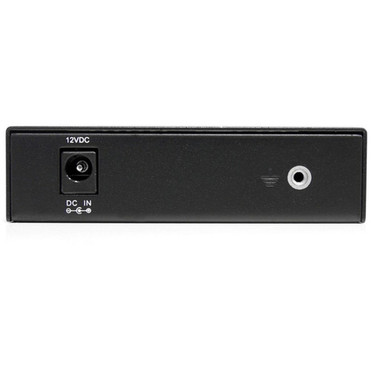

Power Description
Power Source: AC Adapter
Power Consumption: 19.20 W
Plug/Connector Type: Type M
Physical Characteristics
Form Factor:
- Desktop
- Rack-mountable
Height: 0.90" (22.86 mm)
Width: 3.40" (86.36 mm)
Depth: 6.10" (154.94 mm)
Weight (Approximate): 391.2 g
Miscellaneous
Package Contents:
- 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- 1 x Universal Power Adapter
- 1 x Grounding Screw
- 1 x Instruction Manual
Environmentally Friendly: Yes
Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
