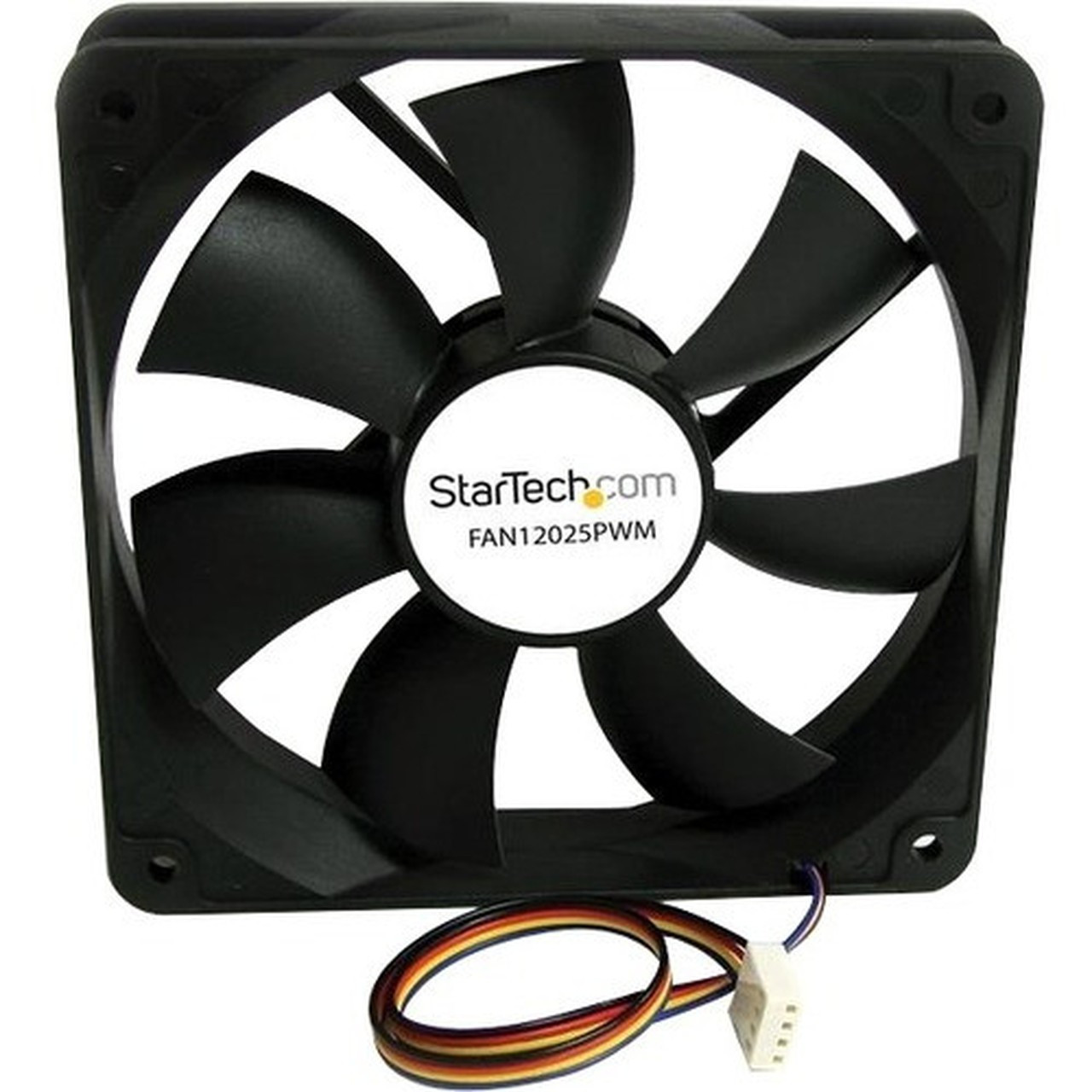

StarTech.com 120x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - 1 x 120mm - 2200rpm Lubricate Bearing (FAN12025PWM)

• 4-pin Pulse Width Modulation (PWM) motherboard connector
• Ever Lubricate Bearing design
• Includes a PWM Y-split cable

Marketing Information

: Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case. The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Number of Fans

: 1

Fan Bearing Type

: Lubricate Bearing

Fan Speed (rpm)

: 2200

Air Flow

: 1 x 78.4 CFM

Connectors

: 4-pin PWM

Material

: Plastic Fan Enclosure

Fan Diameter

: 1 x 120 mm

Fan Height

: 0.98" (25 mm)

Fan Width

: 4.72" (120 mm)

Fan Depth

: 4.72" (120 mm)

Weight (Approximate)

: 118 g

Package Contents

:
• 120x25mm Computer Case Fan with PWM - PulseWidth Modulation Connector

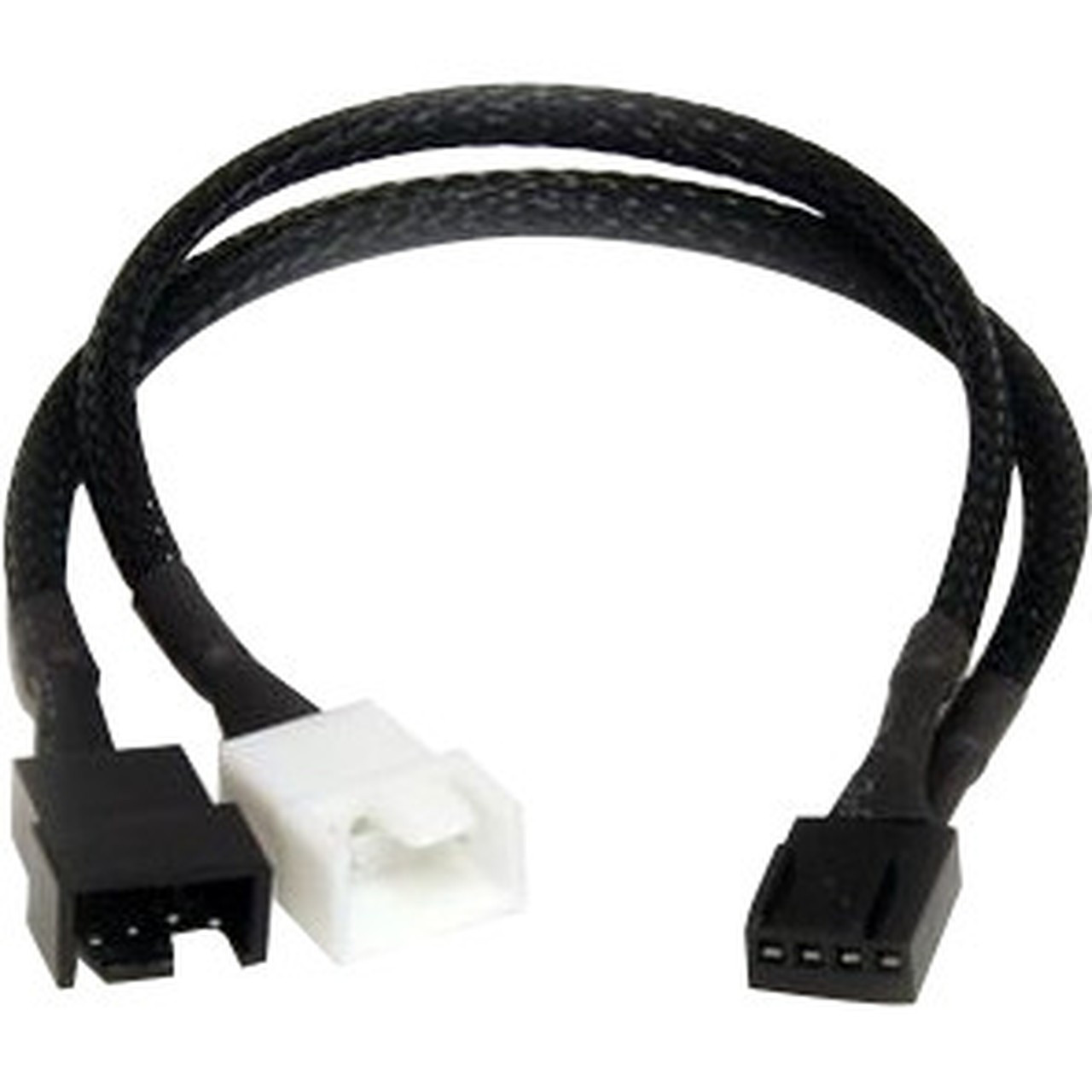

• 1 x 9 inch PWM Y-Cable

Application/Usage

: Case

Environmentally Friendly

: Yes

Environmental Certification

:
• REACH
• RoHS
• WEEE

Limited Warranty

: 2 Year

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: FAN12025PWM
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 120x25mm Computer Case Fan with PWM - PulseWidth Modulation Connector
Packaged Quantity: 1
Product Type: Cooling Fan
Fan Information
Number of Fans: 1
Fan Bearing Type: Lubricate Bearing
Fan Speed (rpm): 2200
Air Flow: 1 x 78.4 CFM
Interfaces/Ports
Connectors: 4-pin PWM
Physical Characteristics
Material: Plastic Fan Enclosure
Fan Diameter: 1 x 120 mm
Fan Height: 0.98" (25 mm)
Fan Width: 4.72" (120 mm)
Fan Depth: 4.72" (120 mm)
Weight (Approximate): 118 g
Miscellaneous
Package Contents:

• 120x25mm Computer Case Fan with PWM - PulseWidth Modulation Connector
• 1 x 9 inch PWM Y-Cable

Application/Usage: Case
Environmentally Friendly: Yes
Environmental Certification:

• REACH
• RoHS
• WEEE

Warranty
Limited Warranty: 2 Year
