StarTech.com 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cord, - (16NM8-RACK-MOUNT-PDU)
Write a Review
StarTech.com
StarTech.com 16-Outlet Horizontal Rack Mount Metered PDU, 1U Server Power Strip w/Surge Protector, 125V/15A, 8ft (2.4m) Power Cord, - (16NM8-RACK-MOUNT-PDU)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 16-Outlets PDU
- Quick-Start Guide
PDU Type: Metered
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 1 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 16 x NEMA 5-15R
Protection Type: Surge Protection,Circuit Breaker
Features: LCD Display,LED Status Indicator
Input Voltage: 120 V AC
Output Voltage: 125 V AC,120 V AC
Power Source: Power Supply
Input Current: 15 A
Color Family: Black
Product Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 8 ft (2.44 m)
Height: 1.70" (43.18 mm)
Width: 19" (482.60 mm)
Length: 3.80" (96.52 mm)
Weight (Approximate): 4.40 lb (1995.81 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Storage Temperature: 14°F (-10°C)
Maximum Storage Temperature: 122°F (50°C)
Minimum Operating Humidity: 5%
Maximum Operating Humidity: 95%
Package Contents:
Application/Usage: Server Rack/Cabinet,Data Center
TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- 16-OUTLET 1U RACK MOUNTED METERED PDU: 16x NEMA 5-15R power outlets; 125V max and 15A circuit breaker; Built-in 8ft (2.4m) NEMA 5-15P power cord; Ideal power supply strip for 19"" racks in server rooms/closets, data center, and testing labs
- METERED POWER DISTRIBUTION UNIT: Large-font display with optional backlight for real-time monitoring of key power parameters: voltage (V), current (A), wattage (W), and power factor (PF), which indicates the efficiency of the connected devices

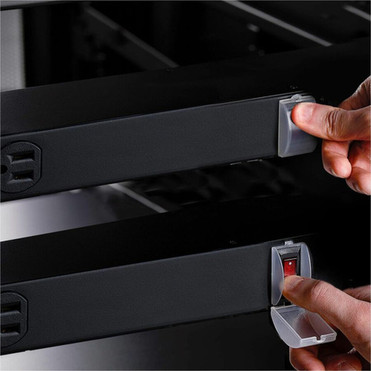

- SURGE PROTECTOR: Self-tripping MOV design with mechanical trigger instantly cuts power during surges to protect connected devices; Includes LED status indicator, resettable 15A circuit breaker, and safety cover to prevent accidental resets
- RACK MOUNTABLE: 1U horizontal rackmount PDU for EIA-310-compliant 19-inch server racks/cabinets that are 4in (10.1cm) or deeper; Made of cold-rolled steel w/textured finish for sturdiness & long-lasting durability; 6x rear and 2x front electrical outlets
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA-compliant rack mount PDU is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 16NM8-RACK-MOUNT-PDU |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 16-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 16 x NEMA 5-15R |
| Protection Type | Surge Protection,Circuit Breaker |
| Features | LCD Display,LED Status Indicator |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC,120 V AC |
| Power Source | Power Supply |
| Input Current | 15 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 8 ft (2.44 m) |
| Height | 1.70" (43.18 mm) |
| Width | 19" (482.60 mm) |
| Length | 3.80" (96.52 mm) |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 14°F (-10°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Server Rack/Cabinet,Data Center |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
