StarTech.com 1ft/30cm USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, RS232, Changeable DB9 Nuts/Screws, - Add a DB9 null (1P1FFCN-USB-SERIAL)
Write a Review
StarTech.com
StarTech.com 1ft/30cm USB to Null Modem Serial Adapter Cable, COM Retention, FTDI, RS232, Changeable DB9 Nuts/Screws, - Add a DB9 null (1P1FFCN-USB-SERIAL)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- USB to Serial Adapter
- 2 x DB9 Screws
- 1 x Quick-Start Guide
Cable Type: Serial/USB
Cable Length: 1 ft (0.30 m)
Connector Type on First End: USB 2.0 Type A
Connector Gender on First End: Male
Connector on First End Details: 1 x 4 pin USB 2.0 Type A - Male
Connector Type on Second End: DB-9 RS-232 Serial
Connector Gender on Second End: Female
Connector on Second End Details: 1 x 9 pin DB-9 RS-232 Serial - Female
Connector Plating: Gold
Shielding: Yes
Device Supported: Desktop Computer,Notebook,Serial Adapter,Peripheral Device,Sensor,Monitor,Barcode Scanner,Receipt Printer,POS Device,Digital Signage
Features: Rugged,EMI/RF Protection,Molded
Color Family: Black
Product Color: Black
Shielding Material: Copper
Package Contents:
Application/Usage: Data Transmission,Industrial
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 nuts, or install the included DB9 screws for compatibility with serial peripheral devices/cables; Add a null modem RS232 port to a computer using a USB-A port

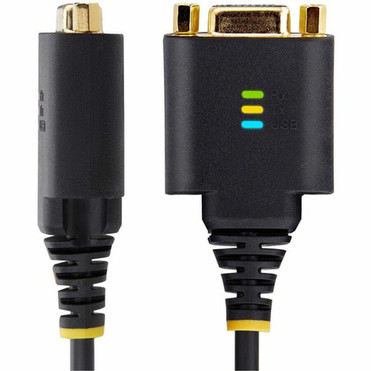

- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign; Resolve DCE/DTE conflicts without using cross-wired cables/adapters
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Extended operating temperature of -40°C to 80°C
- TECH SPECS: 1-foot (30-centimeter) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte RX and 256 Byte TX FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 1P1FFCN-USB-SERIAL |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | USB to Serial Adapter |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | Serial/USB |
| Cable Length | 1 ft (0.30 m) |
| Connector Type on First End | USB 2.0 Type A |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 4 pin USB 2.0 Type A - Male |
| Connector Type on Second End | DB-9 RS-232 Serial |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x 9 pin DB-9 RS-232 Serial - Female |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Desktop Computer,Notebook,Serial Adapter,Peripheral Device,Sensor,Monitor,Barcode Scanner,Receipt Printer,POS Device,Digital Signage |
| Features | Rugged,EMI/RF Protection,Molded |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shielding Material | Copper |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Data Transmission,Industrial |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year
