StarTech.com 2ft/60cm 2-Port USB to Serial Adapter Cable, COM Retention, FTDI, DB9 RS232, Changeable DB9 Screws/Nuts, - Add two DB9 to (2P1FFC-USB-SERIAL)

Name: StarTech.com 2ft/60cm 2-Port USB to Serial Adapter Cable, COM Retention, FTDI, DB9 RS232, Changeable DB9 Screws/Nuts, - Add two DB9 to (2P1FFC-USB-SERIAL)
Brand: StarTech.com
SKU: 2P1FFC-USB-SERIAL
Price: 88.72 CAD
Availability: InStock

(No reviews) Write a Review

$102.06

$99.00

$88.72

(You save $13.34 )

SKU: 2P1FFC-USB-SERIAL

UPC: 65030898393

Weight: 1.00 LBS

Current Stock: 335

Quantity:

Adding to cart… The item has been added

Twitter

Description
Specifications
Options
User Manual
Warranty Information

INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to serial devices using the pre-installed DB9 nuts, or install the included DB9 screws for compatibility with serial peripheral devices/cables; Add two DB9 RS-232 ports to a computer, using a USB-A port
LED INDICATORS: Each port has dedicated Transmit and Receive LED indicators offering real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted
BUILD QUALITY: One-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the 2-port serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors; Mounting bracket included
TECH SPECS: 2x DB9 RS232 Ports; 1ft (30.5cm) cable length between hub and peripherals (2ft/61cm total product length); FTDI FT2232H Chipset; Max Baud Rate: 921.6Kbps; 4KB FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits

Marketing Information

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 2ft (61cm) straight through 2-Port USB to Serial Adapter Cable.

Serial Port Expansion

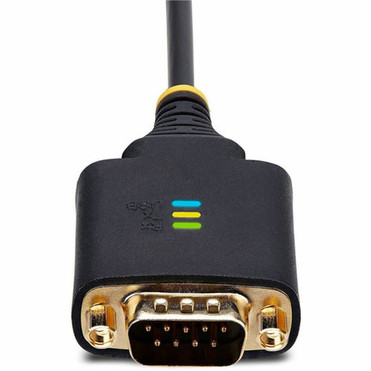

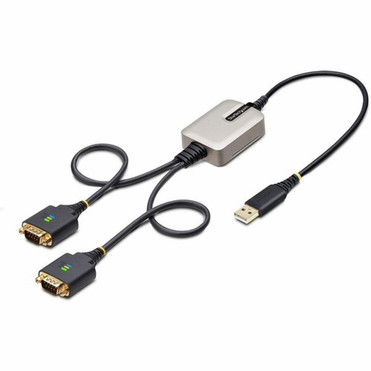

The Dual-Port USB Serial Adapter adds two RS-232 serial DB/DE-9 (male) connectors to a desktop or laptop via a single USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted DB-9 nuts or install the included DB-9 thumbscrews for compatibility with other serial peripheral devices or cables.

LED Indicators

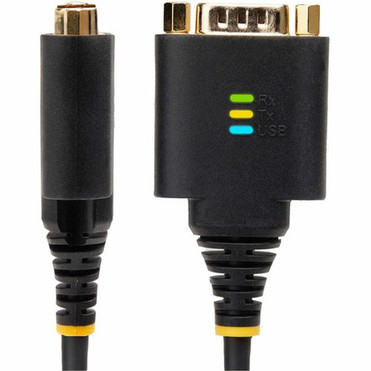

Data transmission and reception LED indicators for each port on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity. The included mounting bracket allows the hub of the serial adapter to be mounted to a desired surface.

Cable Type

Cable Length

Connector Type on First End

Connector Gender on First End

Connector on First End Details

Connector Type on Second End

Connector Gender on Second End

Connector on Second End Details

Connector Plating

Shielding

Device Supported

Desktop Computer
Notebook
Peripheral Device
Monitor
Sensor
Barcode Scanner
Receipt Printer
POS Device
LED
Digital Signage
Computer

Data Transfer Rate

Features

ESD Protection
LED Indicator
Molded
EMI/RF Protection
Rugged

Color Family

Product Color

Product Material

Shielding Material

Weight (Approximate)

Package Contents

2-Port USB to Serial Adapter
1 x Mounting Bracket
4 x DB9 Screws
1 x Quick-Start Guide

Environmentally Friendly

Limited Warranty

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 2P1FFCUSBSERIAL
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Serial/USB Data Transfer Cable
Packaged Quantity: 1
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial/USB
Cable Length: 2 ft

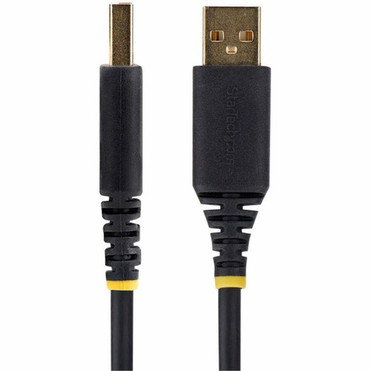

Connector Type on First End: USB 2.0 Type A - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 4-pin USB 2.0 Type A - Male
Connector Type on Second End: DB-9 RS-232 - Male
Connector Gender on Second End: Male
Connector on Second End Details: 2 x 9-Pin DB-9 RS-232 - Male
Connector Plating: Gold
Shielding: Yes
Device Supported:

Desktop Computer
Notebook
Peripheral Device
Monitor
Sensor
Barcode Scanner
Receipt Printer
POS Device
LED
Digital Signage
Computer

Data Transfer Rate: 480 Mbit/s
Features:

ESD Protection
LED Indicator
Molded
EMI/RF Protection
Rugged

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Thermoplastic Elastomer (TPE)
Shielding Material: Copper
Weight (Approximate): 110.6 g
Miscellaneous
Package Contents:
