- Allows two VGA source devices to provide video and audio to two displays / projectors
- Maximum Resolution of up to 1920 x 1440 @ 85Hz
- Video bandwidth 250 MHz

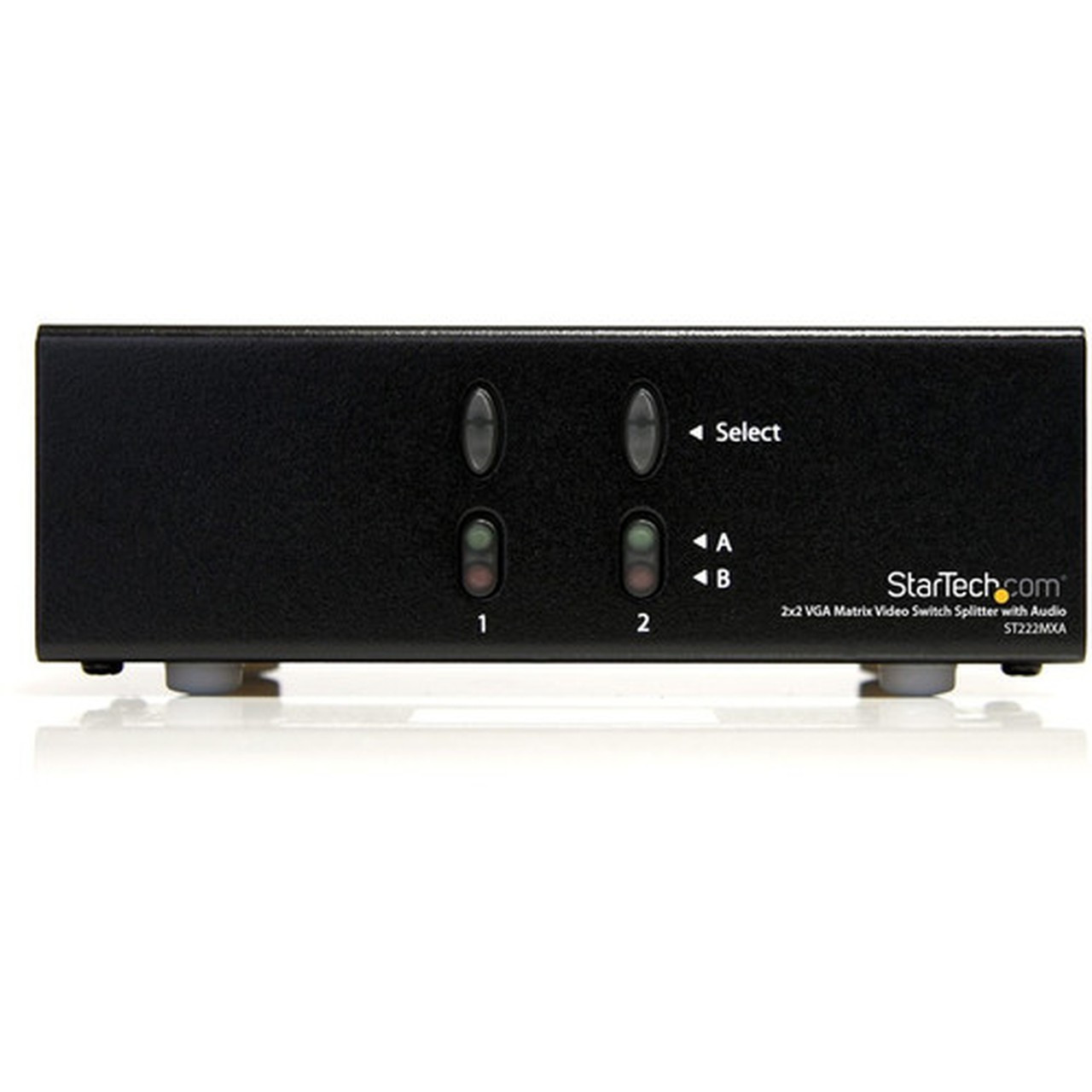

- Front panel selection buttons
- 65m (213ft) Maximum cable length
- 3.5mm stereo audio connections
- Audio Frequency Response 20Hz~20KHz
- Supports DDC, DDC2, DDC2B
- Supports Multi-Sync video types including RGBHV, RGsB, RGBS
- Marketing Information:
- Computer
- Display
- Projector
- 2x2 VGA Matrix Video Switch Splitter with Audio
- 1 x Power Adapter
- 1 x Instruction Manual
The ST222MXA 2x2 VGA Matrix Switcher/Splitter allows you to share 2 distinct VGA inputs (as well as a corresponding audio source), between 2 independent displays or projectors.
Providing convenient push-button control, the VGA Matrix Switcher/Splitter allows each of the 2 input VGA signals and the corresponding audio, to be switched individually - meaning that you can have a different source showing on each display, or one source showing on both, offering maximum flexibility and control.
To ensure optimized VGA distribution and signal management over longer distance signal transmissions, the ST222MXA VGA Matrix Switch features a built-in signal booster that facilitates installation of displays at distances of up to 213-feet (65 meters) away from the source device, while maintaining flawless signal integrity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connectivity Technology: CableNumber of Input Devices Supported: 2Device Supported:[custom-specifications]
Manufacturer: StarTech.com
Manufacturer Part Number: ST222MXA
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2x2 VGA Matrix Video Switch Splitter with Audio
Packaged Quantity: 1
Product Type: Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 2
Device Supported:
- Computer
- Display
- Projector
Number of Displays Supported: 2
Video
Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
VGA In: Yes
VGA Out: Yes
Number of VGA Inputs: 2
Number of VGA Outputs: 2
Media & Performance
Maximum Operating Distance: 213 ft (64922.40 mm)
Physical Characteristics
Form Factor: Desktop
Height: 1.60" (40.64 mm)
Width: 3.10" (78.74 mm)
Depth: 5.10" (129.54 mm)
Weight (Approximate): 462.1 g
Miscellaneous
Package Contents:
- 2x2 VGA Matrix Video Switch Splitter with Audio
- 1 x Power Adapter
- 1 x Instruction Manual
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
[/custom-specifications]
Warranty Infomartion
2 Year
