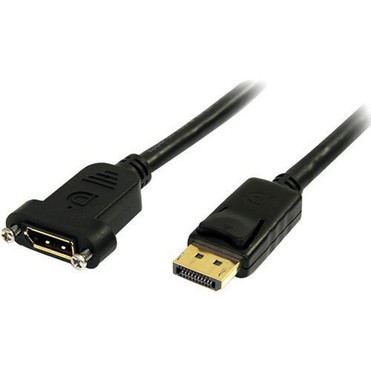

StarTech.com 3 ft 20 pin DisplayPort Extension Panel Mount Cable - M/F - DisplayPort Male Digital Audio/Video - DisplayPort Female - - (DPPNLFM3PW)
Write a Review
StarTech.com
StarTech.com 3 ft 20 pin DisplayPort Extension Panel Mount Cable - M/F - DisplayPort Male Digital Audio/Video - DisplayPort Female - - (DPPNLFM3PW)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Cable Length: 3 ft (0.91 m)
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Female
Connector Gender on Second End: Female
Connector on Second End Details: 1 x DisplayPort 1.2 Digital Audio/Video - Female
Contact Plating: Gold
Shielding: Yes
Device Supported: Audio/Video Device,PC,Faceplate
American Wire Gauge: 28 AWG
Data Transfer Rate: 21.6 Gbit/s
Supported Resolution: 3840 x 2400
Features: Molded,Flexible,Strain Relief,Fray Resistant,Damage Resistant,Latching Connector,EMI Protection
Color Family: White
Product Color: White
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 3.46 oz (98 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: Lifetime
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m)
White
DisplayPort 1.2
DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws)
28 AWG
PVC cable jacket, ABS connector shell
Shield: Double sided copper foil
Backward compatible w/ DP1.1
Lifetime Warranty
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DPPNLFM3PW |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 3 ft Powered DisplayPort Panel Mount Cable |
| Packaged Quantity | 1 Each |
| Product Type | Video Cable |
| Technical Information | |
| Cable Length | 3 ft (0.91 m) |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on Second End | Female |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Female |
| Contact Plating | Gold |
| Shielding | Yes |
| Device Supported | Audio/Video Device,PC,Faceplate |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 3840 x 2400 |
| Features | Molded,Flexible,Strain Relief,Fray Resistant,Damage Resistant,Latching Connector,EMI Protection |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 3.46 oz (98 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
Lifetime
