StarTech.com 42U 4 Post Open Frame Server Rack - Floor Standing Network Data Cabinet (4POSTRACK42) - Store your servers, network and - (4POSTRACK42)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- 2 x Left Vertical Rail
- 2 x Right Vertical Rail
- 2 x Base Bracket
- 8 x Corner Section
- 4 x Center Section
- 2 x Top Bracket
- 50 x M8 Bolt
- 50 x M8 Washer
- 1 x M6 (10mm) Wrench
- 1 x M8 (13mm) Wrench
- 6 x Phillips Screwdriver
- 4 x M6 Grounding Wire Bolts (short)
- 4 x M6 Grounding Wire Lock Washers
- 50 x M6 Cage Nut
- 50 x PVC Cup Washer
- 50 x M6 Phillips Head Screw
- 24 x Cable Management Hook
- 24 x Hook Mounting Screw
- 4 x Casters
- 4 x Leveling Feet
- 16 x M6 Screw
- 16 x M6 Flat Washer
- 16 x M6 Flange Nut
- 4 x Grounding Wires
Marketing Information:

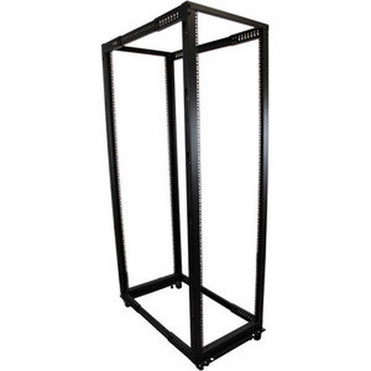

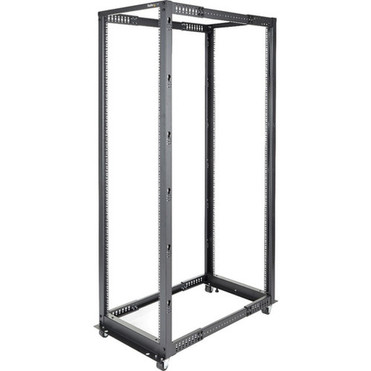

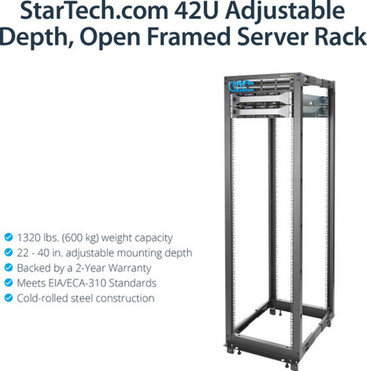

The 4POSTRACK42 42U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 42U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1320lbs (600kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete rack solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securing the rack to the floor if needed, providing you with many options to customize the rack to fit your environment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rack Type: Open Frame

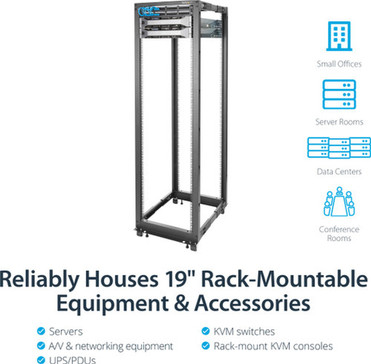

Application/Usage: Server,LAN Switch,KVM Switch,Patch Panel,A/V Equipment

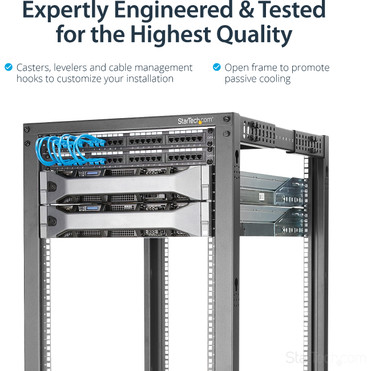

Features: Casters,Leveling Feet,Cable Management
Rack Post Quantity: 4
Form Factor: Floor Standing
Product Color: Black
Product Material: Steel,Cold Rolled Steel
Static/Stationary Weight Capacity: 600 kg
Height: 80.30" (2039.62 mm)
Width: 23.80" (604.52 mm)
Length: 41.30" (1049.02 mm)
Rack Height: 42U
Rack Width: 19" (482.60 mm)
Rack Depth: 40" (1016 mm)
Weight (Approximate): 38.50 kg
Package Contents:
Assembly Required: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- ADJUSTABLE DEPTH: 4-Post 42U open frame server rack with 4 vertical rails and adjustable mounting depth 22" to 40" (56,0cm to 101,7cm); Compatible with various servers / switches / data / AV and other IT equipment; EIA/ECA-310-E Compliant
- EASY ASSEMBLY: Mobile network rack with easy-to-follow assembly instructions and online video; Compact flat-pack shipping to avoid damage and facilitate installation; Total product height of 80.3in (204 cm) with casters, 78in (198cm) without casters
- COLD ROLLED STEEL: Durable 4 Post 19in open frame rack designed for ventilation with 42U mounting height and 1320lb (600kg) weight capacity (stationary); 3 install options included: casters, levelling feet, or base-plate to secure rack to the floor
- HARDWARE INCLUDED: Rolling computer/data rack includes cage nuts and screws to mount equipment, easy to read Units (U) and depth adjustment markings, cable management hooks for organization, and required assembly tools
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 42U rack is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance~
[custom-specifications]
Specifications | |
---|---|
Manufacturer | StarTech.com |
Manufacturer Part Number | 4POSTRACK42 |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | 4POSTRACK42 Rack Frame |
Product Type | Rack Frame | Technical Information |
Rack Type | Open Frame |
Application/Usage | Server,LAN Switch,KVM Switch,Patch Panel,A/V Equipment |
Features | Casters,Leveling Feet,Cable Management |
Rack Post Quantity | 4 | Physical Characteristics |
Form Factor | Floor Standing |
Product Color | Black |
Product Material | Steel,Cold Rolled Steel |
Static/Stationary Weight Capacity | 600 kg |
Height | 80.30" (2039.62 mm) |
Width | 23.80" (604.52 mm) |
Length | 41.30" (1049.02 mm) |
Rack Height | 42U |
Rack Width | 19" (482.60 mm) |
Rack Depth | 40" (1016 mm) |
Weight (Approximate) | 38.50 kg | Miscellaneous |
Package Contents |
|
Assembly Required | Yes |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | Warranty |
Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]




[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
2 Year
