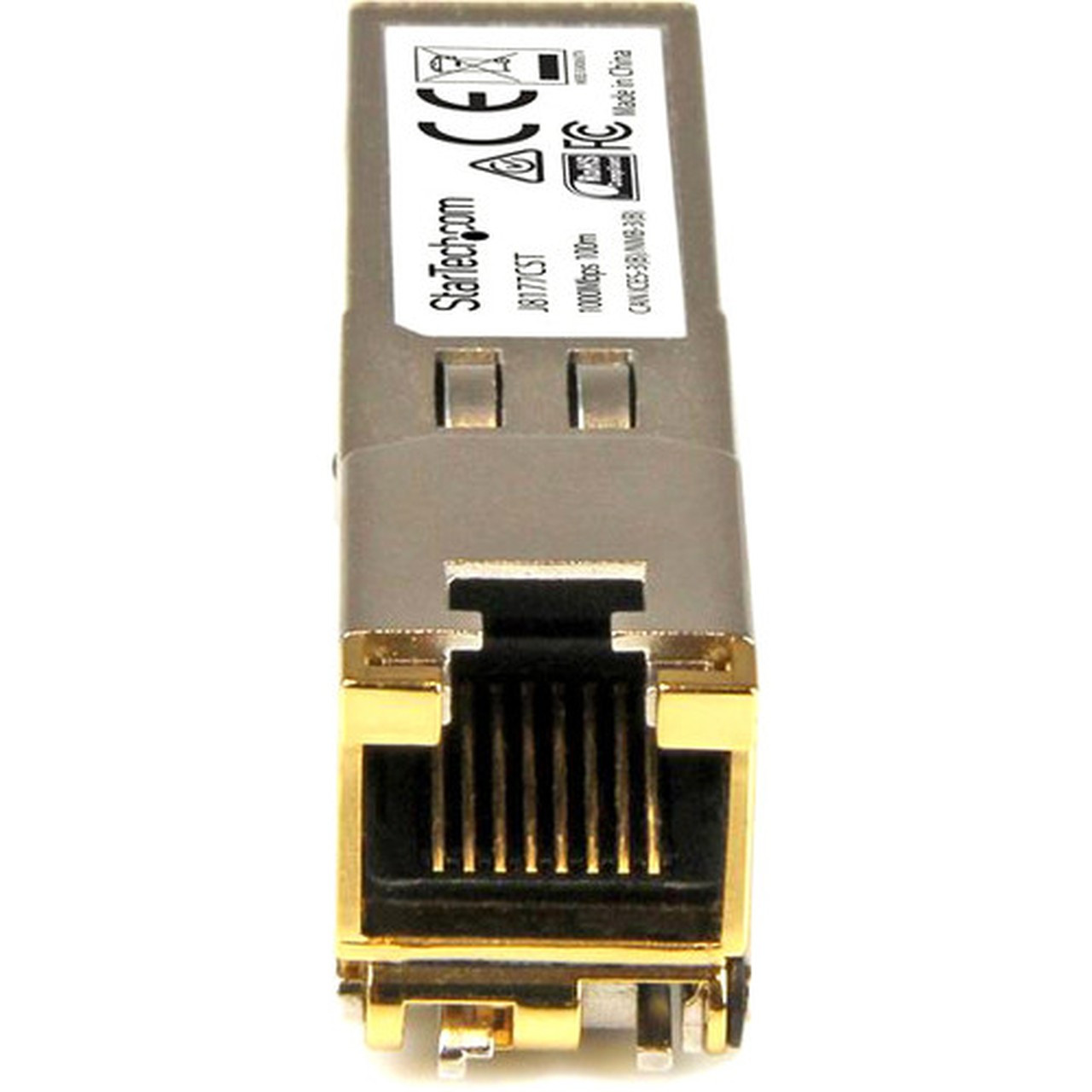

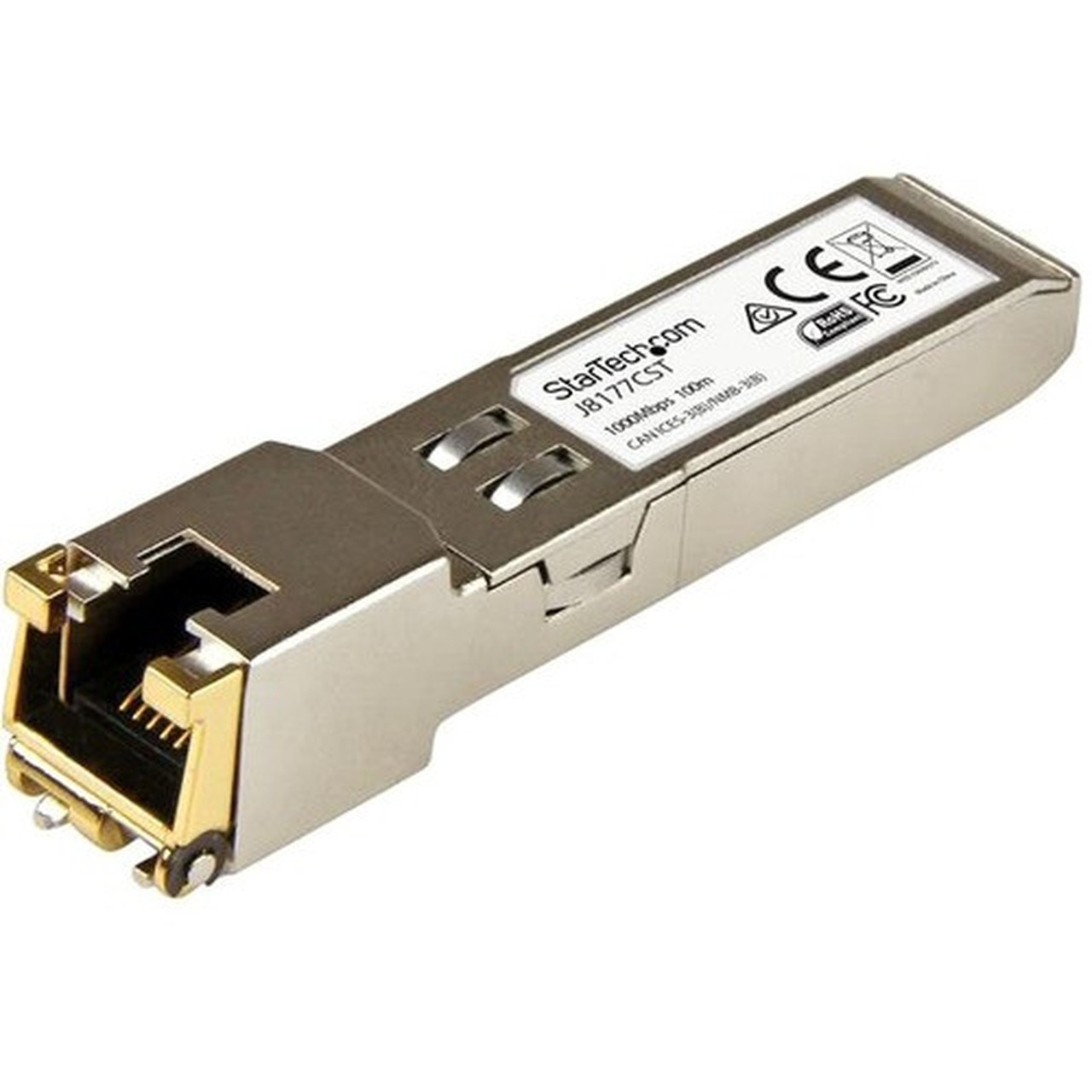

StarTech.com HP J8177C Compatible SFP Module - 1000BASE-T Copper SFP Transceiver - Lifetime Warranty - 1 Gbps - Maximum Transfer 100 m (J8177CST)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Write a Review
StarTech.com
StarTech.com HP J8177C Compatible SFP Module - 1000BASE-T Copper SFP Transceiver - Lifetime Warranty - 1 Gbps - Maximum Transfer 100 m (J8177CST)
- Maximum Data Transfer Rate: 1000 Mbps
- Type: Copper
- Connection Type: RJ45 Connector
- Maximum Transfer Distance: 100 m (328 ft)
- MTBF: 4,655,371 hours
- Power Consumption: Less than 1.3 Watts
- Digital Diagnostics Monitoring (DDM): No
- MSA Compliant
- HPE Routers
- 1810
- 1820
- 2530
- 2610
- 2620
Marketing Information: The J8177CST is an HP J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Application/Usage: Data Networking
Total Number of Ports: 1
Connector Type: RJ-45
Interfaces/Ports Details: 1 x RJ-45 Duplex 1000Base-T LAN
Media Type Supported: Twisted Pair
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-T
Form Factor: Hot-pluggable,Hot-swappable
Height: 0.60" (15.24 mm)
Width: 0.60" (15.24 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 25.5 g
Compatibility:
HPE Switches
Country of Origin: China
Environmentally Friendly: Yes
Limited Warranty: Lifetime
- 100% HPE J8177C COMPATIBLE: Works with HPE switches like 1810, 1820, 2530, 2610, 2620 and others
- TECHNICAL SPECS: 1000BASE-T
1Gbps
Copper
RJ-45 Connector
Distances up to 100m (328ft) - TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | J8177CST |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | HP J8177C Compatible SFP Transceiver Module - 1000BASE-T |
| Product Type | SFP (mini-GBIC) |
| Packaged Quantity | 1 | Technical Information |
| Application/Usage | Data Networking | Interfaces/Ports |
| Total Number of Ports | 1 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 Duplex 1000Base-T LAN | Media & Performance |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Network Technology | 1000Base-T | Physical Characteristics |
| Form Factor | Hot-pluggable,Hot-swappable |
| Height | 0.60" (15.24 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 2.70" (68.58 mm) |
| Weight (Approximate) | 25.5 g | Miscellaneous |
| Compatibility |
HPE Switches
|
| Country of Origin | China |
| Environmentally Friendly | Yes | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
