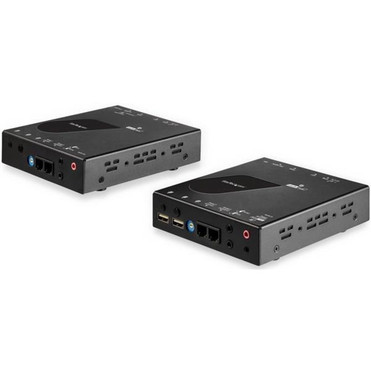

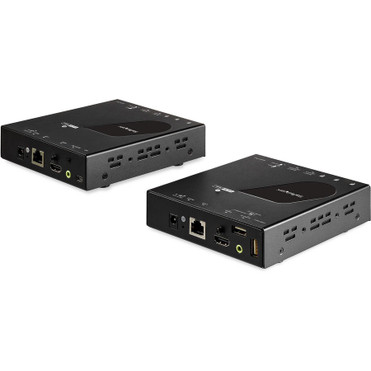

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM - & (SV565HDIP)
Write a Review
StarTech.com
StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM - & (SV565HDIP)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 1 x Transmitter Unit
- 1 x Receiver Unit
- 2 x Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
- 2 x Mounting Kits
- 2 x Ethernet Cables
- 2 x DB9 Serial Adapters
- 2 x RJ11 Serial Cables
- 1 x HDMI Cable (1.2 m)
- 1 x USB Cable (1.5 m)
- 8 x Rubber Feet
- 1 x Plastic Screwdriver
- 1 x Quick-Start Guide
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 330 ft (100584 mm)
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
USB: Yes
HDMI: Yes
Number of HDMI Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 5
Input Voltage: 120 V AC,240 V AC
Input Voltage Range: 100V AC to 240V AC
Power Consumption: 18 W
Color Family: Black
Product Color: Black
Form Factor: Desktop
Transmitter Height: 1.10" (27.94 mm)
Transmitter Width: 4.60" (116.84 mm)
Transmitter Depth: 5.10" (129.54 mm)
Receiver Height: 1.10" (27.94 mm)
Receiver Width: 4.60" (116.84 mm)
Receiver Depth: 5.10" (129.54 mm)
Transmitter Weight (Approximate): 1.34 lb (610 g)
Receiver Weight (Approximate): 1.34 lb (610 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 2 Year
- REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range
- 4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl.
- HDMI
4K 30Hz 3840 x 2160
USB 2.0 HID
OS Independent
2 x 3.5mm Analog Audio + Mic
Digital 7.1 Surround Audio
EDID Passthrough
IP Routable/Switchable
100m Max Direct Connection
2yr War - ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound
- VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565HDIP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | HDMI KVM Extender over LAN - 4K 30Hz |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 120 V AC,240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Power Consumption | 18 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Transmitter Height | 1.10" (27.94 mm) |
| Transmitter Width | 4.60" (116.84 mm) |
| Transmitter Depth | 5.10" (129.54 mm) |
| Receiver Height | 1.10" (27.94 mm) |
| Receiver Width | 4.60" (116.84 mm) |
| Receiver Depth | 5.10" (129.54 mm) |
| Transmitter Weight (Approximate) | 1.34 lb (610 g) |
| Receiver Weight (Approximate) | 1.34 lb (610 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
