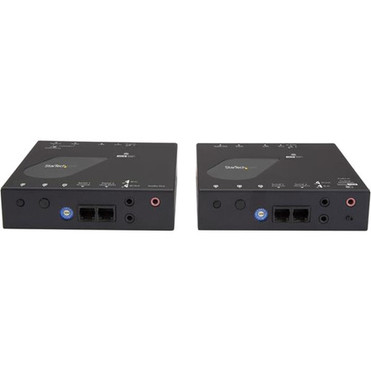

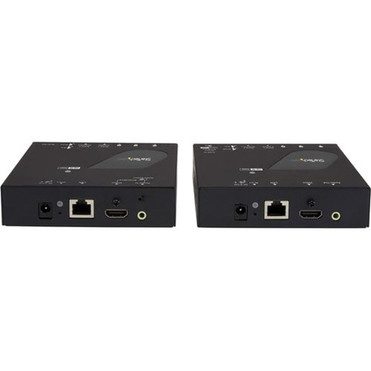

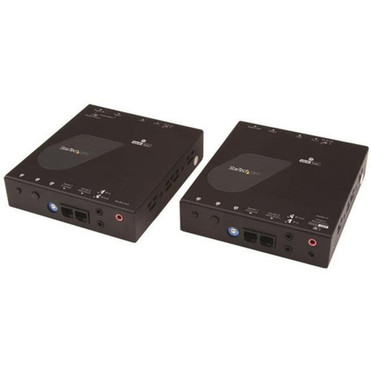

StarTech.com HDMI Over IP Extender Kit - Video Over IP Extender with Support for Video Wall - 4K - 1 Input Device - 1 Output Device - (ST12MHDLAN4K)
Write a Review
StarTech.com
StarTech.com HDMI Over IP Extender Kit - Video Over IP Extender with Support for Video Wall - 4K - 1 Input Device - 1 Output Device - (ST12MHDLAN4K)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 1 x HDMI over IP transmitter
- 1 x HDMI over IP receiver
- 2 x universal power adapters (NA, EU, UK, ANZ)
- 2 x mounting brackets
- 2 x CAT5e cables
- 2 x RJ11 to RS232 adapters
- 2 x RJ11 cables
- 1 x plastic screwdriver
- 1 x quick-start guide
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)
Graphics Modes: 4K
Supported Video Modes: 1080p,720p
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6,Category 5e
Color Family: Black
Product Color: Black
Transmitter Height: 1.20" (30.48 mm)
Transmitter Width: 4.60" (116.84 mm)
Transmitter Depth: 5.10" (129.54 mm)
Receiver Height: 1.20" (30.48 mm)
Receiver Width: 4.60" (116.84 mm)
Receiver Depth: 5.10" (129.54 mm)
Transmitter Weight (Approximate): 1.32 lb (600 g)
Receiver Weight (Approximate): 1.32 lb (600 g)
Package Contents:
Application/Usage: TV,Digital Signage System,Retail
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- AV over IP HDMI Extender: Distribute 4K 30Hz HDMI signals over existing IP network infrastructure using AVoIP; Ideal for IT teams and system integrators building scalable, cost-effective and future-ready A/V systems without splitters or fixed extenders
- Video Control App and RS232: Control video routing in a centralized way with the free iOS/Android app; Name sources/displays, set up video walls, and use RS232 passthrough to manage TVs or serial devices remotely
- Scalable HDMI over IP: Easily expand your A/V network with one-to-many or many-to-many video wall setups by simply adding transmitters and receivers; Requires adequate network bandwidth and multicast / jumbo frames support
- Flexible Deployment: Suitable for digital signage in retail, hospitality, corporate or any other environment, as well as mission-critical video wall setups in command and control rooms; Mounting brackets included
- The IT Pro's Choice: Backed by decades of connectivity expertise from legacy VGA to modern USB4 and AVoIP solutions; TAA compliant for government and enterprise procurement; Work with a single trusted partner for all your A/V connectivity needs
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST12MHDLAN4K |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | HDMI Over IP Extender Kit - 4K |
| Packaged Quantity | 1 Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p,720p |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6,Category 5e |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 1.20" (30.48 mm) |
| Transmitter Width | 4.60" (116.84 mm) |
| Transmitter Depth | 5.10" (129.54 mm) |
| Receiver Height | 1.20" (30.48 mm) |
| Receiver Width | 4.60" (116.84 mm) |
| Receiver Depth | 5.10" (129.54 mm) |
| Transmitter Weight (Approximate) | 1.32 lb (600 g) |
| Receiver Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Package Contents | |
| Application/Usage | TV,Digital Signage System,Retail |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
Warranty Information
2 Year
