- Boost system speed and performance by adding a PCIe M.2 SSD to your PC
- Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives
- Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0
- Fast and easy setup with native OS support
- Installs into x4, x8 or x16 PCIe slots
- Equipped with a full-profile bracket, and includes a half-height/low-profile bracket for installation in small form-factor computers
- Marketing Information:
- x4 PCI Express to M.2 PCIe SSD Adapter
- 1 x Low-profile Bracket
- 1 x Full-profile Bracket (Pre-installed)
- 1 x SSD Standoff and Installation Screw
- 1 x Quick Start Guide
- FCC
- CE
- RoHS
- WEEE
- REACH

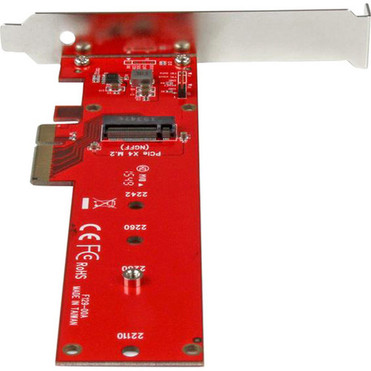

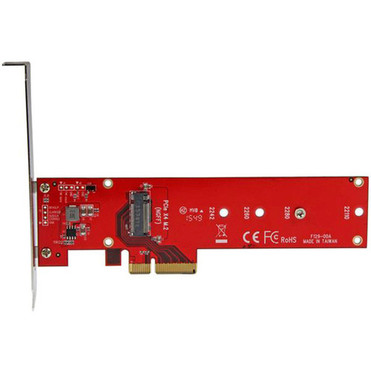

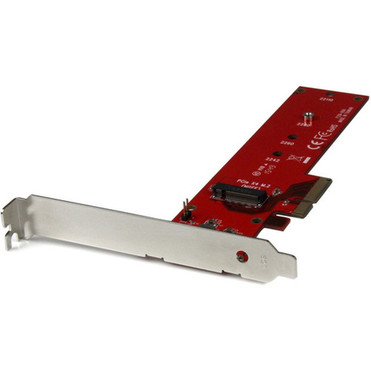

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install

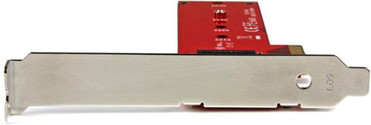

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Color: RedHeight: 7.20" (182.88 mm)Width: 4.80" (121.92 mm)Length: 7" (177.80 mm)Weight (Approximate): 48.2 gPackage Contents:[custom-specifications]
Manufacturer: StarTech.com
Manufacturer Part Number: PEX4M2E1
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: x4 PCI Express to M.2 PCIe SSD Adapter-M.2 NGFF SSD (NVMe or AHCI) Adapter Card
Packaged Quantity: 1
Product Type: M.2 to PCI Express Adapter
Physical Characteristics
Color: Red
Height: 7.20" (182.88 mm)
Width: 4.80" (121.92 mm)
Length: 7" (177.80 mm)
Weight (Approximate): 48.2 g
Miscellaneous
Package Contents:
- x4 PCI Express to M.2 PCIe SSD Adapter
- 1 x Low-profile Bracket
- 1 x Full-profile Bracket (Pre-installed)
- 1 x SSD Standoff and Installation Screw
- 1 x Quick Start Guide
Certifications & Standards:
- FCC
- CE
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
- REACH
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
[/custom-specifications]
[custom-user-manual][/custom-user-manual]
