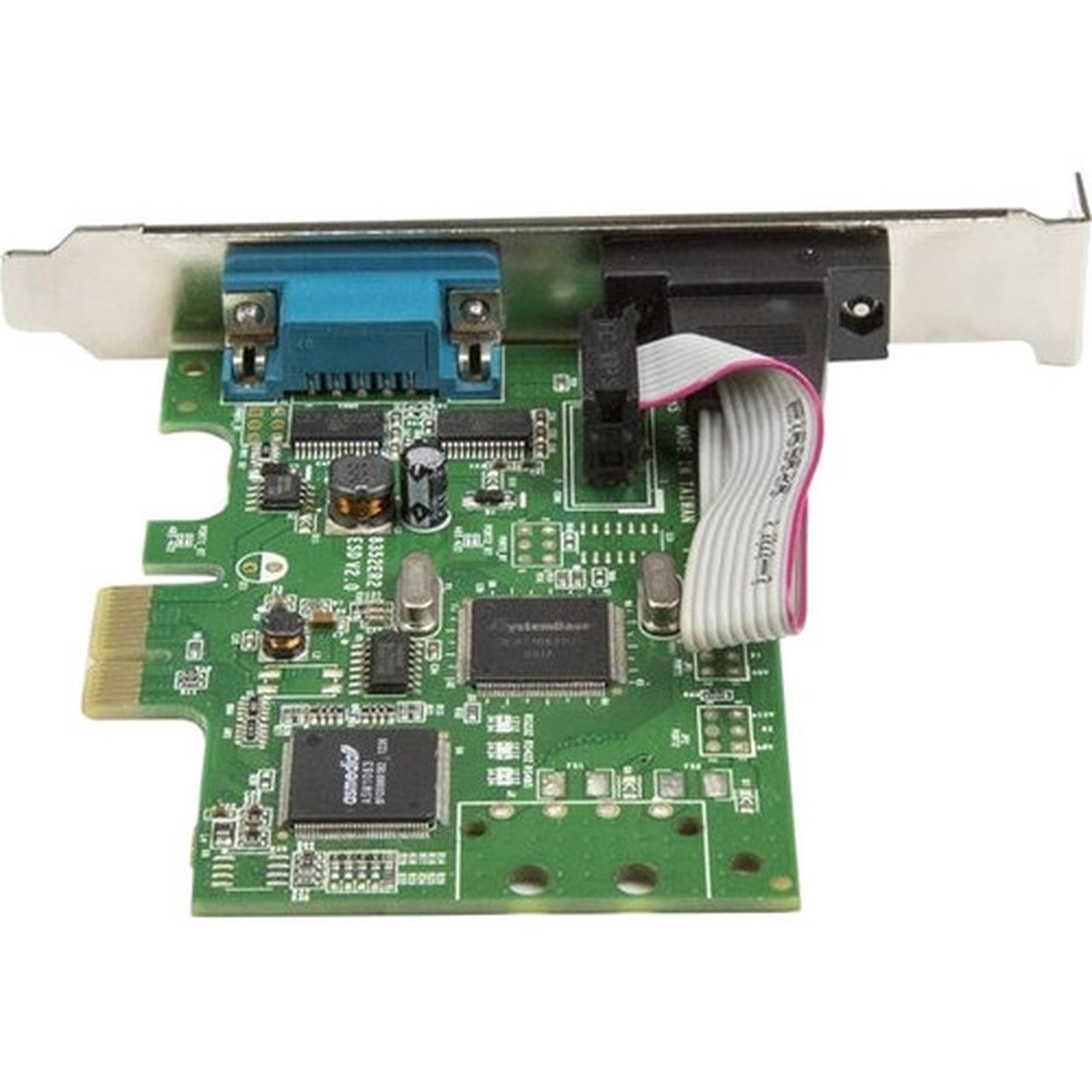

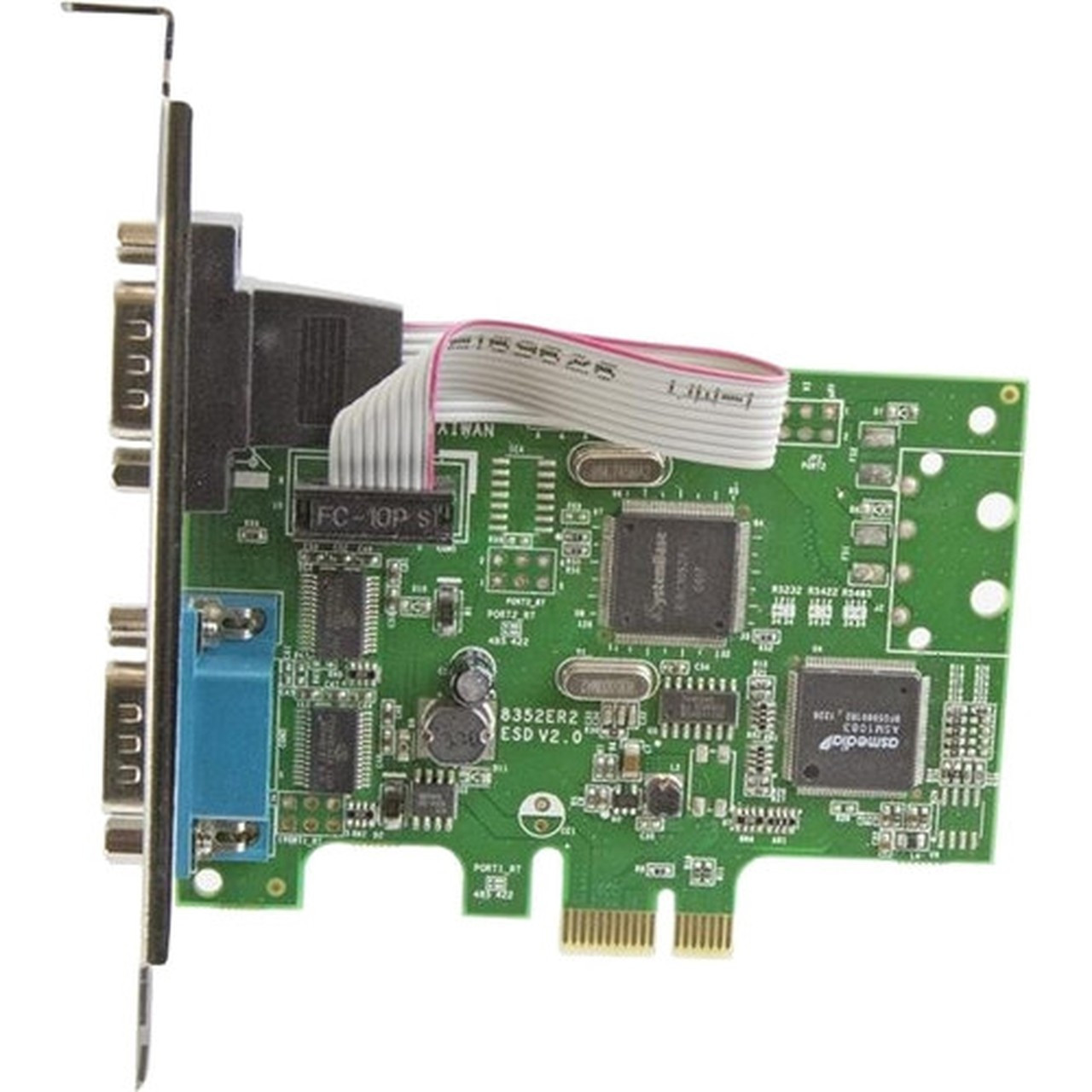

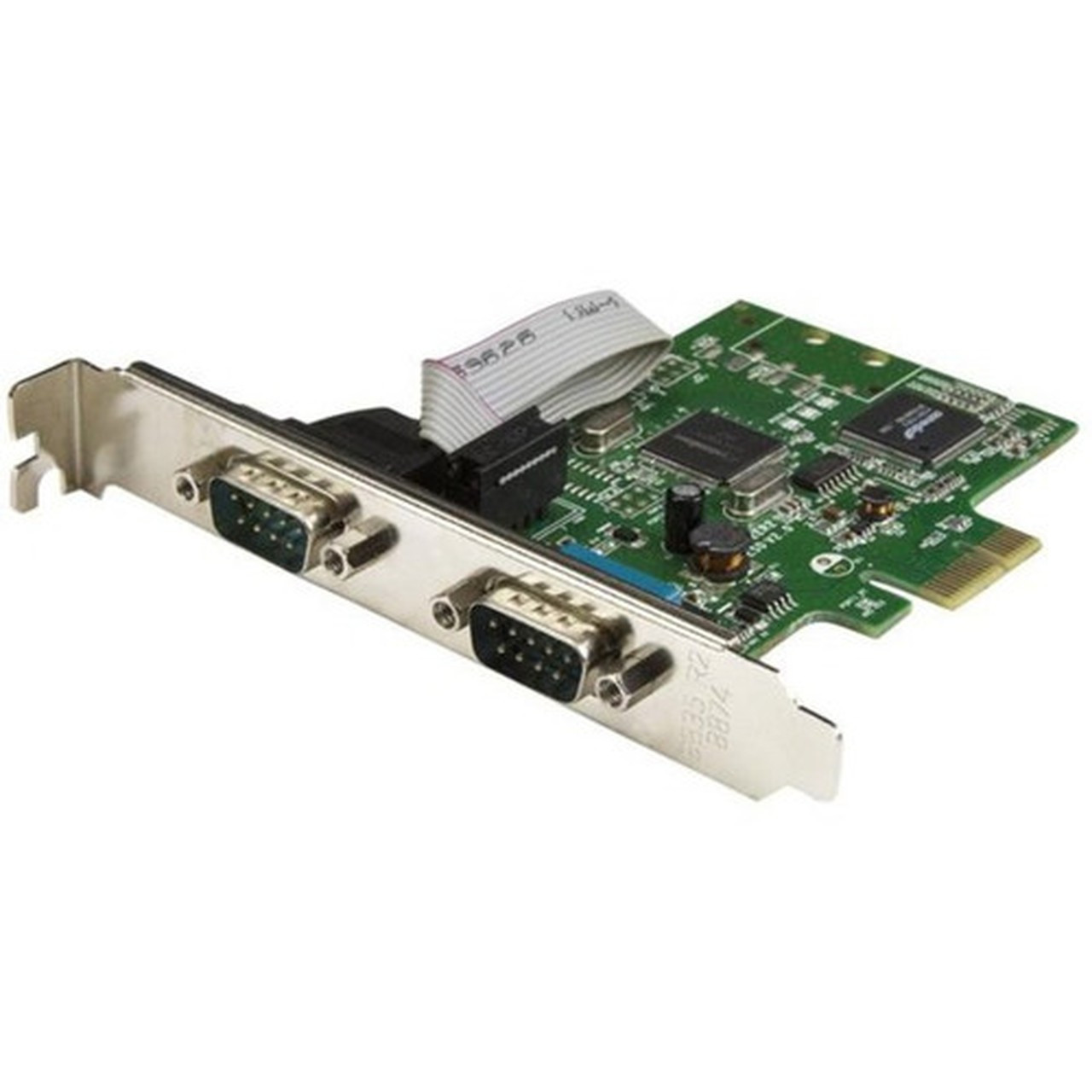

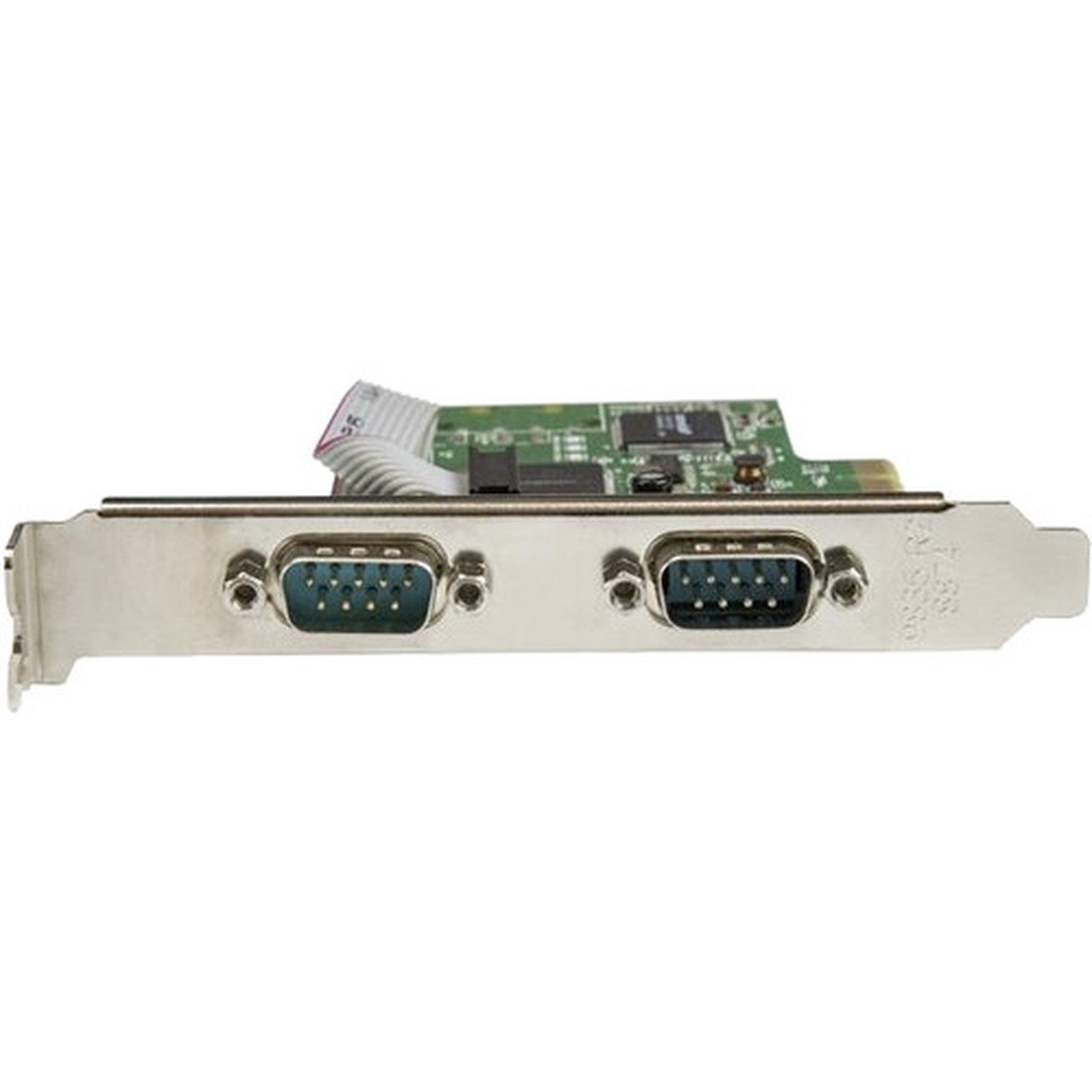

StarTech.com PCI Express Serial Card - 2 port - Dual Channel 16C1050 UART - Serial Port PCIe Card - Serial Expansion Card - 1 Pack - - (PEX2S1050)
Write a Review
StarTech.com
StarTech.com PCI Express Serial Card - 2 port - Dual Channel 16C1050 UART - Serial Port PCIe Card - Serial Expansion Card - 1 Pack - - (PEX2S1050)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 2-Port PCI Express Serial Card with 16C1050 UART - RS232
- 2 x Low-Profile Brackets
- 1 X Driver CD
- 1 X Quick-Start Guide
Host Interface: PCI Express x1
Platform Supported: PC,Linux
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Weight (Approximate): 2.20 oz (62.37 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 2 Year
- Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
- Maximum data transfer rate of 460Kbps
- Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
- 256-Byte deep FIFO per transmitter and receiver
- In-band software flow control using programmable Xon/Xoff in both directions
- Out-of-band hardware flow control using RTS / CTS
- Support for 5,6,7 or 8 data bits
- Standard profile bracket installed, optional dual low-profile brackets included
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX2S1050 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2-Port PCI Express Serial Card with 16C1050 UART - RS232 |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Platform Supported | PC,Linux |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | StarTech.com Serial Null modem cable - DB-9 (F) - DB-9 (F) - 10 ft - Transfer files via serial connection |
| SKU | SCNM9FM |
| Sale Price | $6.19 |
| Product | StarTech.com 6 ft Straight Through Serial Cable - DB9 F/F - Connect two DB9 equipped serial devices |
| SKU | MXT100FF |
| Sale Price | $6.64 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
