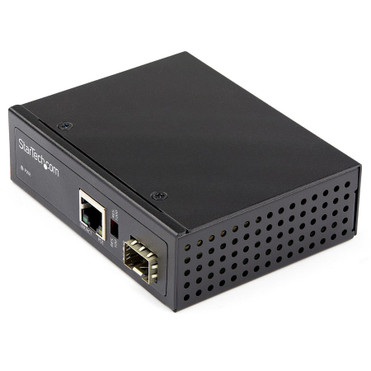

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30 - Fiber to & to (IMC1GSFP60W)
Write a Review
StarTech.com
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper IP-30 - Fiber to & to (IMC1GSFP60W)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Transceiver/Media Converter
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Total Number of Ports: 1
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Multi-mode,Single-mode
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T,1000Base-TX,100Base-TX,100Base-T
Power Source: PoE+
Power Consumption: 60 W
Plug/Connector Type: Terminal Block (3 Wire),Type N
Form Factor: DIN Rail Mountable,Wall Mountable
Height: 1.30" (33.02 mm)
Width: 3.20" (81.28 mm)
Depth: 4.10" (104.14 mm)
Weight (Approximate): 5.40 oz (153.09 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: 2 Year
- EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
- TECH SPECS: 1 Gbps
1 x Open SFP (MSA Compliant)
1x RJ45
48V-56VDC
IEEE 802.3af / IEEE 802.3at (60W)
10/100/1000Mbps
LFP
16K Jumbo Frames
DIN or Wall Mount Hardware Included
2 yr warr - ROBUST DESIGN: Industrial Gigabit Media Converter w/MTBF 500,000+hrs @ 50C
Vibration, shock & free fall rated
Rugged IP-30 aluminum housing
Hardened operating temp -40C to 75C - OPEN SFP SLOT: Any MSA compliant SFP can be used for the incoming multimode or singlemode fiber connection; easy deployment across applications or fiber cable types

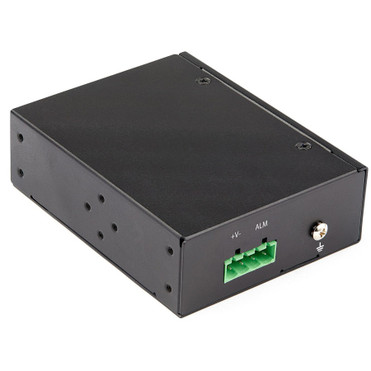

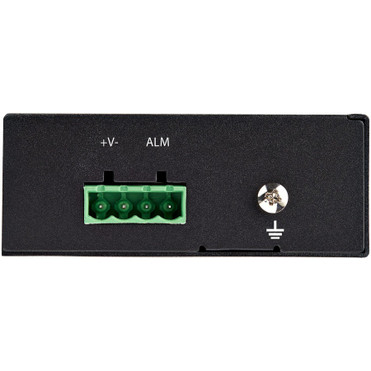

- FLEXIBLE POWER: Can be hardwired using terminal block (48-56VDC) power or powered using a standard Type-N barrel wall adapter (not included)
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years
This media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IMC1GSFP60W |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-TX,100Base-TX,100Base-T |
| Power Description | |
| Power Source | PoE+ |
| Power Consumption | 60 W |
| Plug/Connector Type | Terminal Block (3 Wire),Type N |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable,Wall Mountable |
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.10" (104.14 mm) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year
