StarTech.com 16 Outlet Horizontal 1U Rack Mount PDU Power Strip for Network Server Racks - Surge Protection - 120V/15A - 6ft Power - x (RKPW161915)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Rackmount PDU with 16 Outlets and SurgeProtection - 1U
- 1 x Installation Manual
Marketing Information:

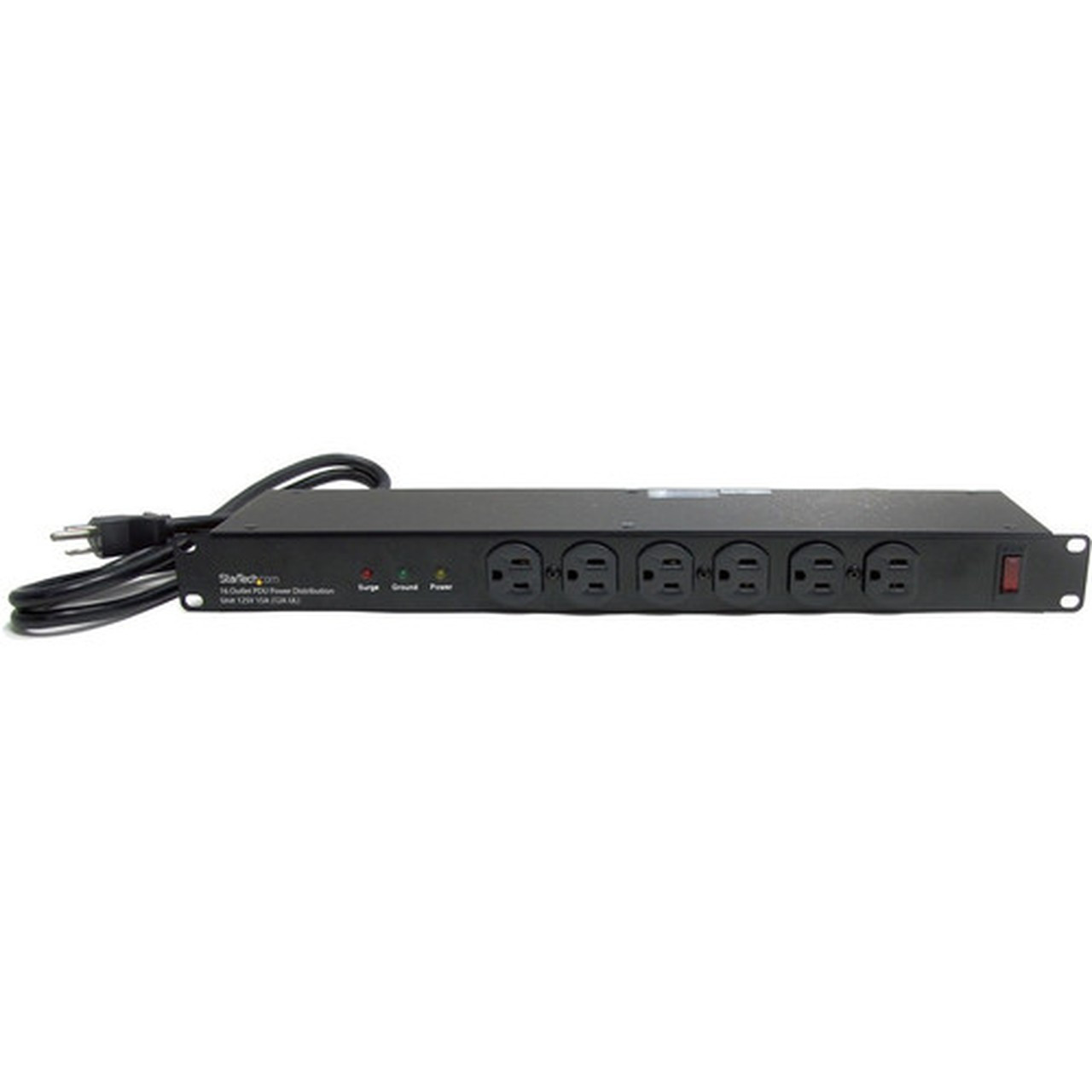

This 16-outlet (120V 15A)(12A UL) Rack PDU delivers a cost-effective power distribution solution for your server rack/cabinet. The 1U PDU can be mounted horizontally in any server rack 4in in depth or greater, to provide sixteen 120V 15A power ports/outlets, and features a rugged steel casing to ensure maximum durability.
The front of the PDU features two LEDs that indicate proper ground and surge detection, while enabling you to control the power state with an illuminated power/reset switch.
To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in circuit breaker and reset switch, ensuring dependable performance of vital equipment.
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 1 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 16 x NEMA 5-15R
Input Voltage: 120 V AC
Output Voltage: 125 V AC
Power Rating (VA): 1.80 kVA
Input Current: 15 A
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 3.80" (96.52 mm)
Length: 19" (482.60 mm)
Weight (Approximate): 2 kg
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year

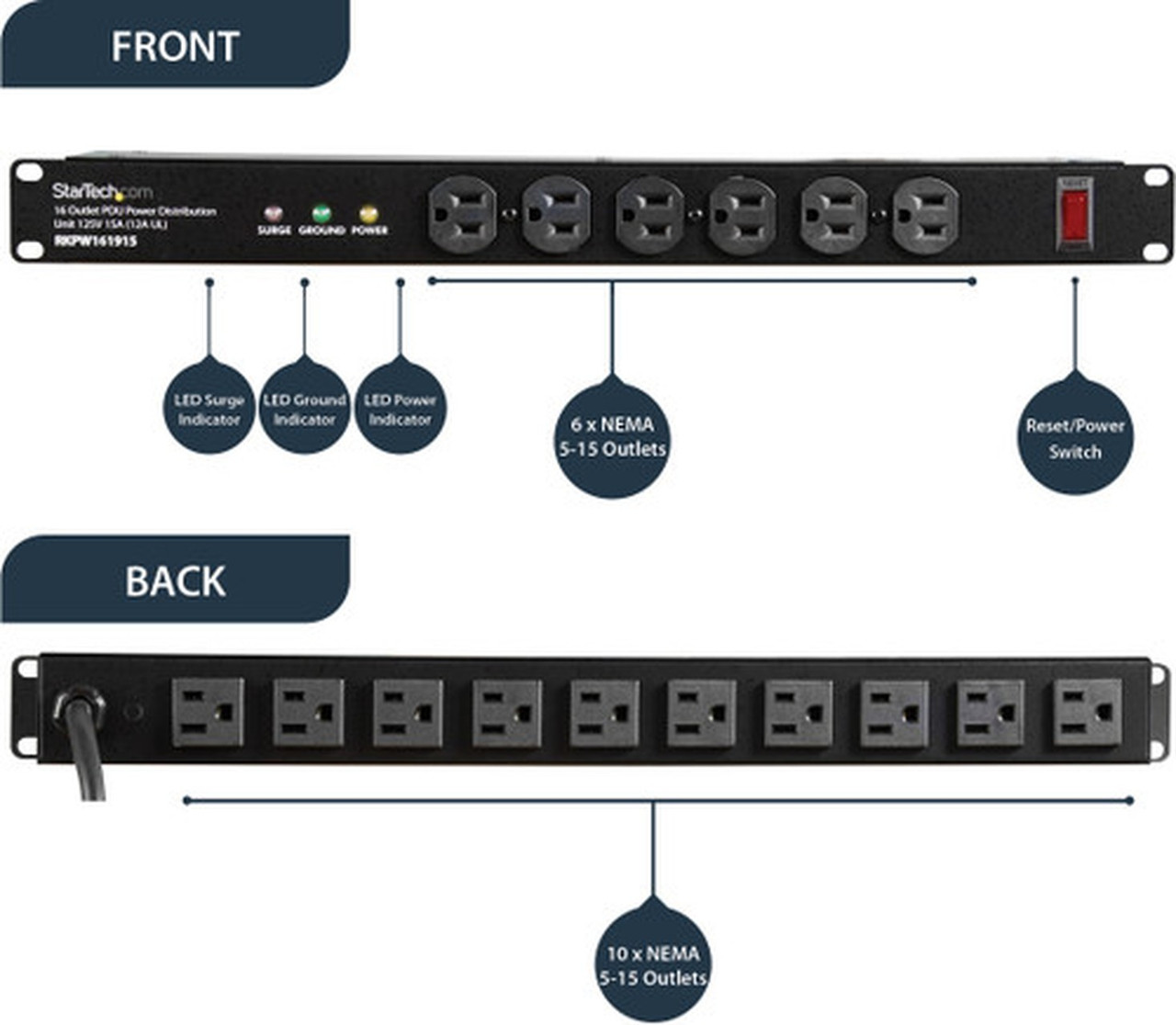

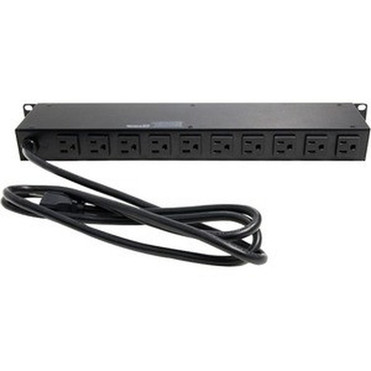

- CONVENIENT LAYOUT: This rack-mount 16-outlet (120V) NEMA 5-15 power strip features a steel chassis, 6 ports on the front, and 10 ports on the back, so you can easily plug devices in and manage cables
- SCALABLE: This 1U rack mount PDU is ideal for small rack setups with only a few devices, allowing for plenty of future expansion, and features a 6 ft long cord so you can move your rack around
- EASY INSTALLATION: This rackmount PDU supports 19 inch rack 1U horizontal installation; Features LED indicators for ground and surge detection, a built-in circuit breaker, surge protection, and meets ANSI/EIA RS-310-D standards

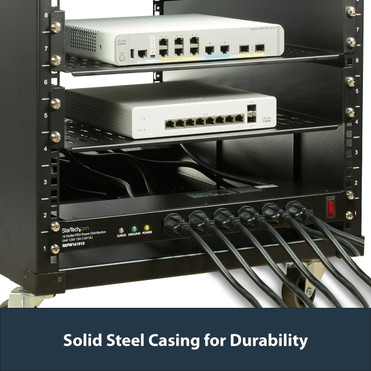

- BROAD COMPATIBILITY: 1U horizontal rack-mounted power distribution unit fits many network / data 2-post and 4-post racks; Compatible with 19"" server racks with minium 4"" (10.2cm) depth
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this rack PDU is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
[custom-specifications]
Specifications | |
---|---|
Manufacturer | StarTech.com |
Manufacturer Part Number | RKPW161915 |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Model | RKPW161915 |
Product Name | Rackmount PDU with 16 Outlets and SurgeProtection - 1U |
Packaged Quantity | 1 |
Product Type | PDU | Technical Information |
Plug/Connector Type | NEMA 5-15P |
Plug/Connector Detail | 1 x NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 16 x NEMA 5-15R | Power Description |
Input Voltage | 120 V AC |
Output Voltage | 125 V AC |
Power Rating (VA) | 1.80 kVA |
Input Current | 15 A | Physical Characteristics |
Mounting Orientation | Horizontal |
Mount Type | Rack-mountable |
Rack Height | 1U |
Height | 1.70" (43.18 mm) |
Width | 3.80" (96.52 mm) |
Length | 19" (482.60 mm) |
Weight (Approximate) | 2 kg | Miscellaneous |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) | Warranty |
Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]

Product | StarTech.com M5 Mounting Screws for Server Rack Cabinet - Computer Assembly Screw - 50 / Pack |
SKU | CABSCREWS |
Sale Price | $30.50 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
2 Year
