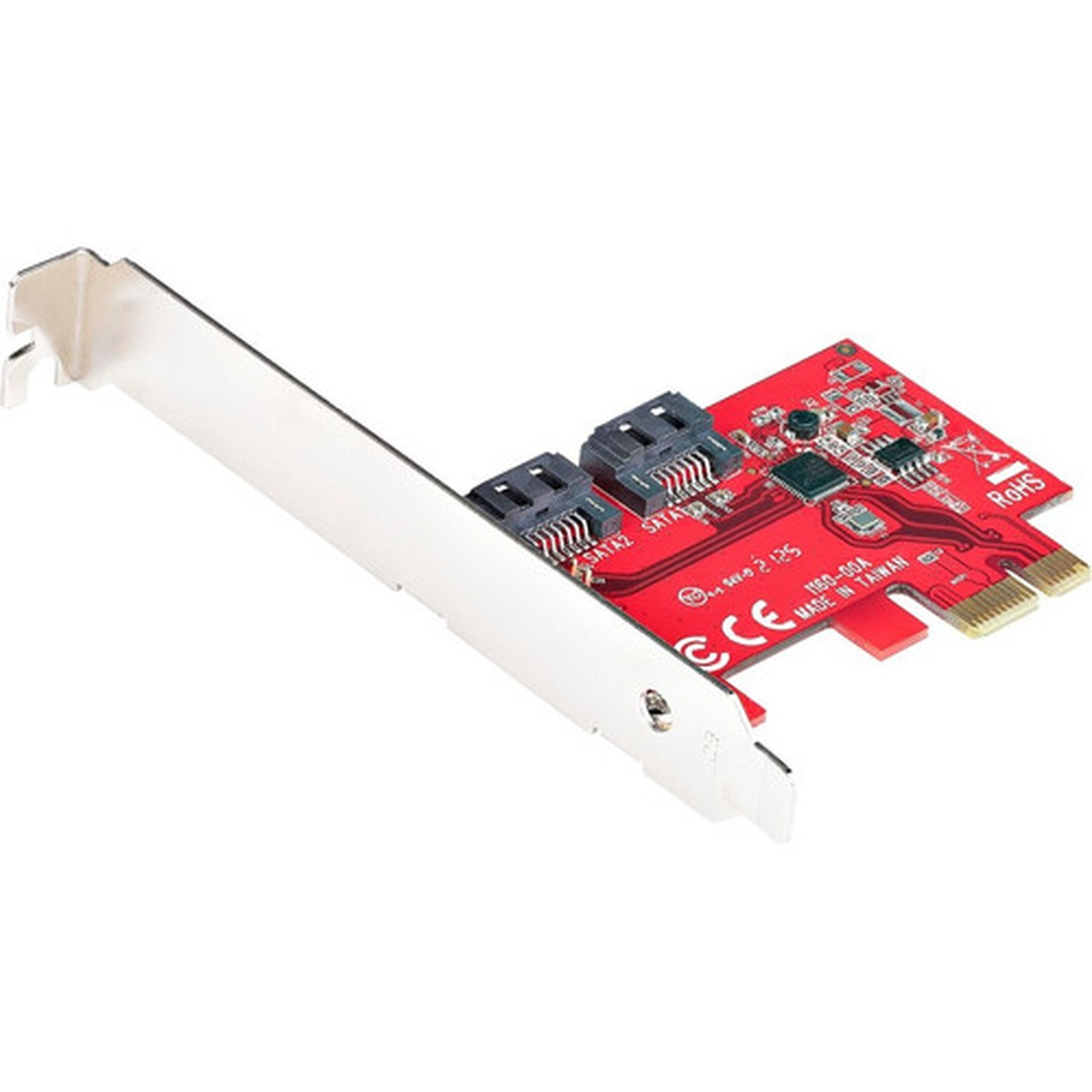

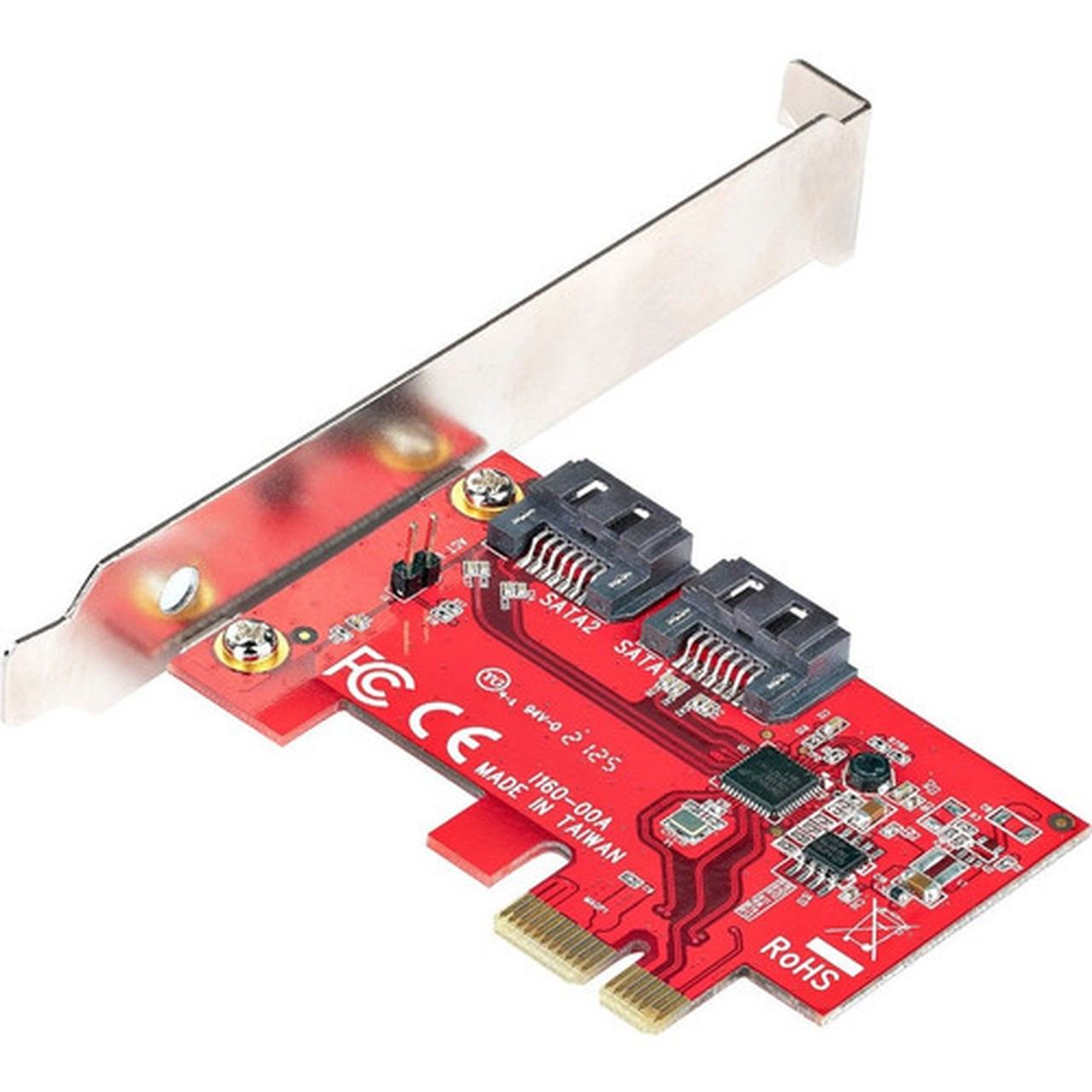

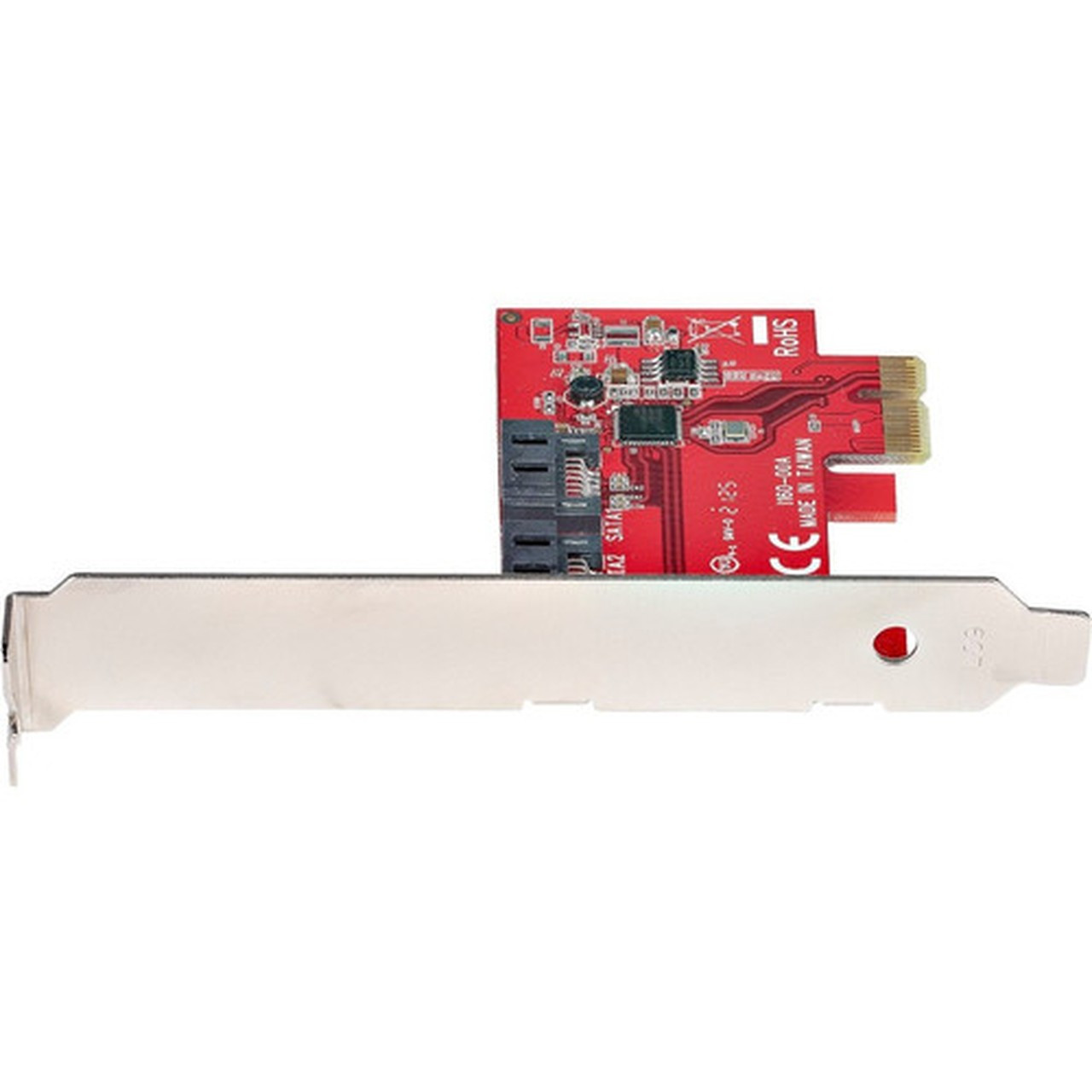

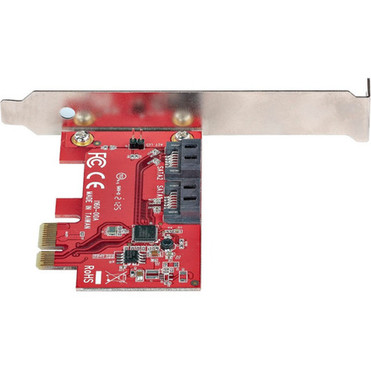

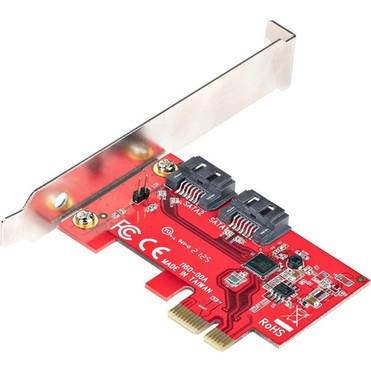

StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion Card, 6Gbps SATA, PCI Express to SATA Adapter, Non-RAID, PCIe to SATA - SATA - (2P6G-PCIE-SATA-CARD)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
Marketing Information:
This 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
ASM1061 to Deliver 2-Port SATA 6Gbps Performance
Featuring the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.
Host Interface: PCI Express 2.0 x1
Controller Type: Serial ATA/600
RAID Supported: No
Device Supported: Server,Desktop PC
Operating System Supported: Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,macOS 10.6.8+,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32
Total Number of SAS Ports: 2
Number of SAS Ports (Internal): 2
Form Factor: Plug-in Card
Height: 4.80" (121.92 mm)
Width: 0.70" (17.78 mm)
Length: 2.70" (68.58 mm)
Weight (Approximate): 34 g
Package Contents:
Platform Supported: PC,Mac,Linux
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: Lifetime
- HIGH-PERFORMANCE: Add two SATA III 6Gbps ports to your desktop computer or server using a PCIe x1 slot to connect SATA drives (HDD/SSD); 2-Port SATA PCIe card features 2x SATA connections for connecting drives using SATA cables (sold separately)
- ASM1061 CONTROLLER: This PCI Express SATA 3 6Gbps card features single-chip architecture adding two SATA (serial ATA) 6Gbps ports via a single x1 PCIe slot, combined total bandwidth up to 4Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
- COMPATIBILITY: Supports PCIe 2.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.6.8+), Linux (2.6.32+); Improved motherboard compatibility with no built-in RAID; Supports ATA & ATAPI (HDD, SSD, Optical Disc)
- EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
[custom-specifications]
Specifications | |
Manufacturer | StarTech.com |
Manufacturer Part Number | 2P6G-PCIE-SATA-CARD |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | PCIe SATA Card |
Product Type | SATA Controller |
Technical Information | |
Host Interface | PCI Express 2.0 x1 |
Controller Type | Serial ATA/600 |
RAID Supported | No |
Device Supported | Server,Desktop PC |
Operating System Supported | Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,macOS 10.6.8+,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32 |
Interfaces/Ports | |
Total Number of SAS Ports | 2 |
Number of SAS Ports (Internal) | 2 |
Physical Characteristics | |
Form Factor | Plug-in Card |
Height | 4.80" (121.92 mm) |
Width | 0.70" (17.78 mm) |
Length | 2.70" (68.58 mm) |
Weight (Approximate) | 34 g |
Miscellaneous | |
Package Contents |
|
Platform Supported | PC,Mac,Linux |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
Country of Origin | Taiwan |
Warranty | |
Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]

Product | StarTech.com 12in SATA Serial ATA Cable - This high quality SATA cable is designed for connecting SATA drives even in tight spaces. |
SKU | SATA12 |
Sale Price | $6.30 |

Product | StarTech.com 8in Latching SATA Cable - Secure latching SATA cable designed for new system boards and SATA hard drives |
SKU | LSATA8 |
Sale Price | $4.66 |

Product | StarTech.com 24in SATA Serial ATA Cable - This high quality SATA cable is designed for connecting SATA drives even in tight spaces. |
SKU | SATA24 |
Sale Price | $7.61 |

Product | StarTech.com 36in SATA Serial ATA Cable - Connect and position SATA drives easily - designed for larger cases |
SKU | SATA36 |
Sale Price | $8.32 |

Product | StarTech.com 6in SATA Serial ATA Cable - This high quality SATA cable is designed for connecting SATA drives even in tight spaces. |
SKU | SATA6 |
Sale Price | $4.85 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
Lifetime
