StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Laptop Docking Station HDMI 4K 60Hz - 2x USB-A & GbE - 28cm (11") - 3 (TB3DKM2HDL)

• HIGH PERFORMACNE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40 Gbps); Dual 4K 60Hz HDMI outputs; 2-Port USB-A Hub (1x USB 3.2 Gen 1 5Gbps & 1x USB 2.0); Gigabit Ethernet port with PXE boot and WoL
• FOR HIGH-POWERED LAPTOPS: Dual 4K 60Hz video output with direct GPU performance and no software or compression; Ideal for high-performance laptops that need a direct power adapter connection, but require Thunderbolt 3 dock performance & functionality
• COMPATIBILITY: Mini dock is compatible with Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later

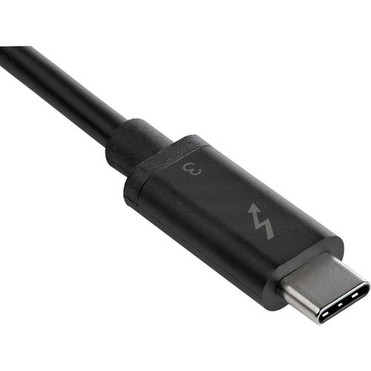

• EXTRA-LONG CABLE: Attached 11in (28cm) cable provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
• OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Marketing Information:

This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

Create a Dual-4K 60Hz Workstation

Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.

Connect your laptop to:

• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Compact Size & 11-Inch Attached Host Cable

At just 2.4"" x 4.9"" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

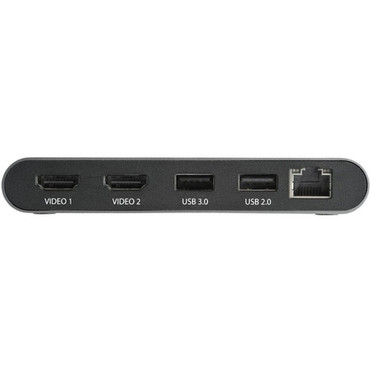

The Ports You Need Most

• 1x USB 3.2 Gen 1 Type-A port (5Gbps)
• 1x USB 2.0 Type-A port
• 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)

Ideal for Power-Demanding Workstation Setups

As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.

This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.

The TB3DKM2HDL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.


Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K
Device Supported: Notebook
Ethernet Technology: Gigabit Ethernet
Host Interface: Thunderbolt 3
Number of USB 2.0 Ports: 1
Number of USB 3.1 Gen 1 Type-A Ports: 1
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of HDMI Outputs: 2
HDMI: Yes
Operating System Supported:
• Windows 11
• Windows 10
• Windows 8.1
• Windows 7
• Windows Server 2008 R2
• Windows Server 2012
• Mac OS X 10.10 Yosemite
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura

Product Color:
• Black
• Silver

Height: 1.10" (27.94 mm)
Width: 2.70" (68.58 mm)
Weight (Approximate): 147.4 g
Package Contents:
• Docking Station
• 1 x User Manual

Compatibility:

Compatible Products:

• Dell XPS
• HP EliteBook
• Lenovo X1 Carbon
• Apple MacBook Pro 13
• Apple MacBook Pro 16
• Apple MacBook Air

Environmentally Friendly: Yes
Country of Origin: Thailand
Limited Warranty: 3 Year
