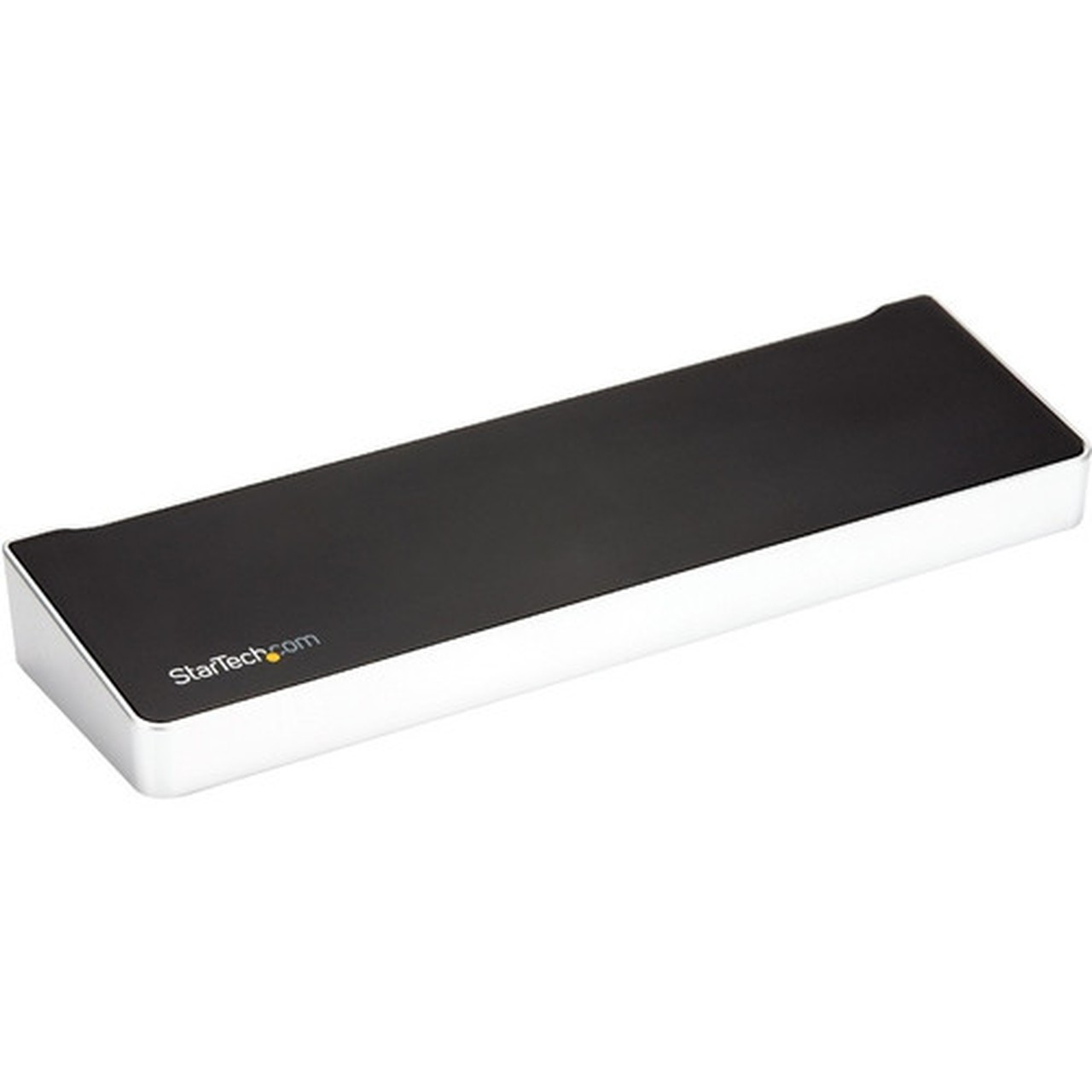

StarTech.com USB-C 4K Triple Monitor Laptop Docking Station with DisplayPort & HDMI - 100W PD - USB 3.1 Dock for Windows & MacBook Pro (DK30CH2DEP)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
- 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
- Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
- 1 x USB-C Cable
- 1 x Universal Power Adapter (NA/JP, ANZ)
- 1 x Instruction Manual
- Lenovo X1
- Lenovo Thinkpad P Series
- Dell Latitude Notebooks
- Dell Precision Notebooks
- Dell XPS 15 Notebooks
- HP Spectre Notebooks
- HP Zbook Notebooks
- Apple MacBook Pro 16
Marketing Information:
This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.
You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance ProductivityThe 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:
For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.
100W Power DeliveryUsing a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

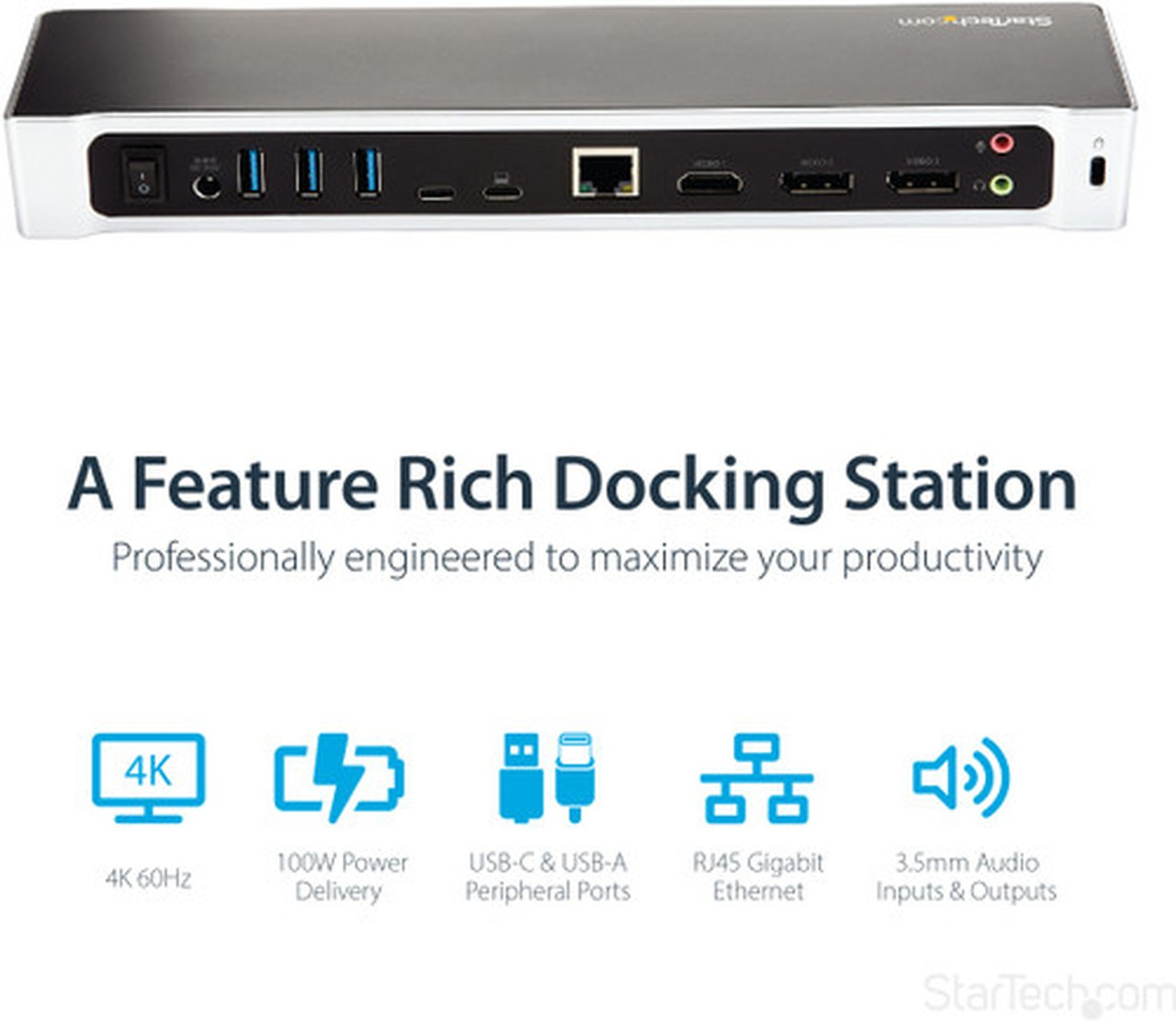

Powerful ConnectionsThis triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.
Connected Device Transparency with the StarTech.com MAC Address Changer UtilityThe DK30CH2DEP, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
The TAA compliant DK30CH2DEP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Connectivity Technology: Wired
Device Supported: Notebook/Tablet PC
Host Interface: USB 3.0 Type C
Audio Line Out: Yes
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
USB Type-C: Yes
USB Type-C Detail: 2 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Thunderbolt: Yes
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,ChromeOS 55+,Ubuntu 18.04
Maximum Power Supply Wattage: 100 W
Product Color: Black,Silver
Height: 1.30" (33.02 mm)
Width: 3.20" (81.28 mm)
Depth: 10.60" (269.24 mm)
Weight (Approximate): 385.6 g
Package Contents:
Compatibility:
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Limited Warranty: 3 Year
- FLEXIBLE MONITOR OUTPUTS: USB-C dock supports dual or triple 4K monitor setups w/ up to dual 4K 60Hz on DisplayPort (DP++/DP) and up to 4K 30Hz on HDMI; Supports up to 3 extended displays on Macbook Pro/Air with Intel processor or Apple M1/M2 chip
- 100W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops & ultrabooks incl. Lenovo X1, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, Zbook & MacBook Pro 16
- FULL FEATURE DOCK: USB-C Dock w/ 3 video outputs (DP & HDMI), 100W PD, 4x USB-A & 1x USB-C, gigabit ethernet, headset port, separate speaker/mic audio ports, K-Slot for security & 1m/3.3' USB-C cable
- MORE USB DEVICE PORTS: USB 3.1 Gen 1 Docking Station has 5x USB 3.0 5Gbps Hub (4x USB-A, 1x USB-C), w/ 1x BC 1.2 (1.5A) fast charge always-on smartphone port, with or without laptop connection to dock
- EASY DEPLOYMENT: This universal USB Type-C port replicator supports Windows, macOS, Chrome OS & Ubuntu and includes DisplayLink update utilities for hassle-free IT management
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
[custom-specifications]
Specifications | |
---|---|
Manufacturer | StarTech.com |
Manufacturer Part Number | DK30CH2DEP |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD |
Packaged Quantity | 1 |
Product Type | Docking Station | Technical Information |
Connectivity Technology | Wired |
Device Supported | Notebook/Tablet PC | Interfaces/Ports |
Host Interface | USB 3.0 Type C |
Audio Line Out | Yes |
Total Number of USB Ports | 6 |
Number of USB 3.0 Ports | 6 |
USB Type-C | Yes |
USB Type-C Detail | 2 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female |
Network (RJ-45) | Yes |
Number of DisplayPort Outputs | 2 |
DisplayPort | Yes |
Headphone/Microphone Combo Port | Yes |
Microphone | Yes |
Number of HDMI Outputs | 1 |
HDMI | Yes |
Thunderbolt | Yes | Software |
Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,ChromeOS 55+,Ubuntu 18.04 | Power Description |
Maximum Power Supply Wattage | 100 W | Physical Characteristics |
Product Color | Black,Silver |
Height | 1.30" (33.02 mm) |
Width | 3.20" (81.28 mm) |
Depth | 10.60" (269.24 mm) |
Weight (Approximate) | 385.6 g | Miscellaneous |
Package Contents |
|
Compatibility |
|
Environmentally Friendly | Yes |
Country of Origin | Taiwan |
TAA Compliant | Yes | Warranty |
Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
