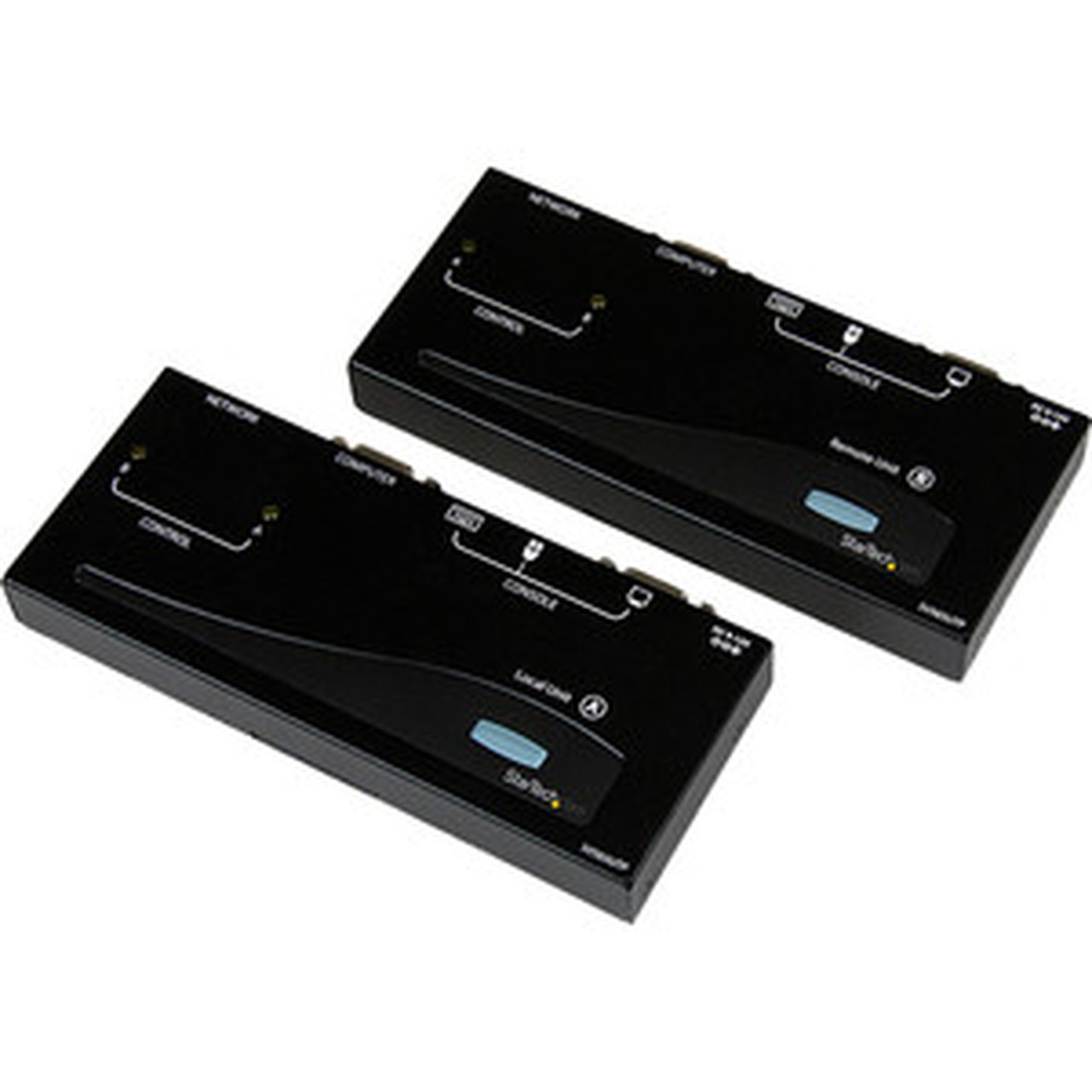

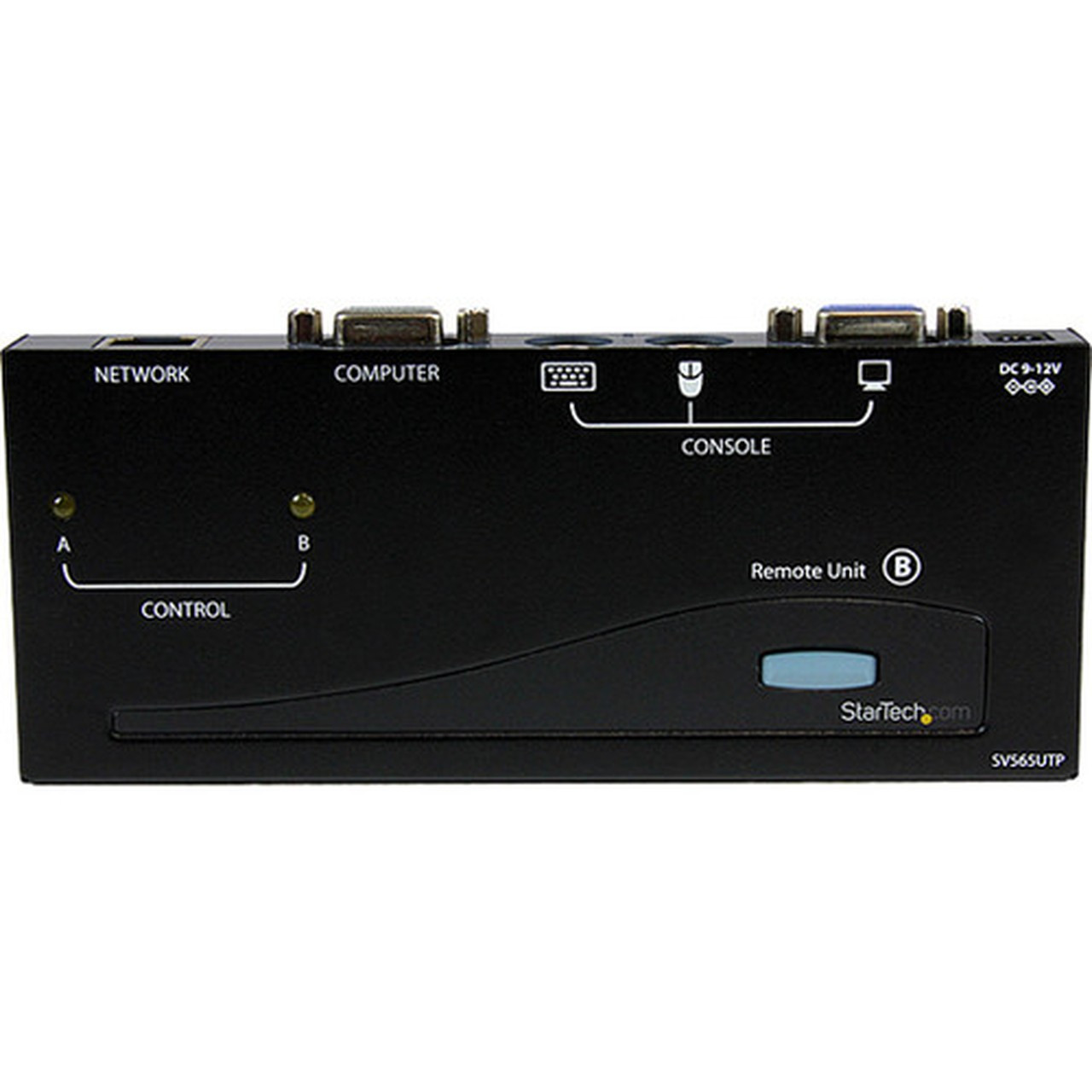

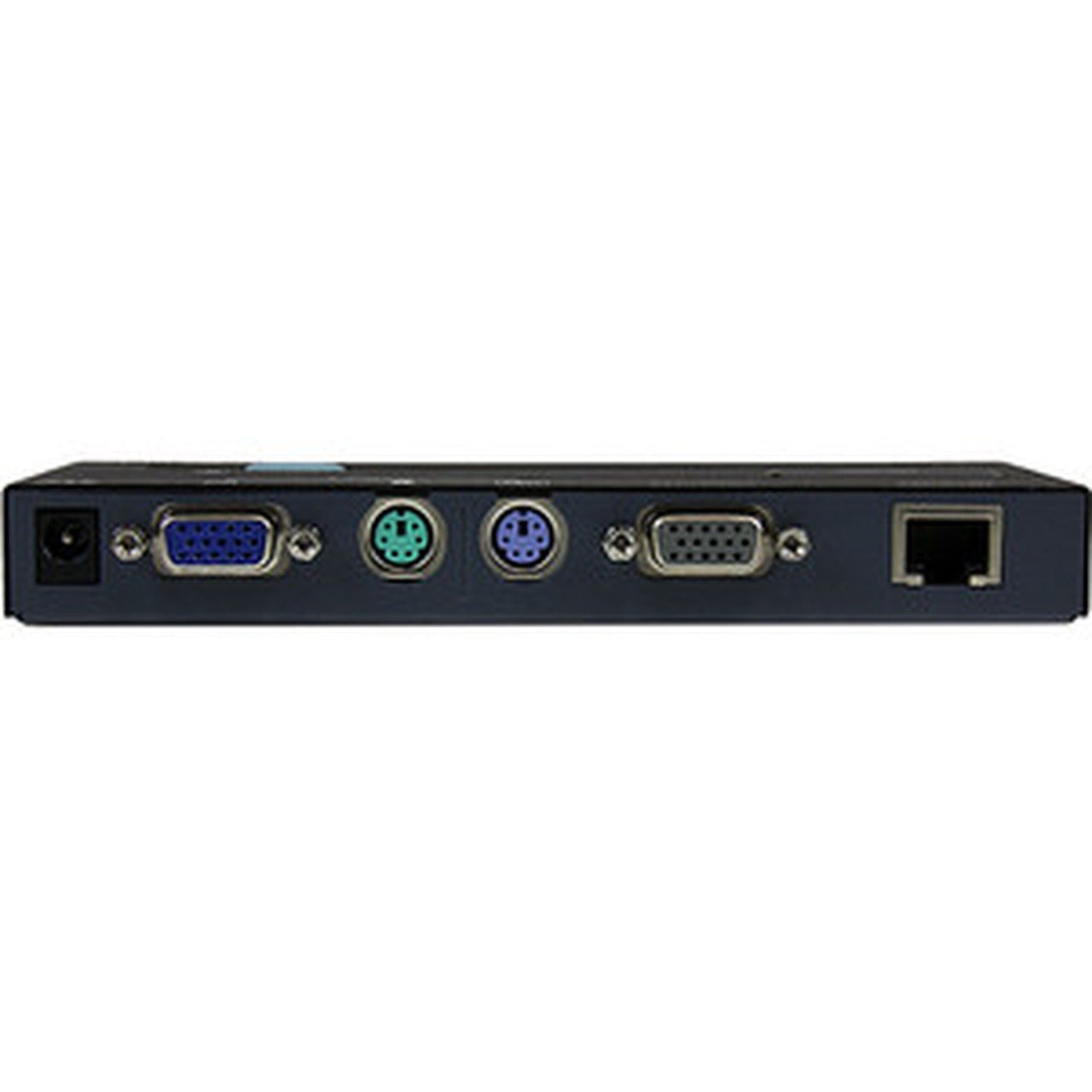

StarTech.com PS/2 + USB KVM Console Extender - cat5 extender - external - up to 150 m - 1 Computer(s) - 1 (SV565UTP)

(No reviews) Write a Review
$287.86
SKU: SV565UTP
UPC: 65030812887
Availability: Toronto
Weight: 2.36 LBS
Adding to cart… The item has been added
  • Can be used with a single computer or connected to an existing KVM switch
  • Easy installation using industry-standard UTP network cable
  • Supports a max. extension distance of 500 ft (150 m)
  • Supports auto-switching between host and remote users or dedicated control
  • Compatible with USB and PS/2 computers at the host and remote locations (PS/2 keyboard and mouse required for remote console)
  • Intuitive hotkey commands
    Marketing Information:

    The SV565UTP USB PS2 KVM console extender lets you control a server, computer or multiple computers (connected through KVM switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away.

    Use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

    For added convenience, the Console/KVM extender supports both USB and PS/2 computer connections, and is compatible with any brand of KVM Switch.


    Connectivity Technology: Wired
    KVM Technology: Analog
    Number of Computers Supported: 1
    Maximum Operating Distance: 500 ft (152400 mm)
    Graphic Mode: VGA
    Maximum Video Resolution: 1024 x 768
    Network (RJ-45): Yes
    PS/2 Port: Yes
    VGA: Yes
    Number of VGA Ports: 4
    Number of Network (RJ-45) Ports: 2
    Number of PS/2 Ports: 4
    Input Voltage:
    • 120 V AC
    • 230 V AC

    Input Voltage Range: 110 V AC - 240 V AC
    Form Factor: Desktop
    Package Contents:
    • 1 x Local Unit
    • 1 x Remote Unit
    • 2 x Packs Rubber Feet
    • 2 x Power Adapters
    • 1 x Instruction Manual

    Environmentally Friendly: Yes
    Environmental Certification:
    • RoHS
    • REACH
    • WEEE

    TAA Compliant: Yes
    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV565UTP
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: PS/2 USB KVM Console Extender
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Maximum Operating Distance: 500 ft (152400 mm)
Video
Graphic Mode: VGA
Maximum Video Resolution: 1024 x 768
Interfaces/Ports
Network (RJ-45): Yes
PS/2 Port: Yes
VGA: Yes
Number of VGA Ports: 4
Number of Network (RJ-45) Ports: 2
Number of PS/2 Ports: 4
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC

Input Voltage Range: 110 V AC - 240 V AC
Physical Characteristics
Form Factor: Desktop
Miscellaneous
Package Contents:
  • 1 x Local Unit
  • 1 x Remote Unit
  • 2 x Packs Rubber Feet
  • 2 x Power Adapters
  • 1 x Instruction Manual

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
